Synology RS2825RP+ 16-Bay NAS with 16 × HAT5300-8T (128 TB)

Synology RS2825RP+ – 16-Bay Rack NAS with 16 × HAT5300-8T (128 TB raw)

📌 General presentation

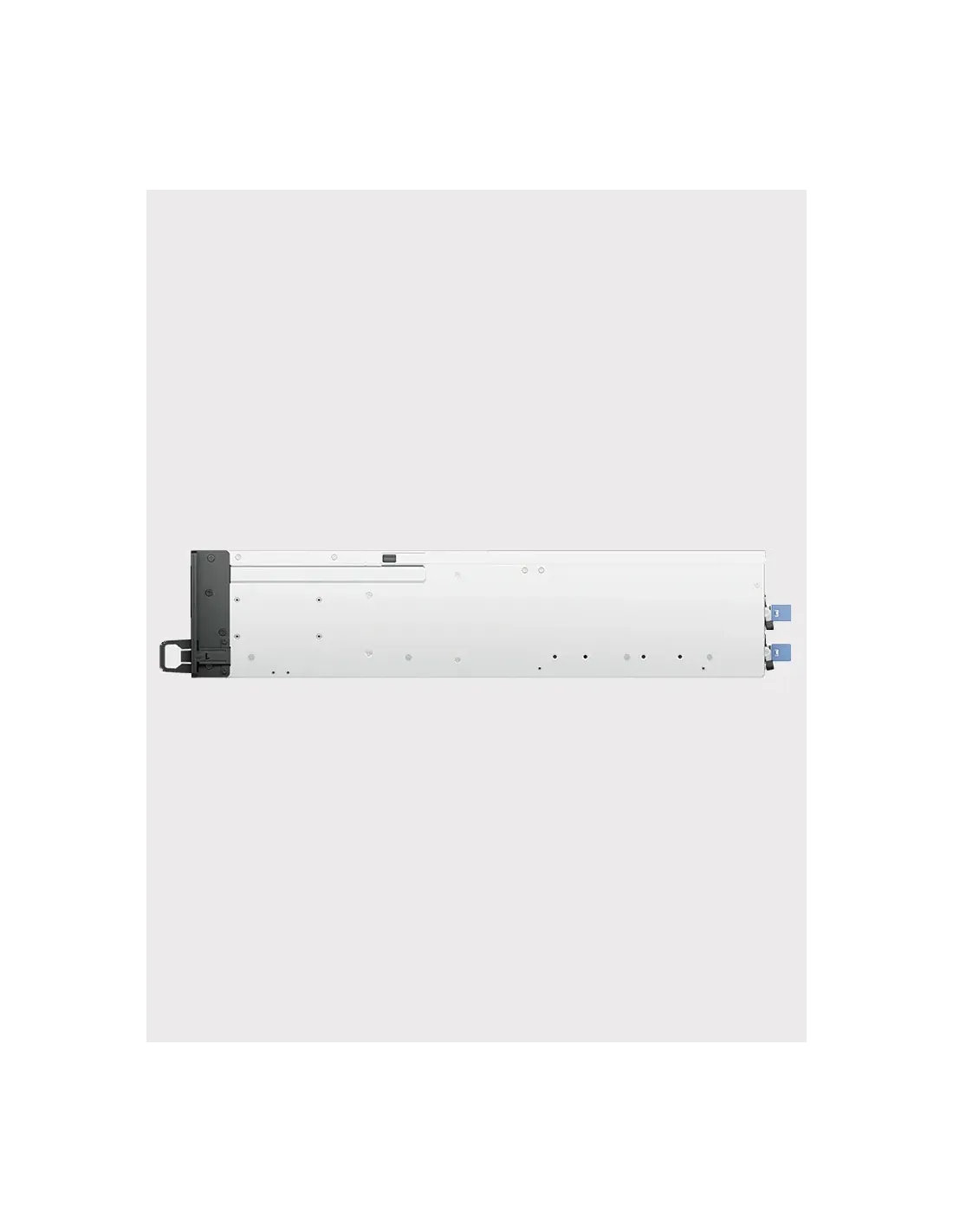

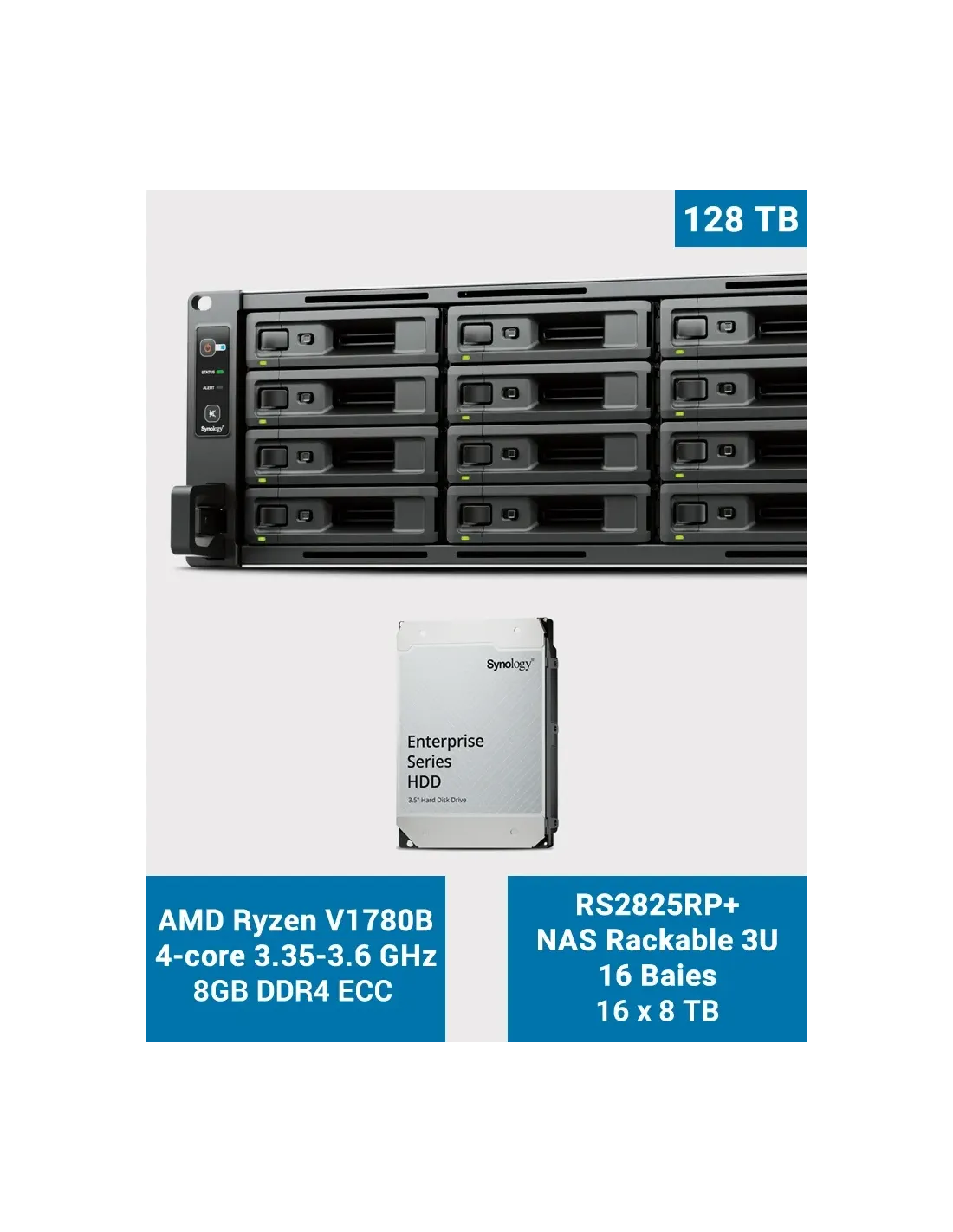

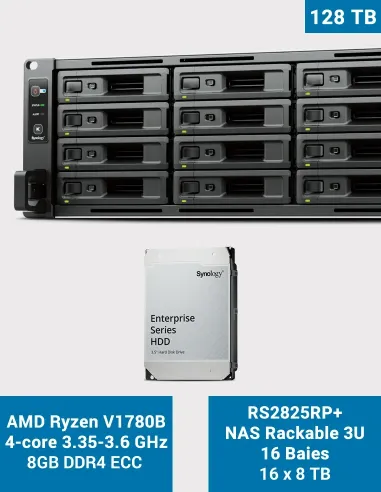

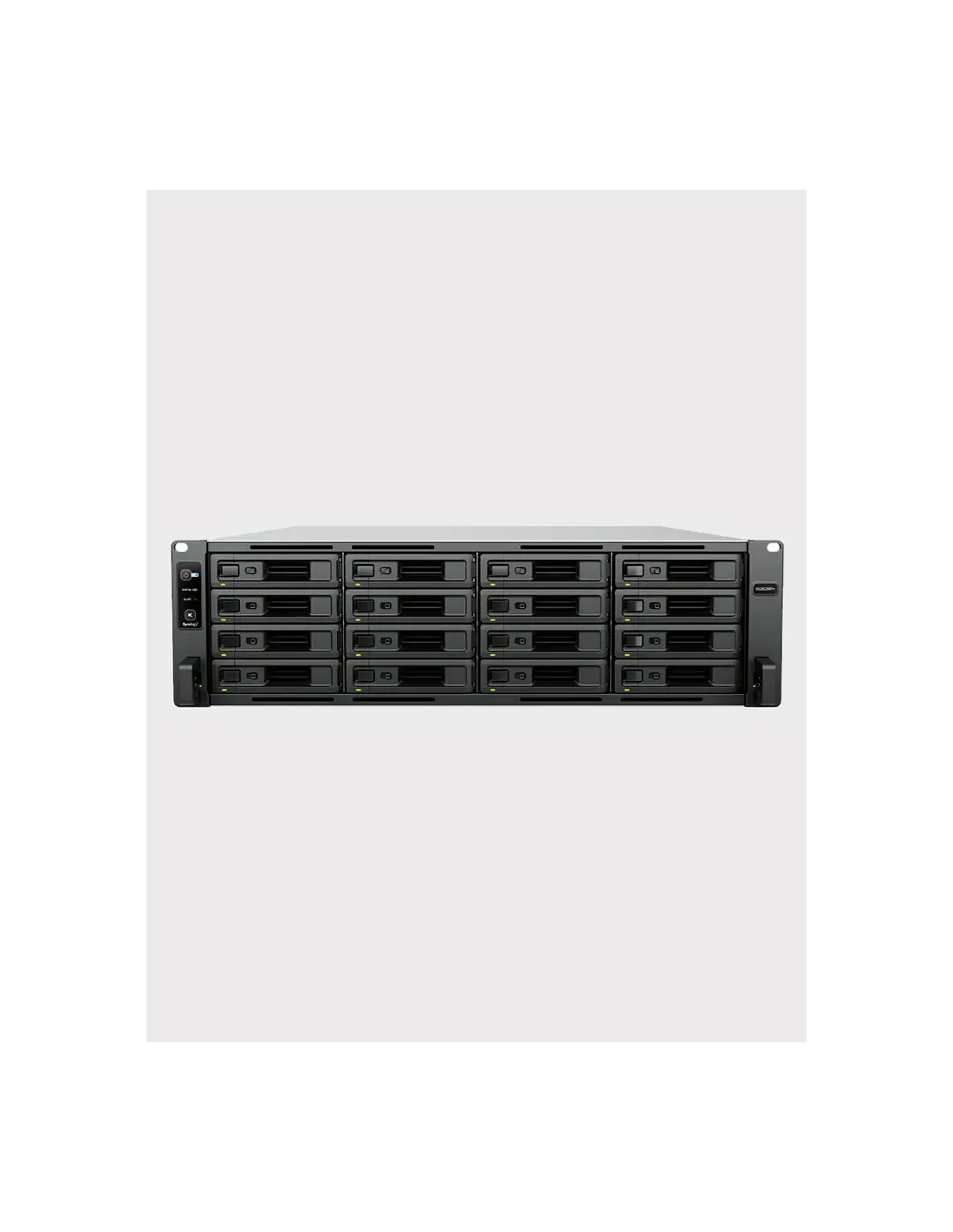

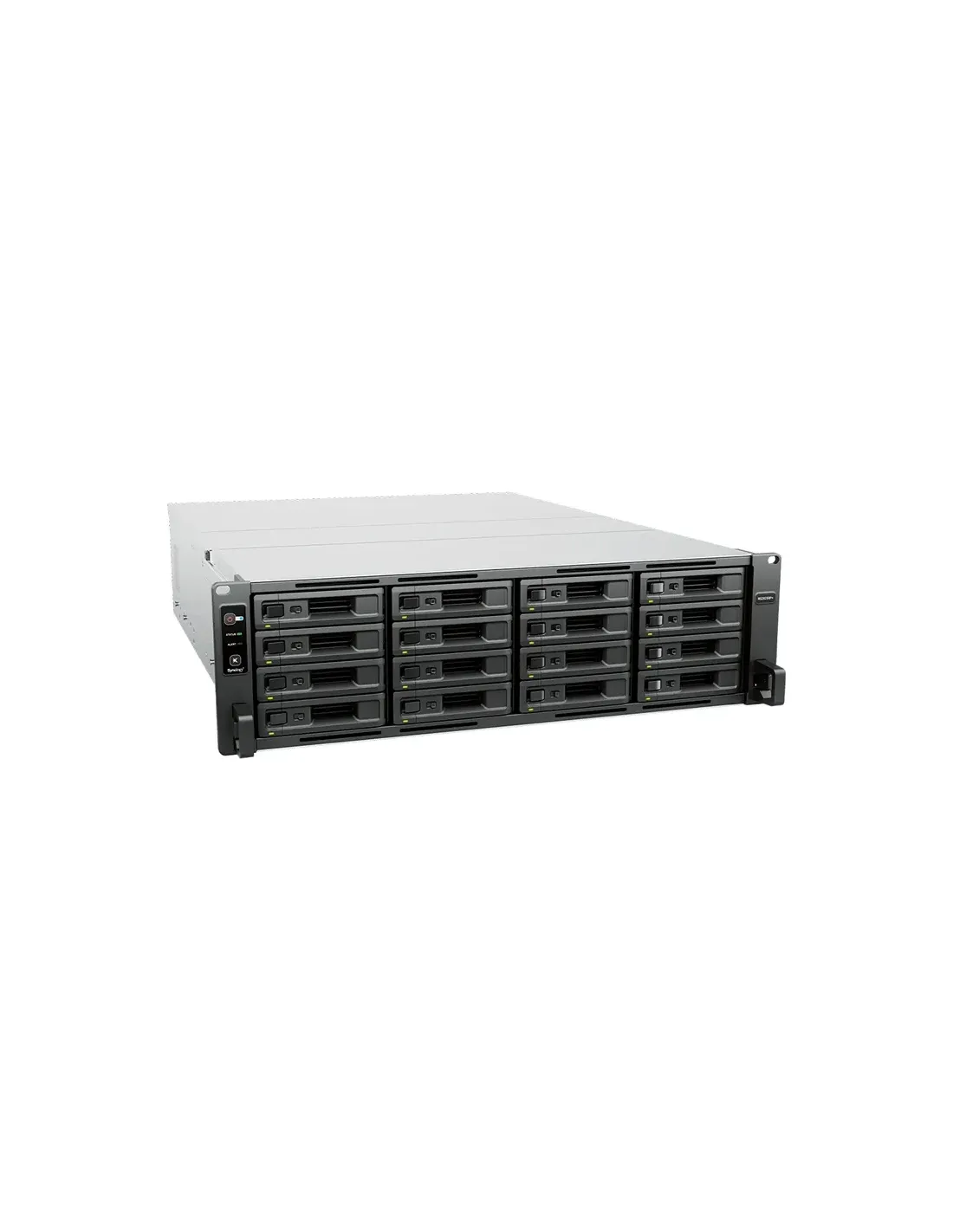

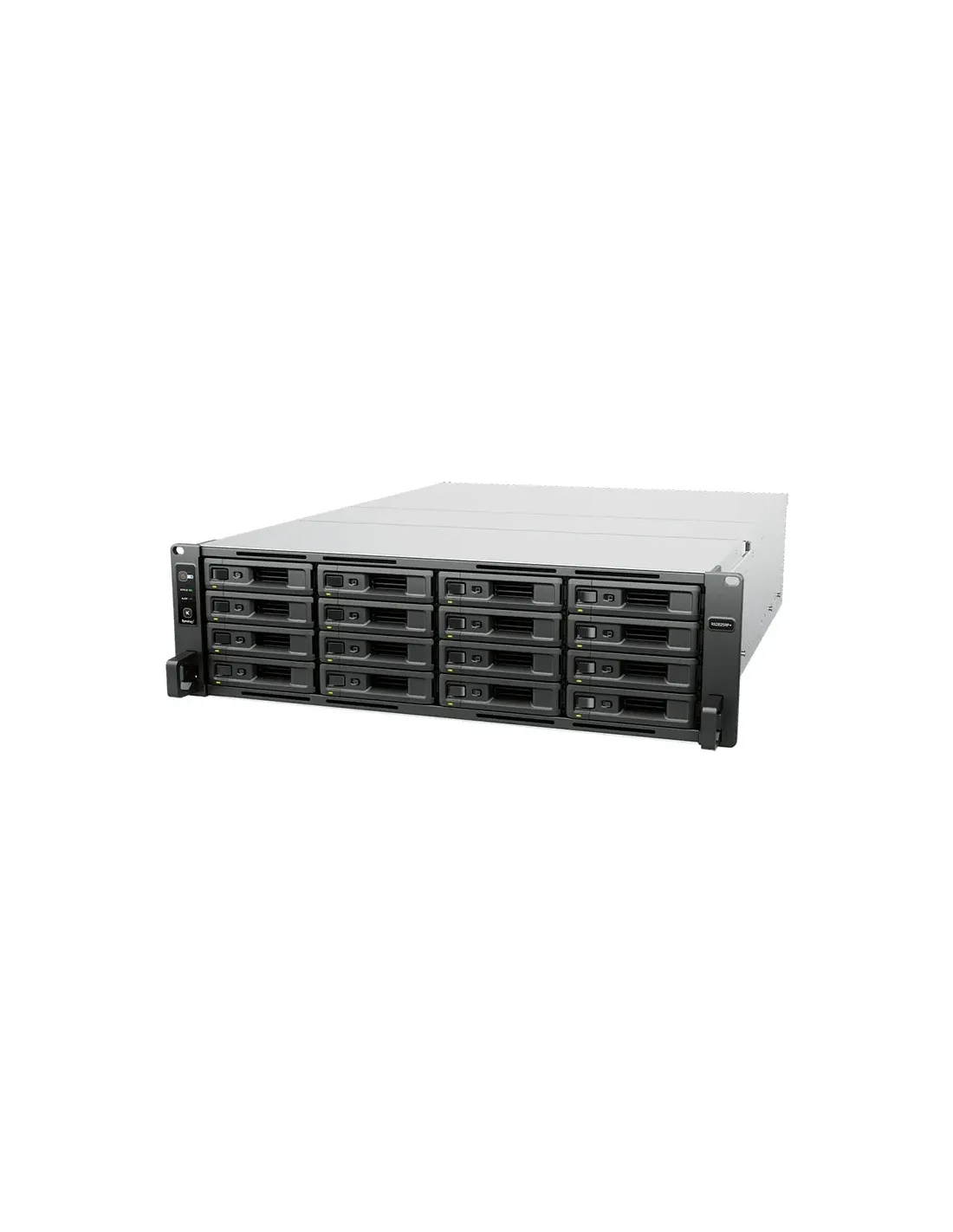

The Synology RS2825RP+ is a professional 3U rackmount NAS delivered pre-equipped with 16 Synology HAT5300-8T drives, providing a total raw capacity of 128 TB.
Powered by an AMD Ryzen V1780B quad-core CPU, 8 GB DDR4 ECC (expandable to 32 GB) and dual 550 W redundant PSUs, it delivers enterprise-level performance and high reliability for mission-critical operations.

🔧 Key features

• CPU: AMD Ryzen V1780B – 4 cores @ 3.35 GHz (3.6 GHz turbo)

• RAM: 8 GB DDR4 ECC (up to 32 GB)

• Storage: 16 × HAT5300-8T (128 TB raw)

• Expansion: up to 28 bays with RX1225RP

• Networking: 1 × 10 GbE RJ45 + 2 × 1 GbE RJ45

• PCIe slot: 1 × PCIe 3.0 x8 (electrical x4)

• Power: 2 × 550 W redundant PSUs

• Performance: up to 3,519 MB/s read, 1,790 MB/s write

🔐 Reliability & security

• Enterprise-grade HAT5300 HDDs (7200 rpm, MTBF 2.5 M hrs, 5-year warranty)

• Firmware optimised for DSM integration

• Redundant PSUs with automatic failover

• Btrfs file system with snapshot protection

• ECC memory for data accuracy

• High availability cluster support

💼 Recommended use cases

• Enterprise data storage and backup

• Virtualisation and high-load applications

• Private cloud and archiving

• File sharing and media workflows

• Surveillance and large-scale deployments

📦 Box contents

• 1 × Synology RS2825RP+

• 16 × Synology HAT5300-8T HDDs (preinstalled)

• 2 × built-in redundant PSUs

• Rail kit & screws

• Power cables

• Quick installation guide

📊 Technical specifications

✅ Warranty & support

• NAS: 3 years (extendable to 5)

• HAT5300 drives: 5 years
