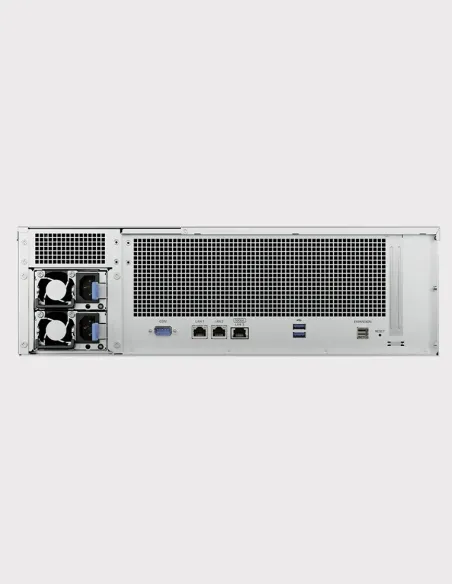

Synology RS2825RP+ 16-Bay Rack NAS with Redundant Power

In stock
€3,543.60
VAT included Delivered within 24/48h

Synology RS2825RP+ rack NAS, 16 bays (diskless), redundant power, 10GbE built-in, expandable to 28 bays.

Variants
Synology RS2825RP+ – 16-Bay Rack NAS with Redundant Power
Synology RS2825RP+ – 16-Bay NAS with 16 × HAT3300-2T (32 TB)
Synology RS2825RP+ – 16-Bay NAS with 16 × HAT3300-4T (64 TB)
Synology RS2825RP+ 16-Bay NAS with 16 × HAT3300-6T (96 TB)
Synology RS2825RP+ 16-Bay NAS with 16 × HAT3300-8T (128 TB)
Synology RS2825RP+ 16-Bay NAS with 16 × HAT3300-12T (192 TB)
Synology RS2825RP+ 16-Bay NAS with 16 × HAT3300-16T (256 TB)
+11
+11
Synology RS2825RP+ 16-Bay NAS with 16 × HAT5300-4T (64 TB)
Synology RS2825RP+ 16-Bay NAS with 16 × HAT5300-8T (128 TB)
Synology RS2825RP+ 16-Bay NAS with 16 × HAT5300-12T (192 TB)
Synology RS2825RP+ 16-Bay NAS with 16 × HAT5300-16T (256 TB)
Synology RS2825RP+ 16-Bay NAS with 16 × HAT5300-20T (320 TB)
Synology RS2825RP+ 16-Bay NAS with 16 × SSD SAT5200-480G (7.68 TB)
Synology RS2825RP+ 16-Bay NAS with 16 × SSD SAT5200-960G (15.36 TB)
Synology RS2825RP+ 16-Bay NAS with 16 × SSD SAT5200-1920G (30.72 TB)
Synology RS2825RP+ 16-Bay NAS with 16 × SSD SAT5200-3840G (61.44 TB)
Synology RS2825RP+ 16-Bay NAS with 16 × SSD SAT5200-7000G (112 TB)

You might also like



Synology RS2825RP+ – 16-Bay Rack NAS with Redundant Power

📌 General presentation

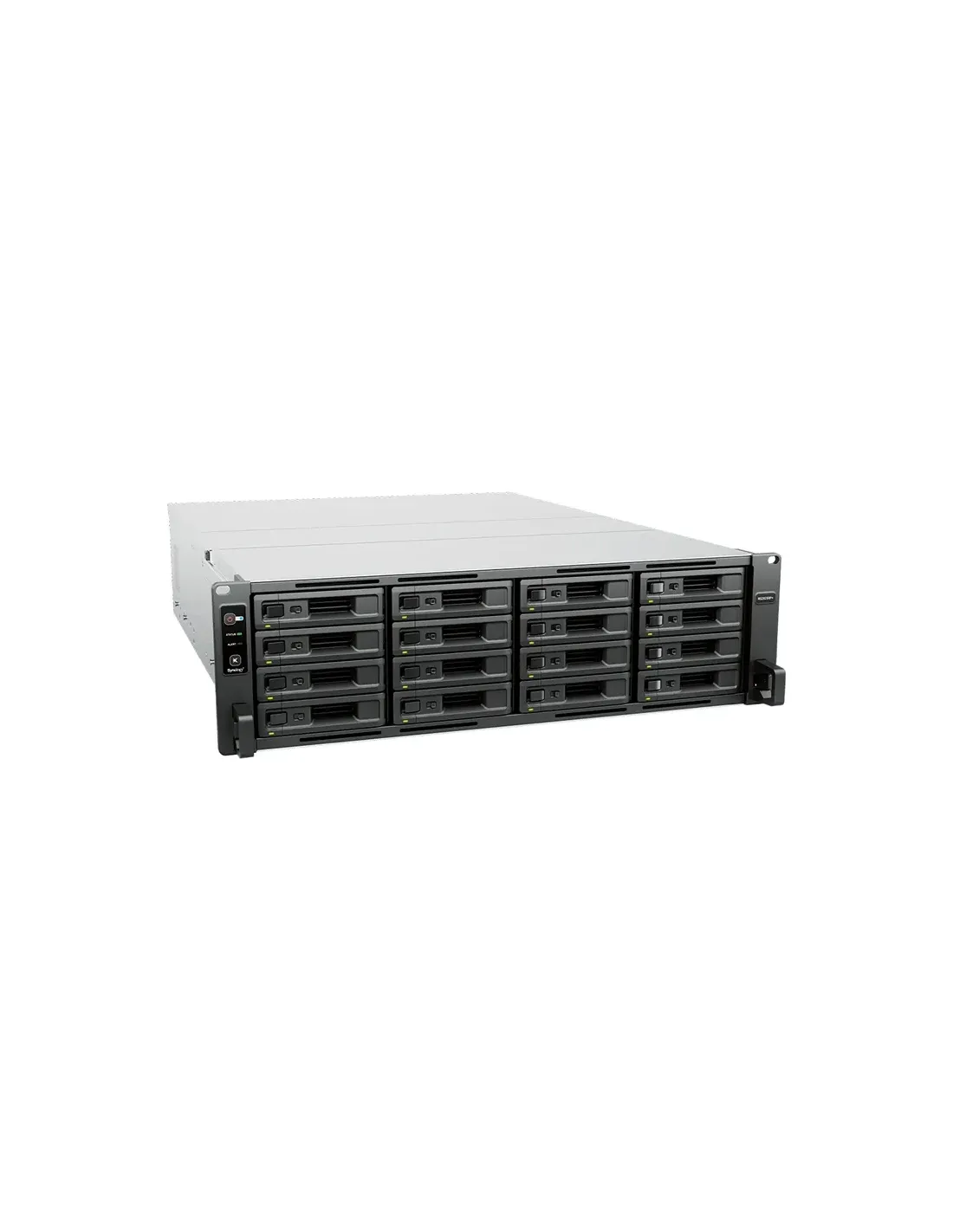

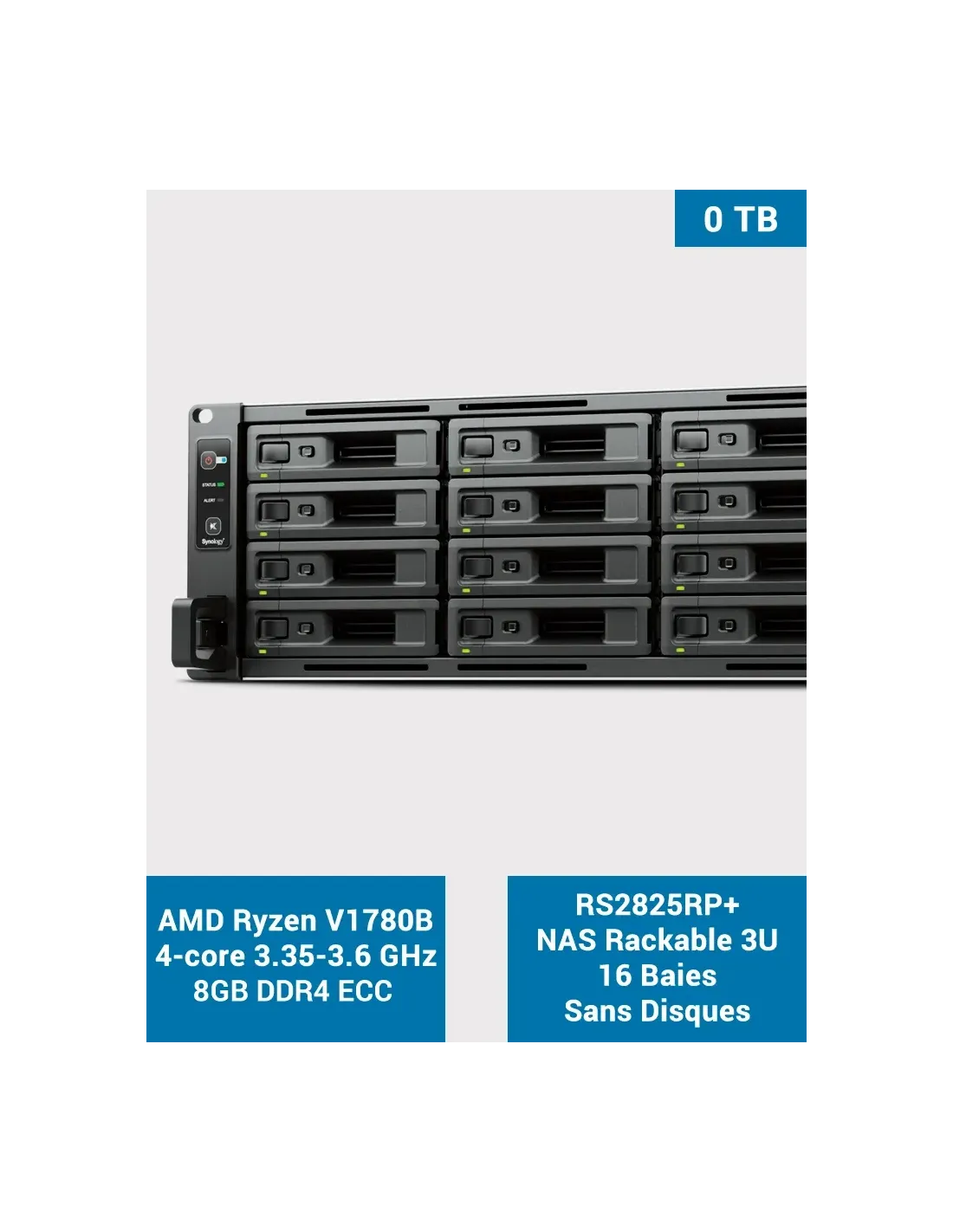

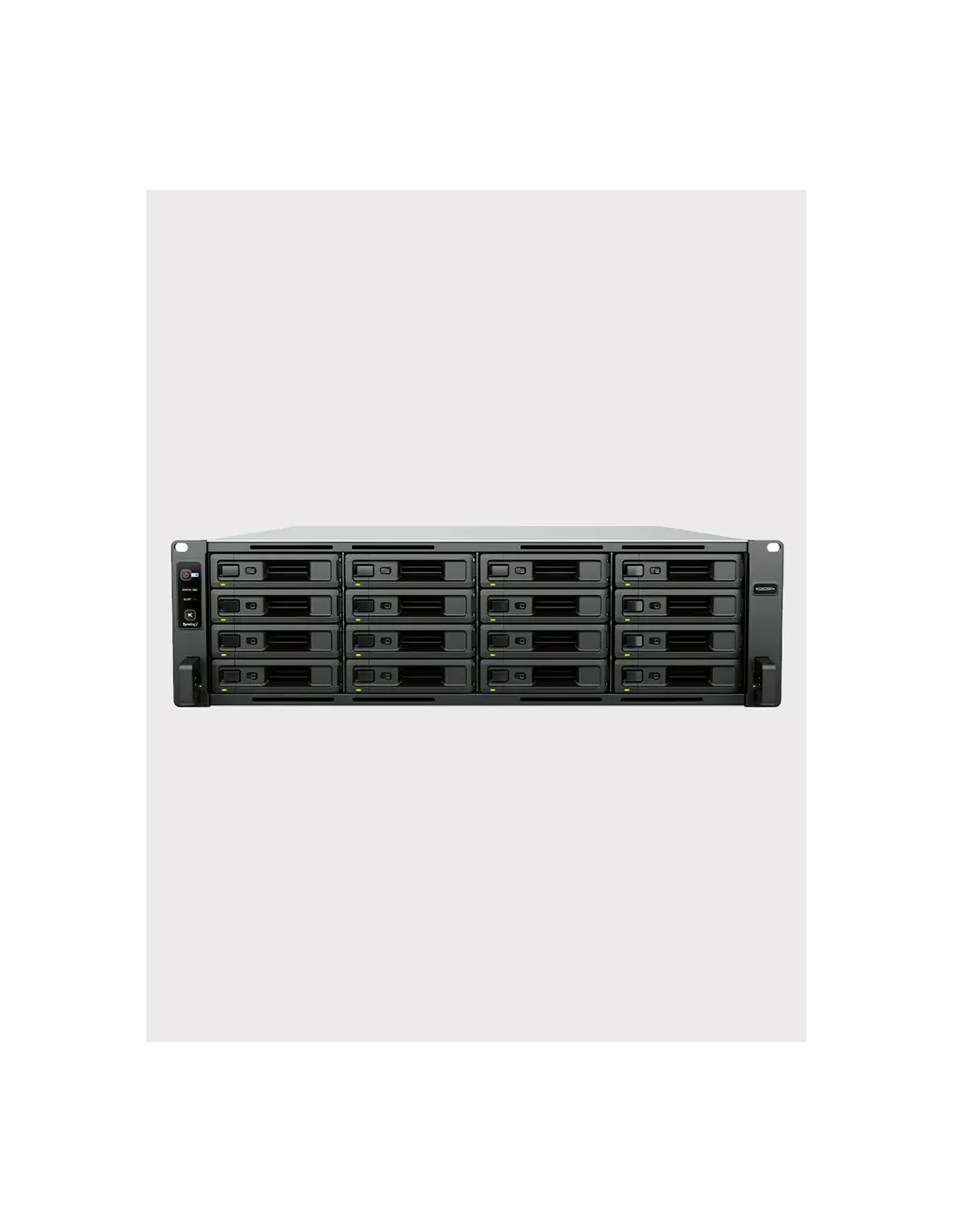

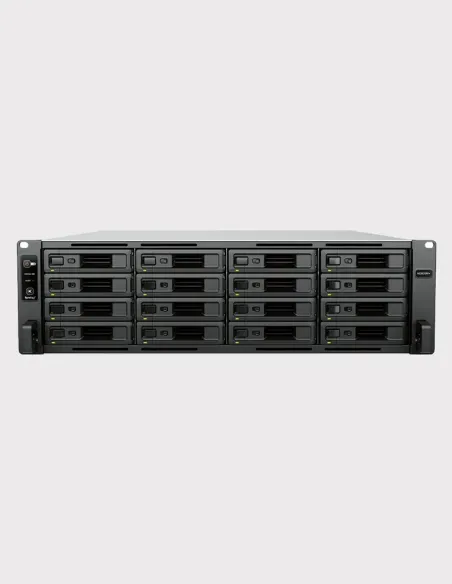

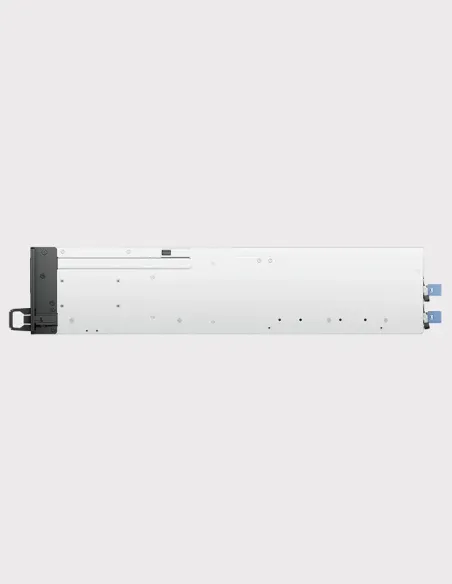

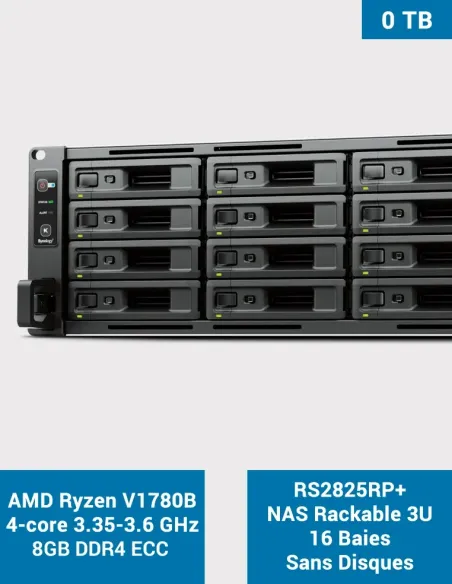

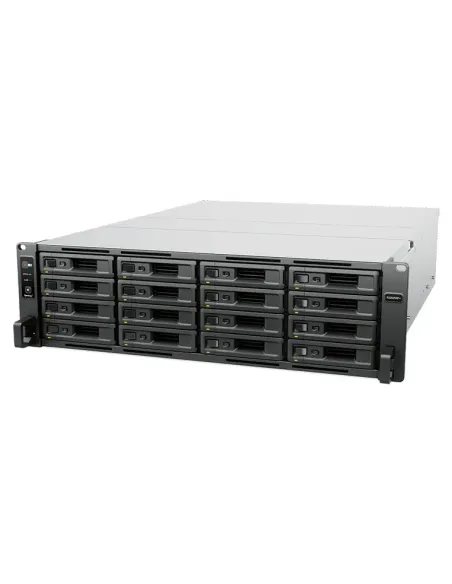

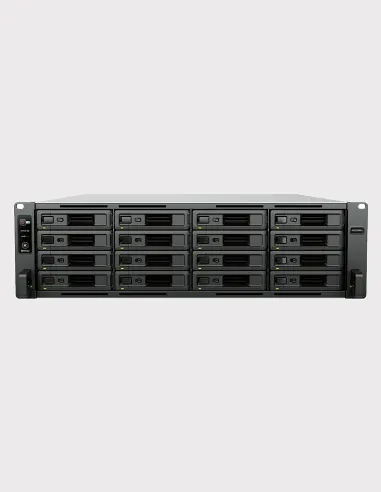

The Synology RS2825RP+ is a 3U rack NAS with 16 hot-swap SATA bays (3.5″ / 2.5″), built for critical enterprise environments.
It features an AMD Ryzen V1780B quad-core processor with DDR4 ECC memory and dual redundant PSUs, ensuring high performance, reliability, and scalability.

🔧 Key features

  • CPU: AMD Ryzen V1780B – 4 cores @ 3.35 GHz (3.6 GHz turbo)

  • RAM: 8 GB DDR4 ECC (up to 32 GB)

  • Storage: 16 × SATA 3.5″ / 2.5″ bays (diskless)

  • Expansion: up to 28 bays with RX1225RP

  • Network: 1 × 10GbE RJ45 + 2 × 1GbE RJ45

  • Expansion slot: 1 × PCIe 3.0 x8 (electrical x4)

  • Power: 2 × 550 W redundant PSUs

  • Performance: up to 3,519 MB/s read, 1,790 MB/s write

🔐 Reliability & security

  • Dual redundant power supplies with failover

  • ECC memory for data integrity

  • Btrfs file system with snapshots

  • Hardware AES-NI encryption

  • High availability cluster support

💼 Recommended use cases

  • Centralised enterprise storage

  • High-performance virtualisation & containers

  • Backup & recovery solutions

  • Large-scale surveillance deployment

  • High availability infrastructures

📦 Box contents

  • 1 × Synology RS2825RP+ (diskless)

  • 2 × built-in redundant PSUs

  • Rail kit & screws

  • Power cables

  • Quick installation guide

📊 Technical specifications

Component Detail
CPU AMD Ryzen V1780B – 4 cores @ 3.35 GHz (3.6 GHz turbo)
RAM 8 GB DDR4 ECC (up to 32 GB)
Drive bays 16 × SATA hot-swap 3.5″ / 2.5″
Max NAS capacity up to 28 bays with RX1225RP
Network 1 × 10GbE RJ45 + 2 × 1GbE RJ45
PCIe slot 1 × PCIe 3.0 x8 (electrical x4)
Supported RAID SHR, Basic, JBOD, RAID 0/1/5/6/10
Cooling 2 × redundant fans
Power 2 × 550 W redundant PSUs
Dimensions / weight 132.3 × 482 × 656.5 mm / ~18.2 kg

✅ Warranty & support

  • NAS: 3 years (extendable to 5 years)

Model
Synology RackStation RS2825RP+
CPU type
AMD Ryzen V1780B
Number of CPU sockets
1
Number of Cores / Threads
4C / 4T
CPU frequency
3.35 GHz - Burst 3.6 Ghz
Memory capacity
8GB
Memory type
DDR4 ECC UDIMM
Number of memory slots
2 slot
Maximum memory capacity
32 GB (16 GB x 2)
Hardware Encryption Engine (AES-NI)
Oui
Number of disk bays
16
Maximum number of disk bays with extension
16 + 12 (RX1225RP x 1)
M.2 drive slot
No
Compatible disc type
2.5" SATA SSD
3.5" SATA HDD
Hotswap disk
Oui
Installed disk capacity
0TB
Disk model installed
None
Disk interface
Serial ATA 6Gb/s (SATA Revision 3)
Supported RAID type
JBOD
RAID 0
RAID 1
RAID 5
RAID 6
RAID 10
SHR
Supported file system
BTRFS
EXT3
EXT4
FAT
HFS+
NTFS
Number of expansion ports
1 MiniSAS-HD port
Scalable
Yes
PCIe Expansion
1 x Gen3 x8 slot (x4 link)
Number of USB Ports
2 x USB 3.2 Gen 1*
Number of network ports
1 x 10GbE (RJ45)
2 x 1GbE (RJ45)
Size (Height x Width x Depth)
132.3 mm x 482 mm x 656.5 mm
Weight
17.3 kg
Sound level
49.6 dB(A)
Mains input voltage
100V to 240V AC
Power frequency
50/60Hz, single phase
Form Factor
Rack 3U
Color
Black
Brand
Synology
RS2825RP+NU
4711174725663
RS2825RP+NU
