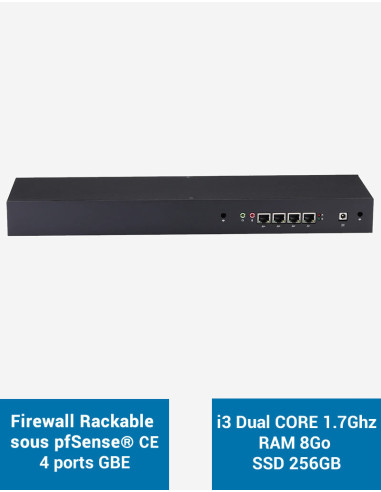

Firewall R3x I3 4005U Rack 1U under pfSense® CE 4 ports 8GB SSD 250GB
    Qotom

    Firewall R3x I3 4005U Rack 1U under pfSense CE 4 ports 8GB SSD 250GB

    €558.00
    Delivered within 24/48h

    Firewall R3x Rackmount 1U 4 ports, installed with pfSense® CE
    Installation benefit of pfSense® CE 2.6.x (Community Edition) included, Firewall ready to use.
    Intel i3 4005U Dual Core 1.7 Ghz Processor - 8GB RAM - 250GB SSD Storage for OS
    SATA SSD disk support and WIFI card support
    4 customizable Gigabit ports (WAN / LAN / DMZ / OPT) - AES-NI support
    Fanless low consumption case (15W), no noise
    Small footprint - EU format power supply

    Quantity
      In stock

    R3X Profile Rackmount Firewall

    R3x Rackmount Appliance / Firewall

    pfSense or OPNsense appliance

    Windows/Linux Mini PC

    IoT appliance

    3CX appliance

    Rackmount appliance 1U 4 Gigabit ports



    The R3x Hardware Appliance is a 19″ 1U rackmount enclosure, Firewall with an Intel x86 architecture and compatible with all Firewall or IoT OS on the market. You can start the box on a USB key and install …

    Compatible OS Firewall:

    • pfSense,
    • OPNsense,
    • Untangle,
    • IPFire,
    • Sophos,
    • Linux iptables,

    Compatible OS Microsoft / Linux:

    • Windows 10,
    • FreeBSD,
    • Ubuntu,
    • Debian,
    • CentOS
    • Red Hat,

    Compatible OS Router / IoT / Others:

    • VyOS,
    • 3CX,
    • OpenWrt,
    • Windows 10 IoT,
    • RIOT,
    • Contiki NG,
    • FreeRTOS

    Celeron® / i3 / i5 / i7

    2 or 4 core / 1.4 Ghz to 3.0 Ghz

    DDR3L SO-DIMM 1333/1600Mhz

    2GB / 4GB / 8GB

    4 port

    GIGABIT RJ45

    Consolidate

    1 Mini-PCI Express slot

    1 Disk / SSD 2.5″

    1 SIM + mPCIe slot

    1 2230 M2 slot

    Flexible PCIe expansion

    HDMI output

    Auto-boot Jumper

    The R3x box includes several mPCIe slots to support the installation of a WIFI card or a 4G LTE card and allow the backup of the main internet link.

    HDMI connector to connect a screen.

    Carte Intel® HD Graphics

    A jumper on the motherboard allows the box to start automatically. This allows during a power outage to automatically start the Appliance when the power supply is restored. Important for security systems, monitoring, etc.

    VESA-compatible

    Blank packaging

    Power supply

    To allow the boxes to be used easily behind a screen, a VESA system is delivered with the screws.

    The packaging box is free of any inscription. No identification possible.

    The box can be delivered with a power cord for each country:

    • EU
    • CH
    • UK
    • AU
    • US
    • CN
    Internal R5 Firewall

    Quality internal card equipped :

    • 1 x DDR3L-SODIMM 1600Mhz memory slot
    • Memory capacity 2GB / 4GB / 8GB Max
    • 1 Connector + SATA Power Supply
    • 1 x mPCIe slot for SSDs from 16GB to 2 TB,
    • 1 x mPCIe slot for WIFI card (Full size)
    • 1 x mPCIe slot for 4G card (Half Size)
    • 1x SIM Slot
    • 4 x Intel I211-AT Gigabit LAN
    • 1 x HD Video (HDMI)
    • 1 x RS232 serial port (DB9 COM1)
    • 2 x USB2.0, 2 x USB3.0
    • HDD LED, Power LED
    • 1 x Integrated power supply 220/240V

    Environmental characteristics:

    • Aluminum Alloy Case
    • Size 440 x 112 x 44mm
    • Weight 1.95 Kg
    • Cooling Type: Fanless
    • Operating temperature: 0°C – 50° Celsius
    Environmental characteristics

    Product Details

    R3I34005U48250P

    Data sheet

    Brand
    Qotom
    Model
    R3x
    Operating system
    pfSense® CE
    CPU type
    Intel® Core™ i3-4005U
    Number of Cores / Threads
    2C / 4T
    CPU frequency
    1.7 GHz
    Memory capacity
    8GB
    Memory type
    DDR3L SODIMM
    Number of memory slots
    1 slot
    Maximum memory capacity
    8GB
    Hardware Encryption Engine (AES-NI)
    Oui
    Number of disk bays
    1
    M.2 drive slot
    No
    Compatible disc type
    miniPCIe mSATA
    Hotswap disk
    No
    Installed disk capacity
    256GB
    PCIe Expansion
    1 x mSATA + 1 x miniPCI express (one with SIM socket)
    Number of USB Ports
    2 x USB 2.0
    2 x USB 3.0
    Number of network ports
    4 x 1GbE (RJ45)
    Ethernet Chipset
    Intel i211AT
    WIFI / LTE card
    None
    SIM slot
    Standard SIM
    Output video
    1 x HDMI
    Chipset video
    Intel HD 4400
    Console Port
    DB9
    Size (Height x Width x Depth)
    44 mm x 440 mm x 112 mm
    Weight
    0.95Kg
    Mains input voltage
    100V to 240V AC
    Power frequency
    50/60Hz, single phase
    Manufacturer's warranty
    1-Year hardware warranty
    Audio
    No
