Synology DS1525+ 5-Bay NAS with 5× Synology HAT3300 4TB Drives (20 TB)

In stock
€1,166.00
Delivered within 24/48h

Professional NAS with 5 preinstalled Synology HAT3300 drives (4 TB each). Fully ready to use, perfect for secure backups, file sharing, and virtualisation.

You might also like



Synology DS1525+ – 5-Bay NAS with 5×4 TB HAT3300

General Overview

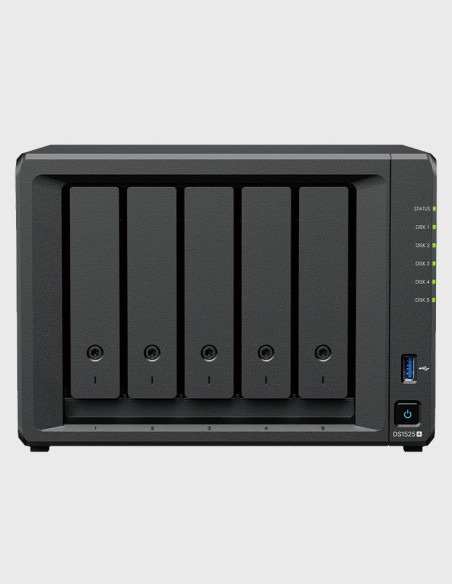

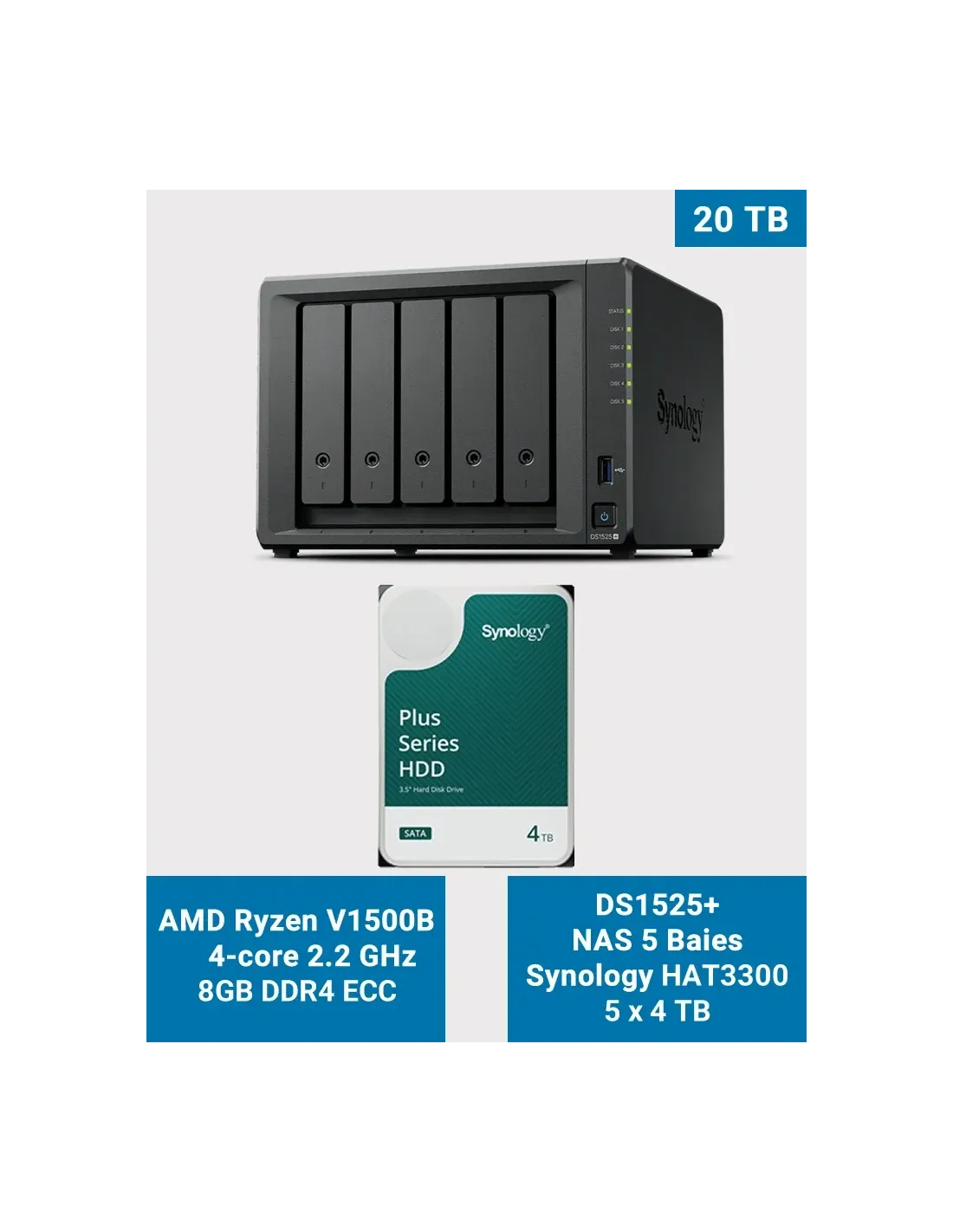

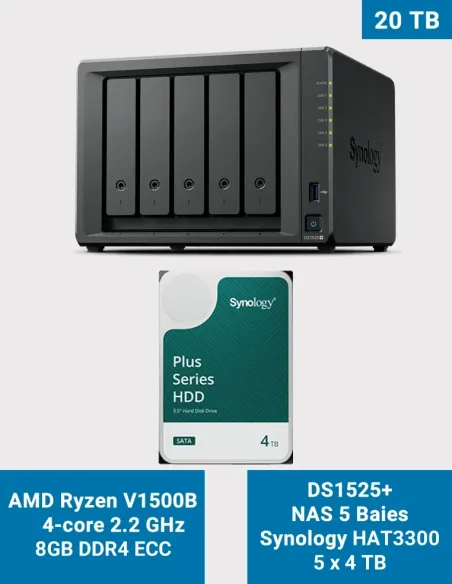

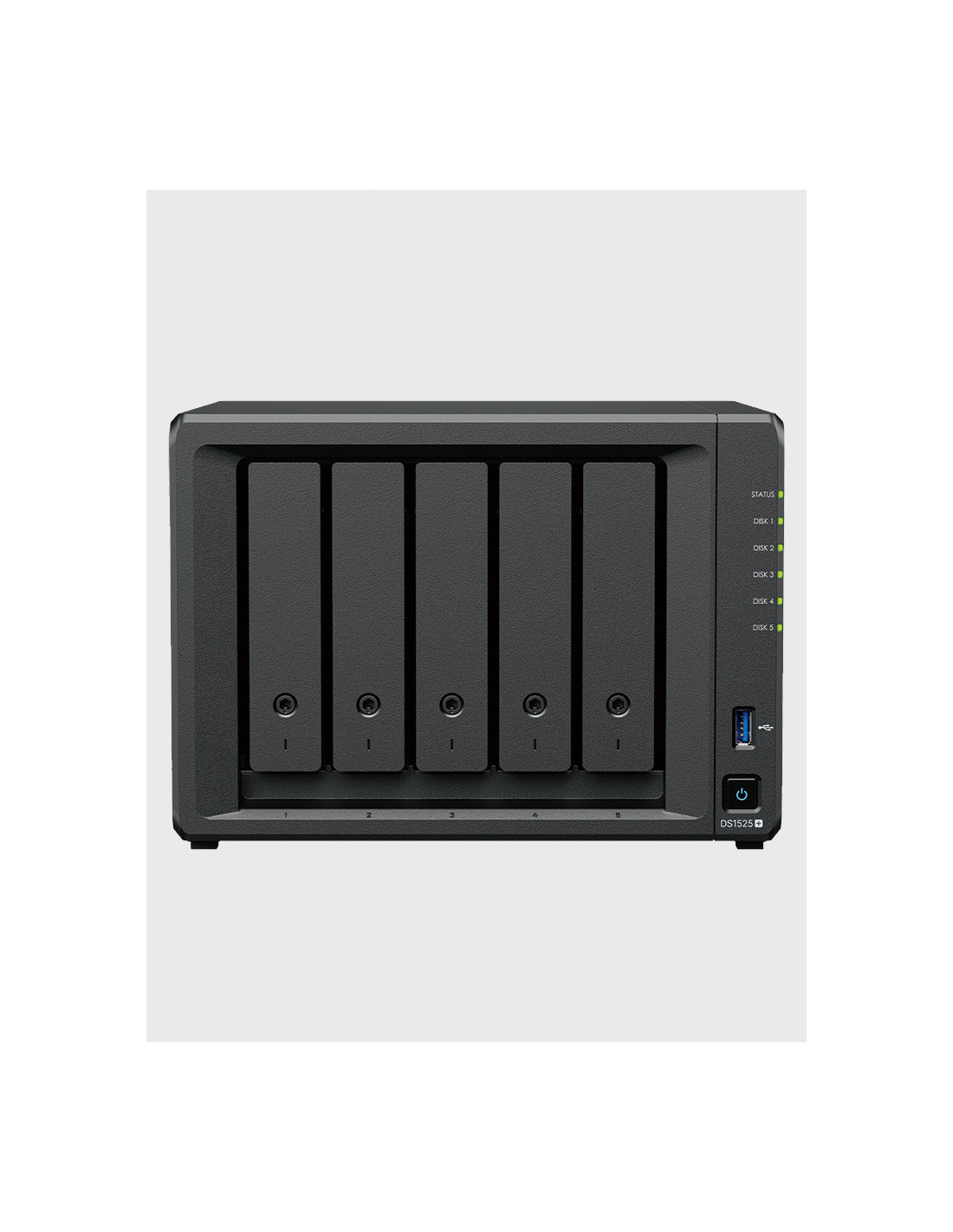

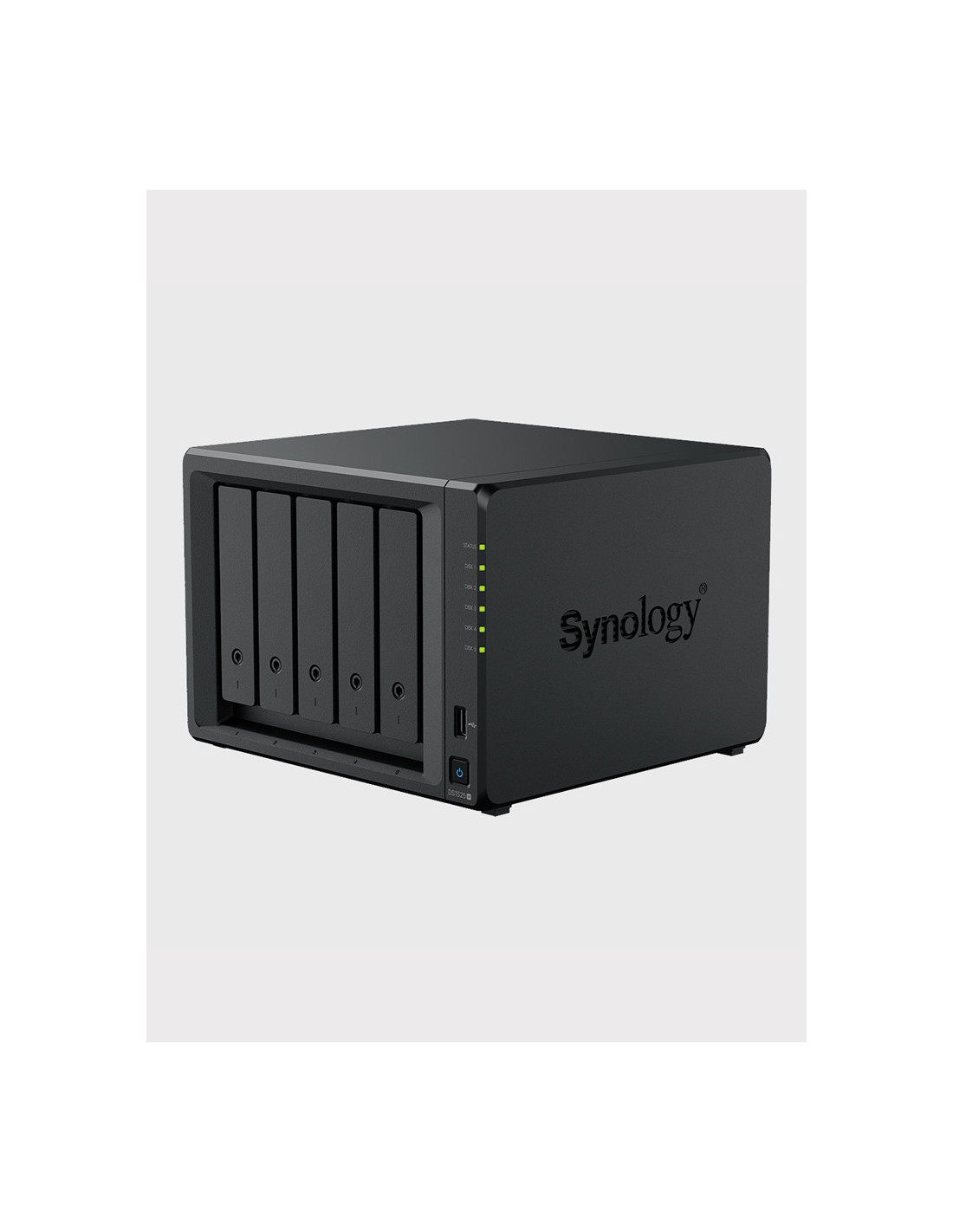

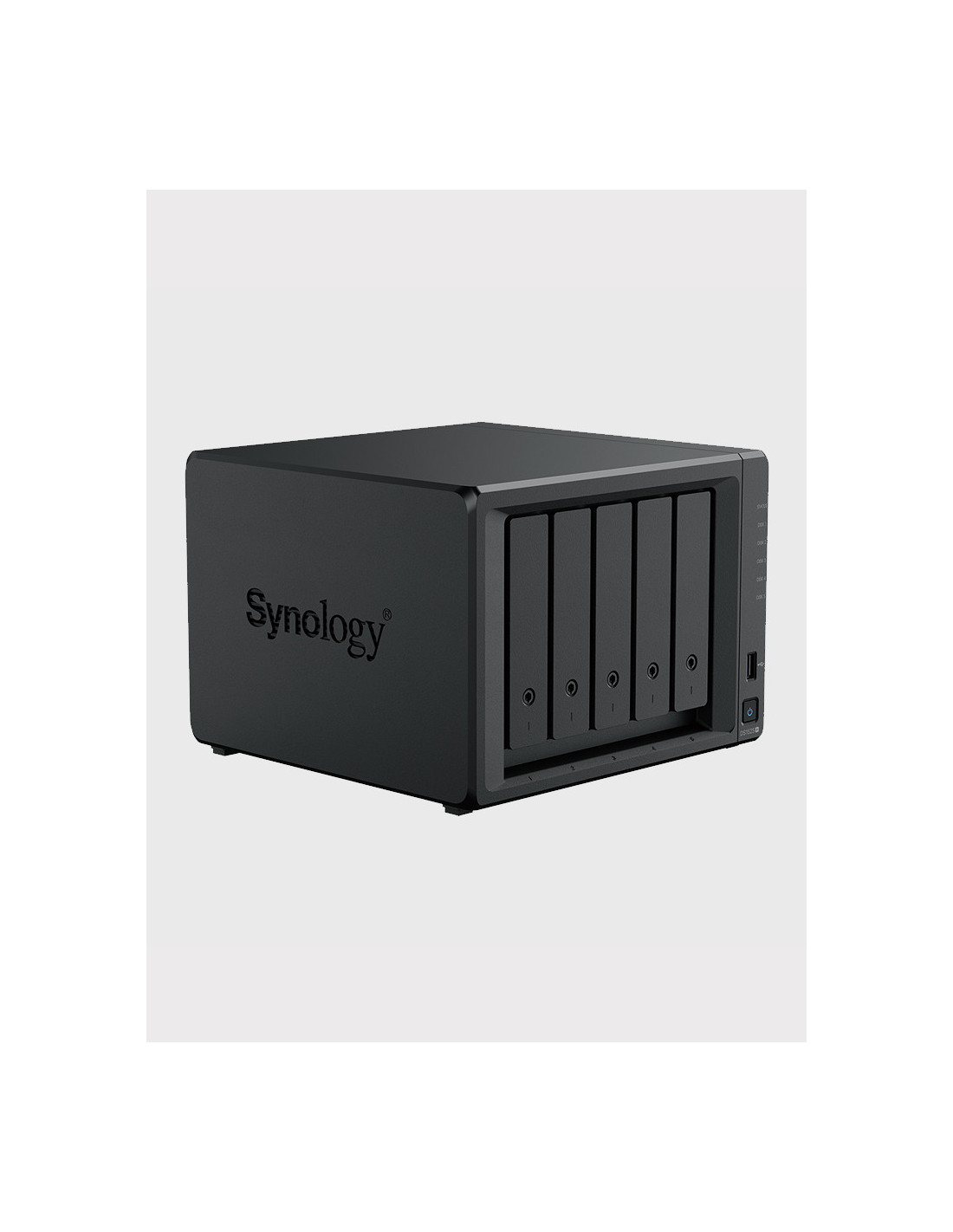

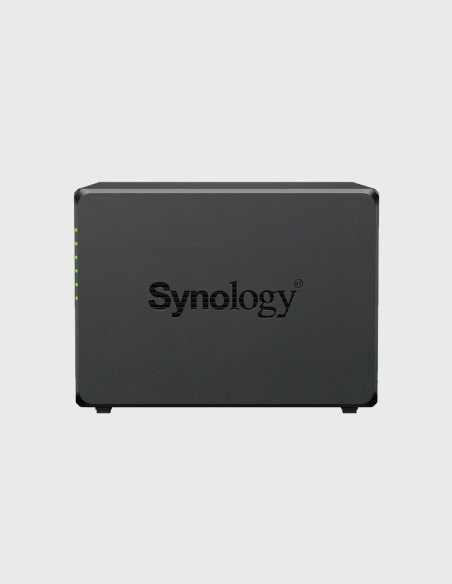

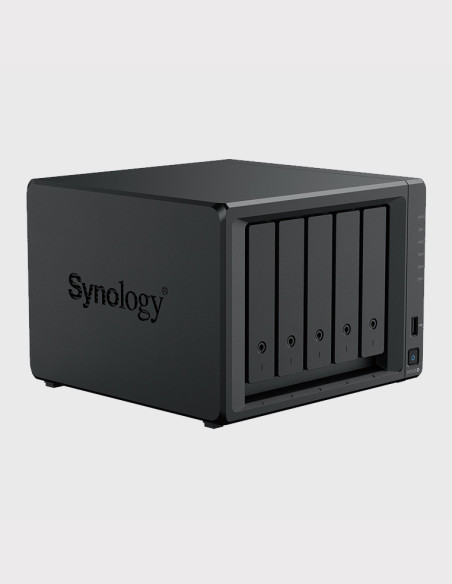

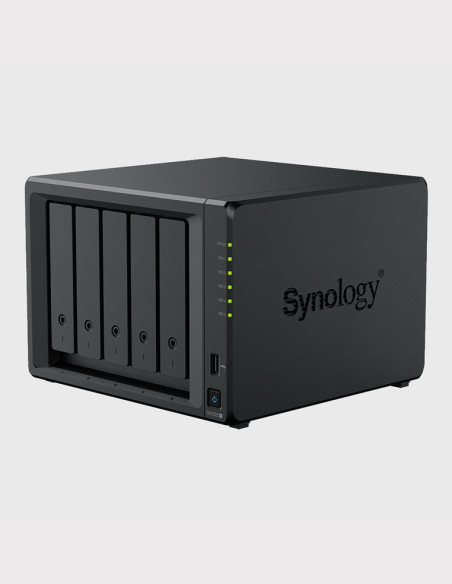

The Synology DS1525+ is a professional 5-bay NAS server, bundled here with 5 × 4 TB Synology HAT3300 HDDs preinstalled (raw capacity: 20 TB). Designed for SMBs, IT teams and mission-critical environments, it offers performance, reliability and scalability.

Equipped with a AMD Ryzen V1500B processor (4 cores / 8 threads at 2.2 GHz) and 8 GB ECC DDR4 RAM (expandable to 32 GB), this NAS handles demanding tasks like multi-site backup, virtualization, IP surveillance and secure collaboration with ease.

Included drives: 5 × Synology HAT3300 – 4 TB, 5400 RPM, 256 MB cache, 3-year warranty, fully DSM certified for 24/7 operation.

🔧 Key Features

  • CPU: AMD Ryzen V1500B – 4 cores / 8 threads @ 2.2 GHz
  • RAM: 8 GB DDR4 ECC (expandable to 32 GB)
  • Storage: 5 × 4 TB Synology HAT3300 – preinstalled
  • SSD Cache: 2 × M.2 NVMe 2280 (Synology only)
  • Network: 2 × RJ45 2.5 GbE (link aggregation supported)
  • Expansion: 1 × PCIe Gen3 x2 slot (optional 10 GbE card)

🔐 Security & Reliability

  • Hardware encryption engine (AES-NI)
  • Btrfs snapshots with instant recovery
  • Advanced access control & user management
  • Cloud backup support: Synology C2, S3, Google Drive
  • Network redundancy: failover & link aggregation

💼 Recommended Use Cases

  • Centralised multi-site backup
  • Private cloud with Synology Drive and Office
  • Virtual machine hosting (Windows/Linux)
  • Docker / Kubernetes container deployment
  • IP surveillance (up to 40 cameras)

📦 What's in the Box

  • 1 × Synology DS1525+ NAS
  • 5 × 4 TB HAT3300 HDDs (preinstalled)
  • 1 × 120 W power adapter + cable
  • 2 × RJ45 Cat5e cables
  • Screw kit
  • Quick installation guide (EN / FR)

📊 Technical Specifications

Processor AMD Ryzen V1500B – 4 cores @ 2.2 GHz
RAM 8 GB DDR4 ECC (up to 32 GB)
Drives 5 × 4 TB HAT3300 preinstalled
SSD Cache 2 × M.2 NVMe 2280 (Synology only)
Network 2 × 2.5 GbE RJ45
Expansion 1 × PCIe Gen3 x2
USB 2 × USB 3.2 Gen1
Cooling 2 × 92 mm (~22 dB)
Power External 120 W
Dimensions / Weight 166 × 230 × 223 mm / ~2.67 kg

🧩 Compatible Accessories

  • Synology NVMe SSDs: SNV3400 / SNV3410
  • 10 GbE Card: Synology E10G22‑T1‑Mini
  • Expansion Units: DX525 (up to 15 bays via USB-C)
  • UPS Systems: APC Smart‑UPS, Synology compatible

✅ Warranty & Support

  • NAS warranty: 3 years (extendable to 5 years)
  • HAT3300 drives: 3-year warranty
  • Professional support via Synology DSM

ℹ️ Drive Compatibility

This unit includes 5 preinstalled Synology HAT3300 drives, fully DSM certified. Using non-certified drives is not recommended.

Model
Synology DiskStation DS1525+
CPU type
AMD Ryzen V1500B
Number of CPU sockets
1
Number of Cores / Threads
4C / 4T
CPU frequency
2.2 GHz
Memory capacity
8GB
Memory type
DDR4 ECC SODIMM
Number of memory slots
2 slot
Maximum memory capacity
32 GB (16 GB x 2)
Hardware Encryption Engine (AES-NI)
Non
Number of disk bays
5
Maximum number of disk bays with extension
5 + 10 (DX525 x 2)
M.2 drive slot
2 (NVMe)
Compatible disc type
2.5" SATA SSD
3.5" SATA HDD
M.2 2280 NVMe SSD
Hotswap disk
Oui
Installed disk capacity
20TB
Disk model installed
Synology HAT3300
Disk interface
Serial ATA 6Gb/s (SATA Revision 3)
Supported RAID type
JBOD
RAID 0
RAID 1
RAID 5
RAID 6
RAID 10
SHR
Supported file system
BTRFS
EXT3
EXT4
FAT
HFS+
NTFS
Number of expansion ports
2 ports USB Type-C
Scalable
Yes
PCIe Expansion
1 x Gen3 x2
Number of USB Ports
2 x USB 3.2 Gen 1*
Number of network ports
2 x 2.5GbE (RJ45)
Size (Height x Width x Depth)
166 mm x 230 mm x 223 mm
Weight
2.7 kg
Sound level
22.9 dB(A)
Mains input voltage
100V to 240V AC
Power frequency
50/60Hz, single phase
Color
Black
Brand
Synology
DS1525+HAT330020TB
DS1525+HAT330020TB
