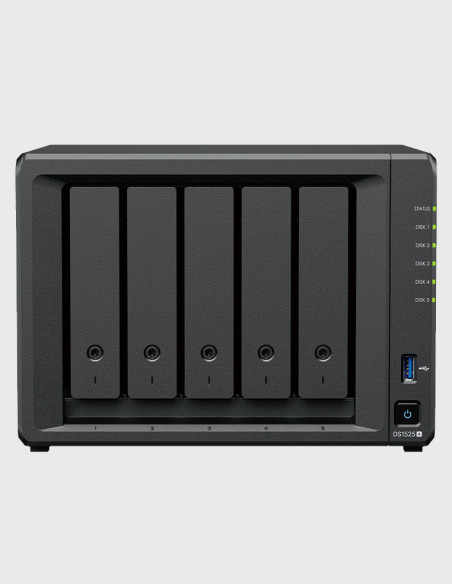

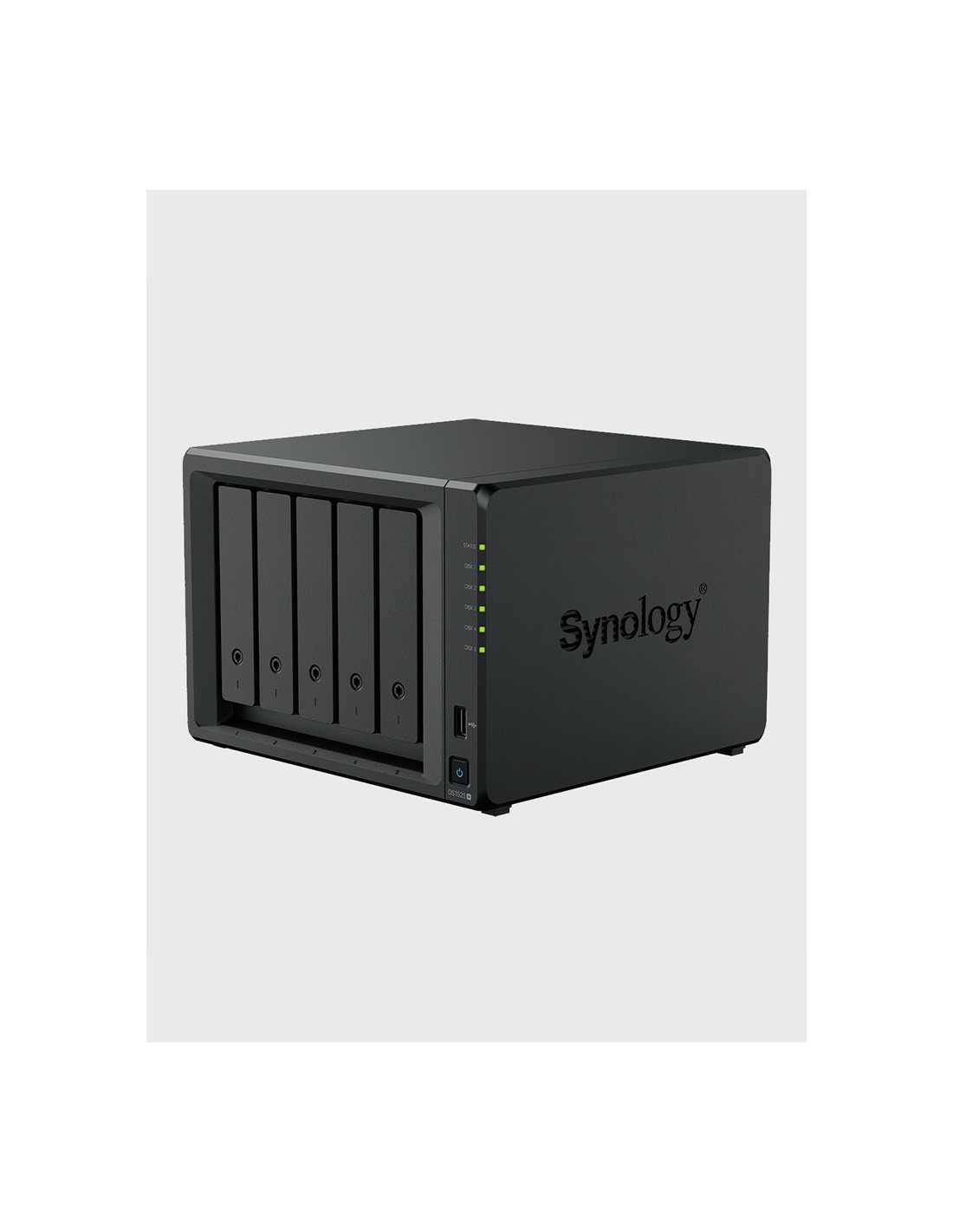

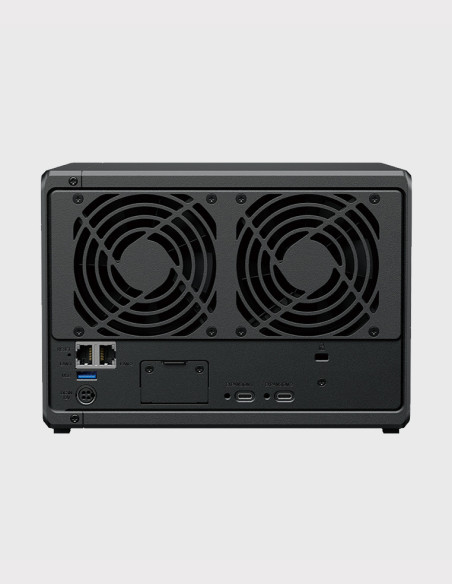

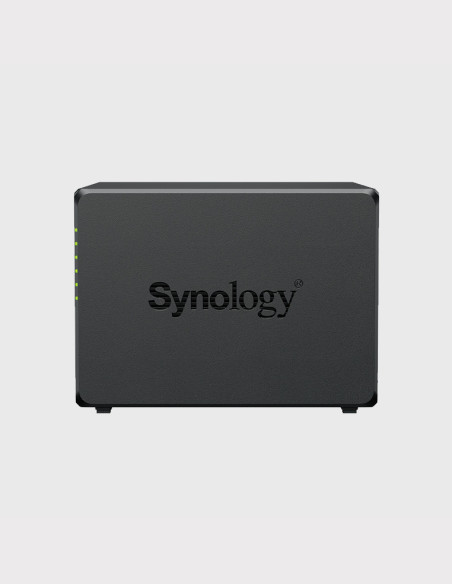

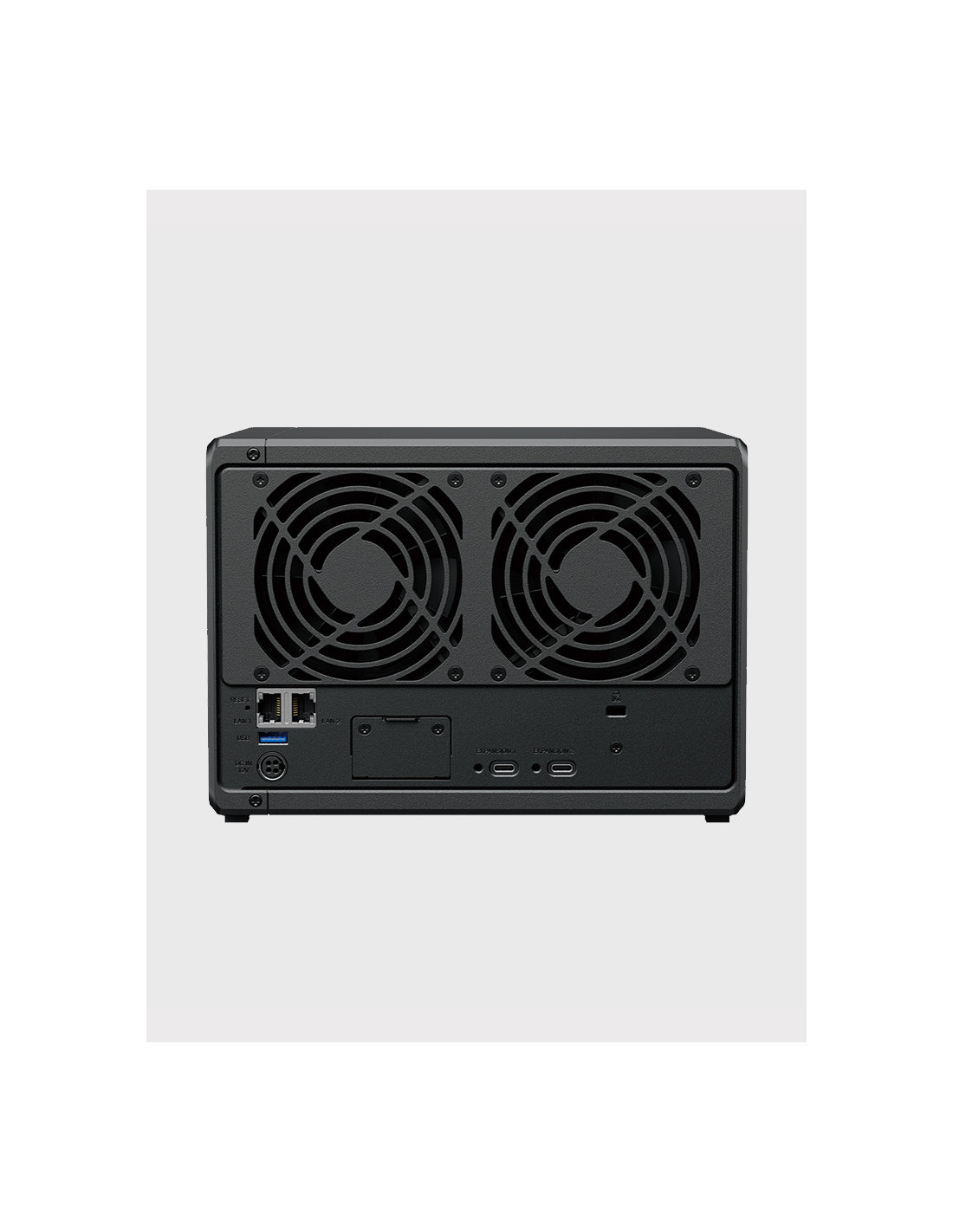

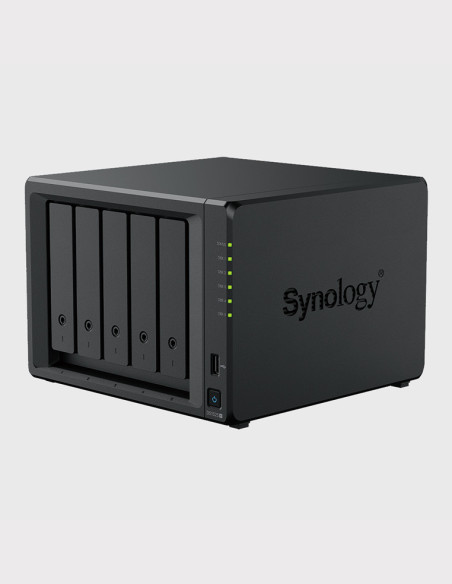

Synology DiskStation DS1525+ – 5-Bay NAS (Diskless)

✔️ Product overview

The Synology DS1525+ is a next-generation 5-bay NAS designed for professionals, SMBs, and power users.
Sold without drives, it gives you total flexibility to choose and configure your own storage setup.

With its AMD Ryzen V1500B processor (quad-core 2.2 GHz) and 8 GB ECC DDR4 memory (expandable to 32 GB), the DS1525+ excels at demanding tasks such as:

• Automated backups

• Virtualisation (VMs and Docker containers)

• Multi-user file management

• IP camera surveillance (via Surveillance Station)

Perfect for businesses needing a reliable, scalable, and secure NAS platform.

⚙️ Key features

• ✅ Drive bays: 5 x 3.5"/2.5" SATA – drives not included

• ✅ SSD cache: 2 x M.2 NVMe (2280)

• ✅ CPU: AMD Ryzen V1500B, 4-core @ 2.2 GHz

• ✅ RAM: 8 GB DDR4 ECC SO-DIMM (up to 32 GB)

• ✅ Networking:

  • 2 x 2.5 GbE LAN ports (link aggregation supported)

  • 1 x PCIe Gen3 x4 slot (for optional 10 GbE card like E10G22-T1-Mini)

• ✅ Connectivity:

  • 2 x USB 3.2 Gen1 ports

  • 2 x eSATA ports

• ✅ Cooling: 2 x 92 mm quiet fans (~22 dB)

• ✅ Power supply: 120 W external

• ✅ Dimensions: 166 × 230 × 223 mm

🛡️ Professional-grade security

• ✔️ Hardware AES-NI encryption

• ✔️ Btrfs snapshots

• ✔️ Cloud backup (Synology C2, Amazon S3, Google Drive)

• ✔️ Advanced user permissions & auditing

• ✔️ Network failover and bonding support

💼 Recommended use cases

• Multi-user centralised backup

• Secure file sharing (Synology Drive + Office)

• Lightweight virtualisation

• Docker environments

• Surveillance station up to 40 cameras*

* Surveillance Station license required

🔄 DSM 7.2 software

Delivered with DiskStation Manager 7.2, the powerful Synology OS featuring:

• Modern and intuitive interface

• Application marketplace

• Centralised monitoring

• Smart automation

• Full system logging

📦 What’s in the box

• 1 × Synology DS1525+ NAS

• 1 × 120 W external power adapter

• 1 × power cord

• 2 × RJ45 LAN cables

• Screws and installation kit

• Multilingual quick installation guide
