Synology DP7400 with 84 TB of Storage
General Overview

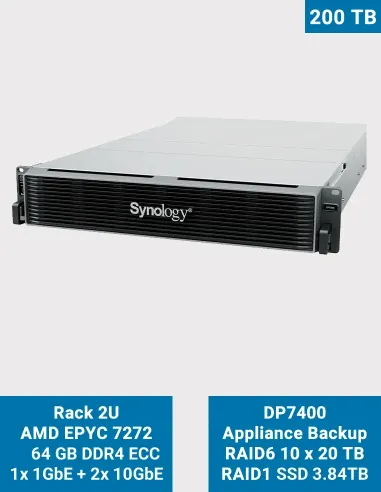

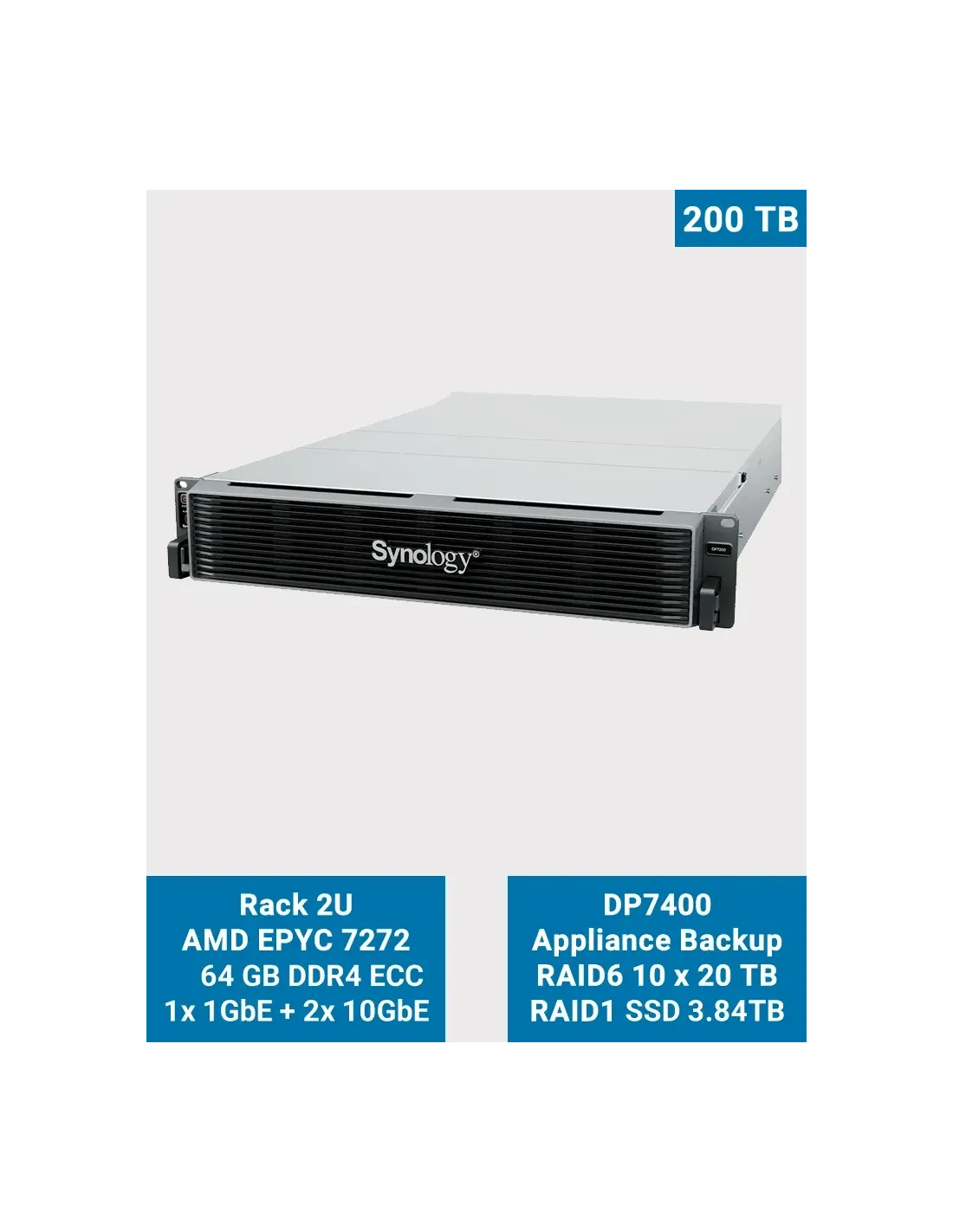

The Synology DP7400 is a pre-configured 2U backup appliance designed to provide complete data protection in enterprise environments. Equipped with the ActiveProtect Manager (APM) operating system, it enables centralized management of backups, fast data recovery, and advanced ransomware protection. With a storage capacity of 200 TB, it is ideal for businesses with large-scale backup needs.
Technical Features
-
Processor: AMD EPYC 7272 with 12 cores, base frequency of 2.9 GHz (up to 3.2 GHz in turbo mode)
-
Memory: 64 GB DDR4 ECC RDIMM, expandable up to 512 GB
-
Storage: 10 SATA hard drives of 20 TB (model HAT5310) in RAID 6 configuration with a spare disk, 2 SATA SSDs of 3.84 TB (model SAT5221) in RAID 1 for SSD cache
-
Total Raw Capacity: 207.68 TB
-

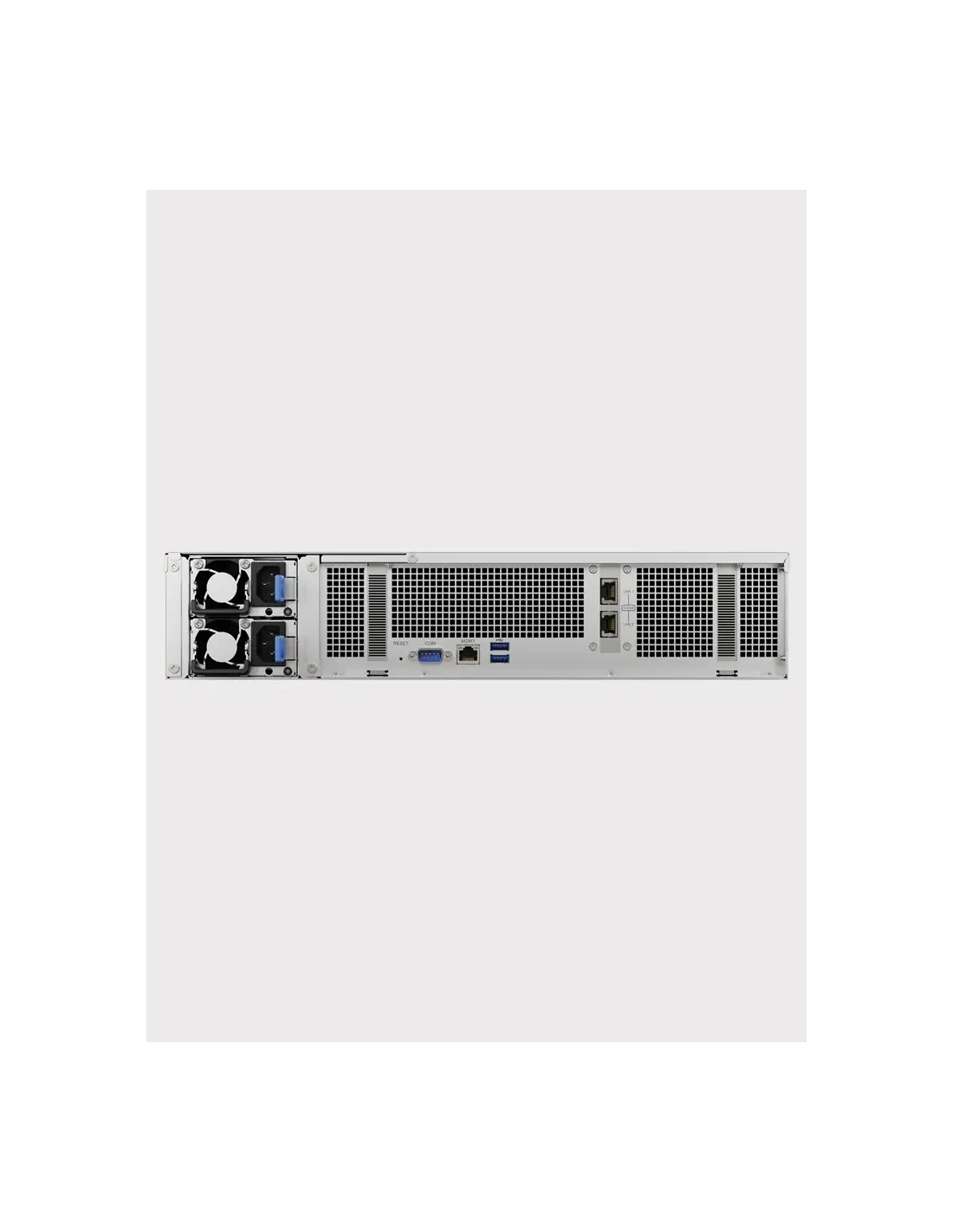

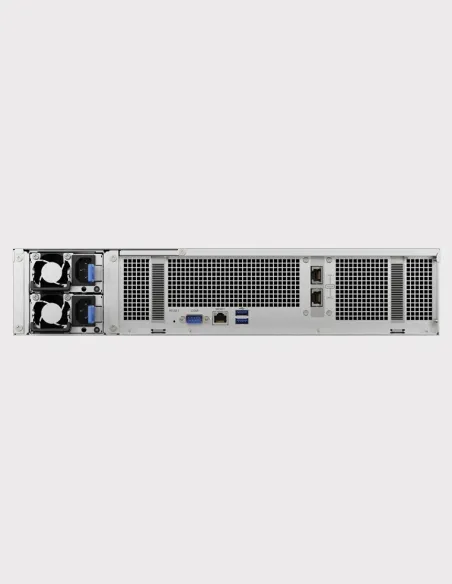

Network: 1 x RJ45 1 GbE for management, 2 x RJ45 10 GbE for data transfer
-
Power Supply: 2 hot-plug 550 W power supplies
-
Dimensions: 2U (Rackmount)
-
Weight: Approximately 30 kg
Main Features
-
Fast deployment: Installed in under 15 minutes with automatic disk and RAID setup
-
Complete workload protection: Backup of physical servers, virtual machines, SaaS applications (Microsoft 365, Google Workspace), databases (SQL Server, Oracle) and more
-
Centralized management: Monitors up to 150,000 workloads and 2,500 sites from a single interface
-
Flexible recovery: Full restores, at the file level or via P2V/V2V
-
Ransomware protection: Immutable backups, WORM storage, physical isolation (air-gap) and client encryption
-
Backup verification: Automated recovery testing with video generation for auditing
-
Advanced deduplication: Source and global deduplication to reduce backup size and save storage space
Compatible Accessories
-
Mounting Kits: Compatible with Synology RKS-02 rails (sold separately)
-
Network Expansion Cards: 10/25 GbE SFP28 network card, 10 GbE RJ45 network card
-
Additional Licenses: Synology ActiveProtect Manager license (APM-1NODE-3Y-VIRTUAL) for 3-year extension
Recommended Use Cases
-
Multinational corporations requiring centralized backup solutions for multiple sites
-
Managed Service Providers (MSPs) offering large-scale backup services
-
Organizations that must comply with strict data protection and compliance regulations
-
Virtualized environments using VMware vSphere or Microsoft Hyper-V
-
Businesses using critical applications such as Oracle or Microsoft SQL Server databases
Box Contents
| Quantity |
Item |
| 1 |
Synology DP7400 NAS |
| 1 |
Power Adapter |
| 1 |
Ethernet Cable |
| 1 |
Drive Screws |
| 1 |
Installation Guide |
Security and Compliance
-
Encryption: AES-256 encryption of data before transfer and storage
-
Access Controls: Role-based access management (RBAC), built-in firewall, and network isolation
-
Compliance: Compliance with data security and privacy standards, including GDPR
-
Immutable Backups: Protection against modification or deletion of data during retention period
