Synology RS2423RP+ NAS Server Rack 2U 12-Bay HAT3300 192TB (12x16TB)
Synology RS2423RP+ NAS Server Rack 2U 12-Bay (Diskless)
Synology RS2423RP+ NAS Server Rack 2U 12-Bay (Diskless)
Synology RS2423RP+ NAS Server Rack 2U 12-Bay (Diskless)
Synology RS2423RP+ NAS Server Rack 2U 12-Bay (Diskless)
Synology RS2423RP+ NAS Server Rack 2U 12-Bay HAT3300 192TB (12x16TB)
Synology RS2423RP+ NAS Server Rack 2U 12-Bay (Diskless)
Synology RS2423RP+ NAS Server Rack 2U 12-Bay (Diskless)
Synology RS2423RP+ NAS Server Rack 2U 12-Bay (Diskless)
Synology RS2423RP+ NAS Server Rack 2U 12-Bay (Diskless)

Synology RS2423RP+ NAS Server Rack 2U 12-Bay HAT3300 192TB (12x16TB)

Out-of-Stock
€9,614.40
VAT included

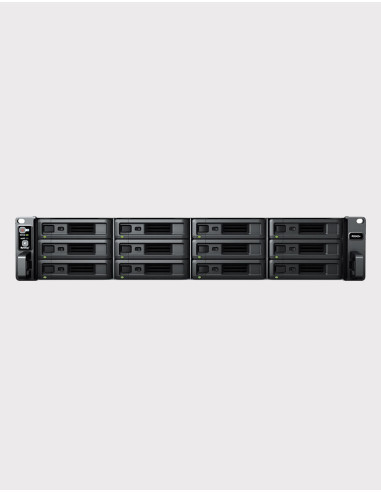

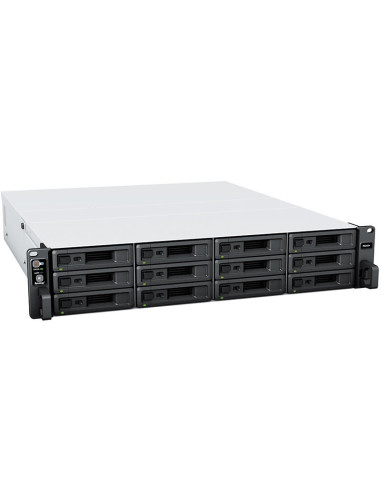

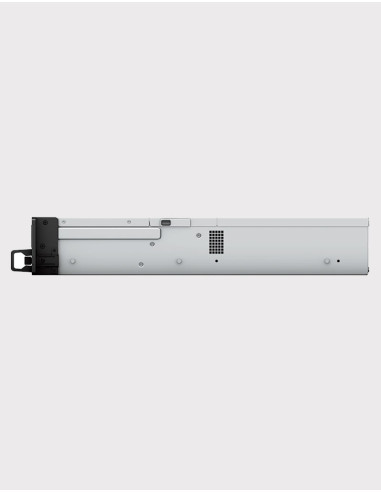

SYNOLOGY RackStation RS2423RP+ 192TB Hard Disk Capacity
Synology HAT3300 disks pre-installed and tested in the workshop. Ready to use!
NAS 12-Bay 2U Rack - Internal Maximum Capacity 216 TB - 8GB memory expandable to 32GB (16GB + 16GB)
1 port 10GbE - 2 ports 1GbE - 1 Port eSATA - 1 Slot d'extension PCIe Gen3 x8 slot (x4 link)
SATA 6Gb/s 2.5" or 3.5" Disk - SSD Support
Product composition:
- RS2423RP+ 12-slot rackmount 2U NAS (3-Year Manufacturer Warranty)
- 12 Synology HAT3300 16TB drives (3-Year Manufacturer Warranty)




Model
Synology RackStation RS2423RP+
CPU type
AMD Ryzen V1780B
Number of CPU sockets
1
Number of Cores / Threads
4C / 4T
CPU frequency
3.35 GHz - Burst 3.6 Ghz
Memory capacity
8GB
Memory type
DDR4 ECC UDIMM
Number of memory slots
2 slot
Maximum memory capacity
32 GB (16 GB x 2)
Hardware Encryption Engine (AES-NI)
Non
Number of disk bays
12
Maximum number of disk bays with extension
12 + 12 (RX2423/RX2423RP x 1)
M.2 drive slot
No
Compatible disc type
2.5" SATA SSD
3.5" SATA HDD
Hotswap disk
Oui
Installed disk capacity
192TB
Disk model installed
Synology HAT3300
Disk interface
Serial ATA 6Gb/s (SATA Revision 3)
Supported RAID type
BASIC
JBOD
RAID 0
RAID 1
RAID 5
RAID 6
RAID 10
SHR
Supported file system
BTRFS
EXT3
EXT4
FAT
HFS+
NTFS
Number of expansion ports
1 eSATA port
Scalable
Yes
PCIe Expansion
1 x Gen3 x8 slot (x4 link)
Number of USB Ports
2 x USB 3.2 Gen 1*

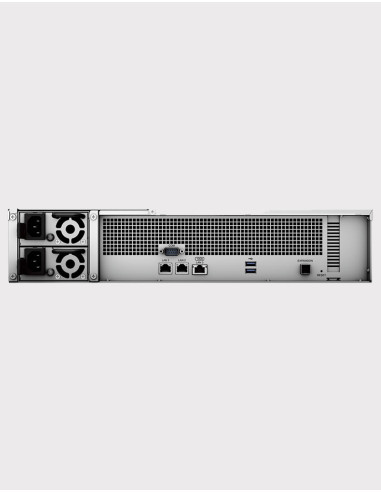

Number of network ports
1 x 10GbE (RJ45)
2 x 1GbE (RJ45)
Size (Height x Width x Depth)
88 mm x 482 mm x 552 mm
Weight
11.5 kg
Sound level
52.3 dB(A)
Mains input voltage
100V to 240V AC
Power frequency
50/60Hz, single phase
Form Factor
Rack 2U
Color
Black
White
Brand
Synology
RS2423RP+HAT3300192TB
3701446234086
RS2423RP+HAT3300192TB
