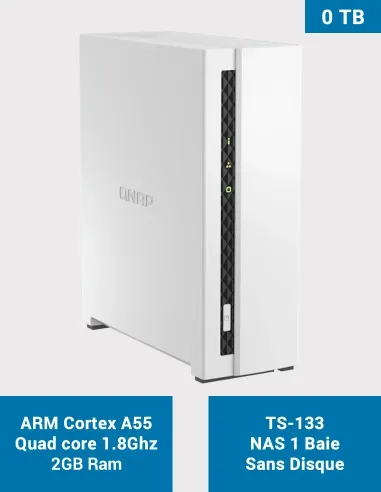

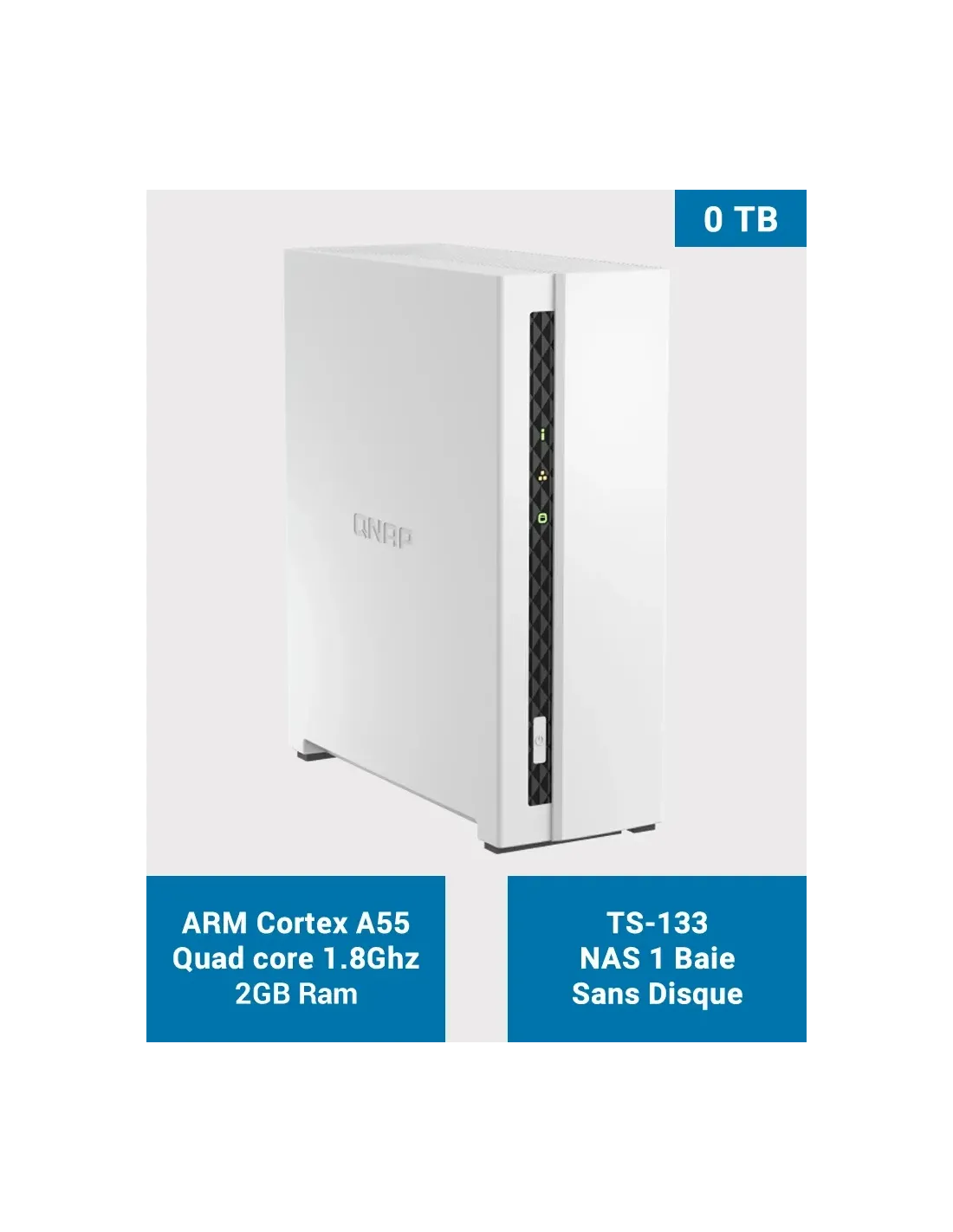

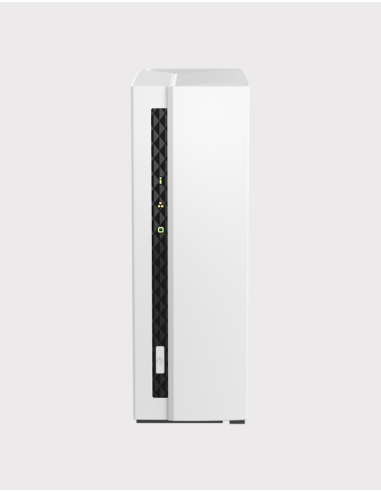

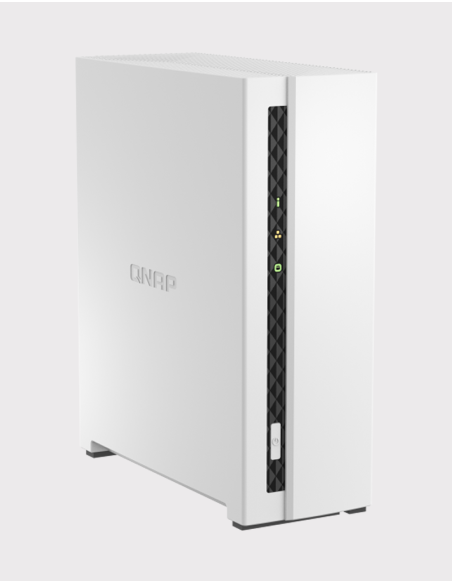

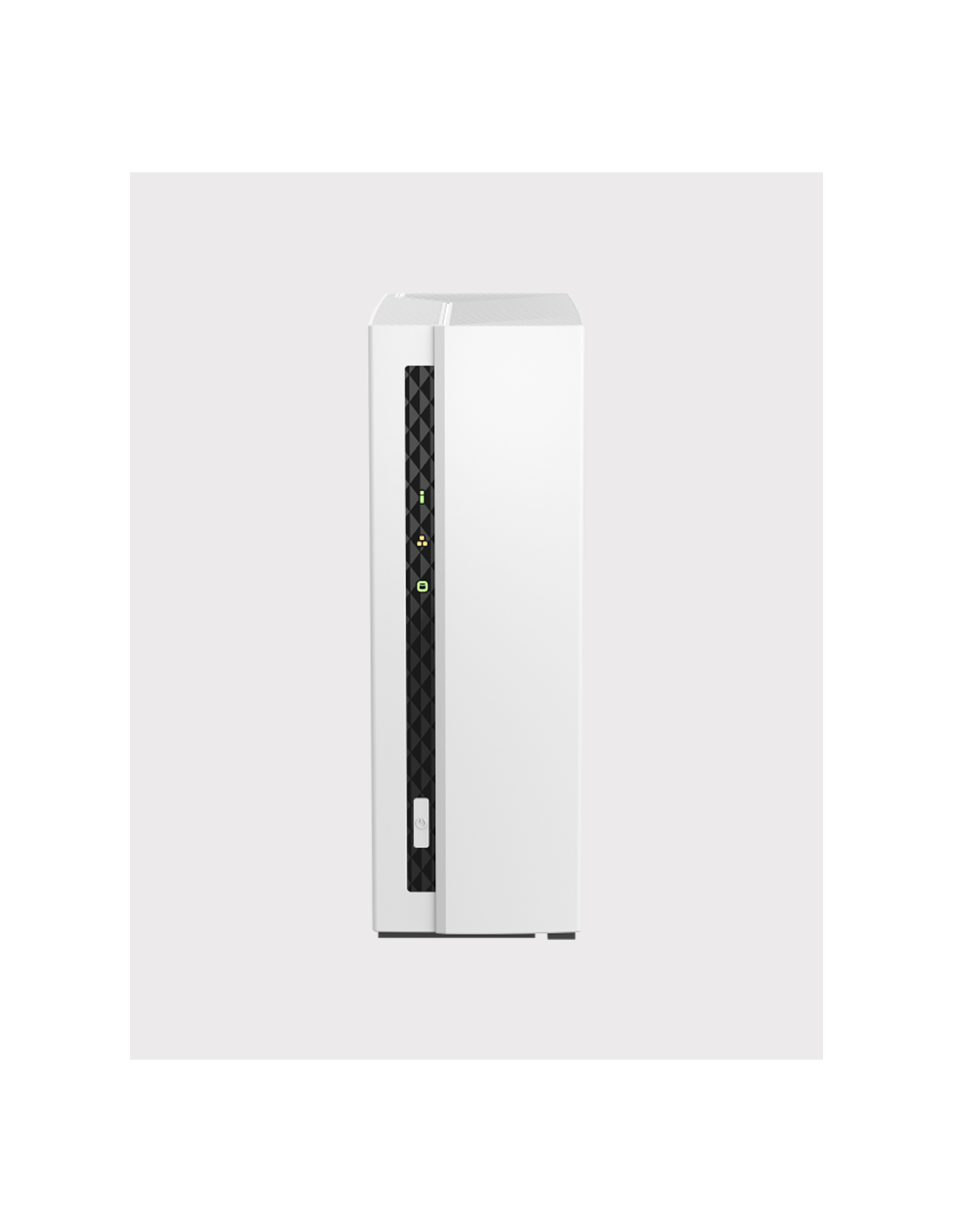

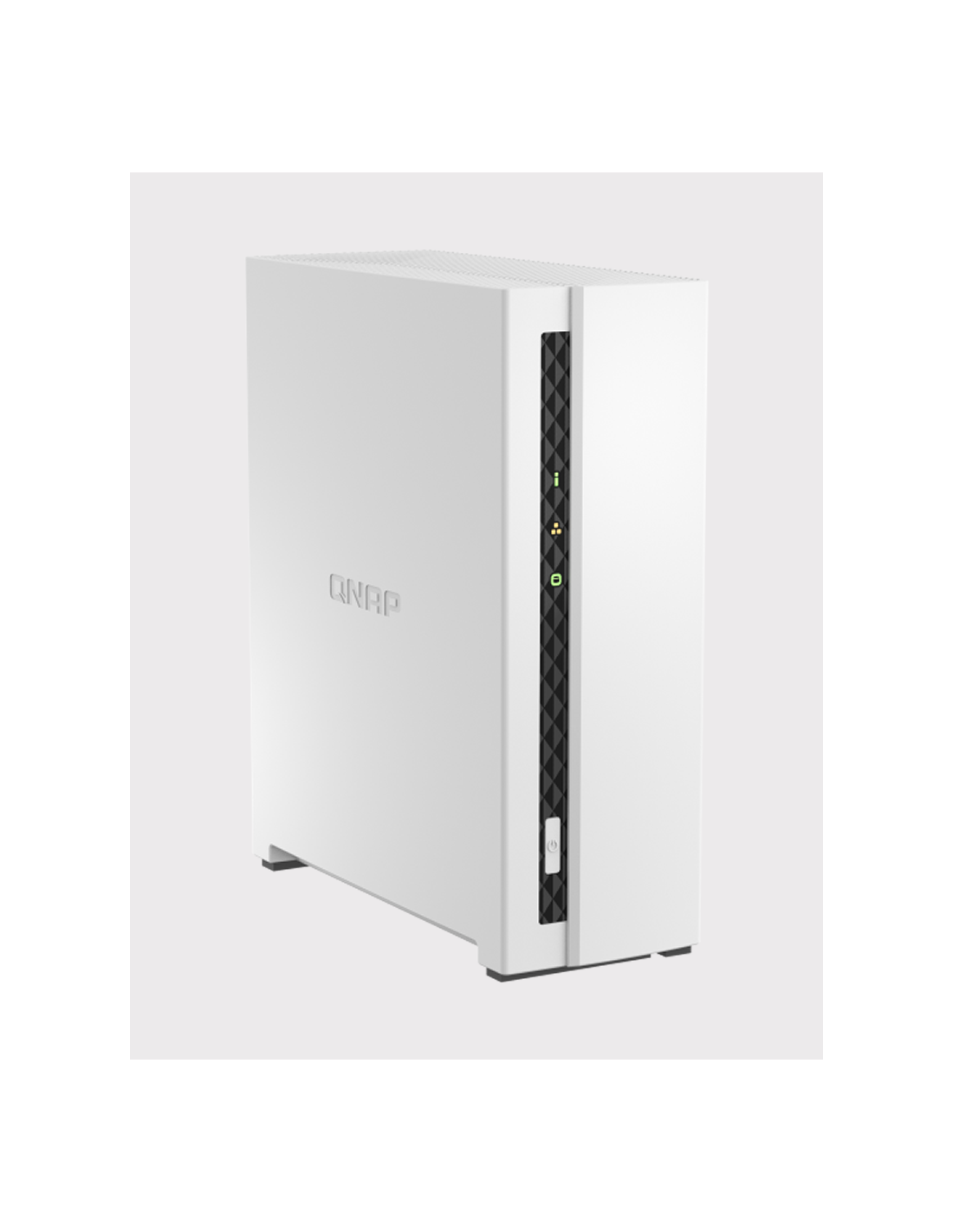

QNAP TS-133 – 1-Bay NAS (diskless)

QNAP TS-133 – 1-Bay NAS (diskless unit)

📌 General presentation
The QNAP TS-133 is a compact and quiet 1-bay NAS designed for home users and small offices who want to centralize their data and create a secure private cloud.
Powered by a quad-core ARM Cortex-A55 1.8 GHz CPU and 2 GB DDR4 RAM (non-upgradable), it delivers efficient performance with minimal power consumption.
The QTS system includes comprehensive backup, file-sharing and multimedia apps, plus AI-powered photo recognition via Qumagie.

🔧 Key features
Processor : ARM Cortex-A55 – quad-core @ 1.8 GHz
RAM : 2 GB DDR4 (non-upgradable)

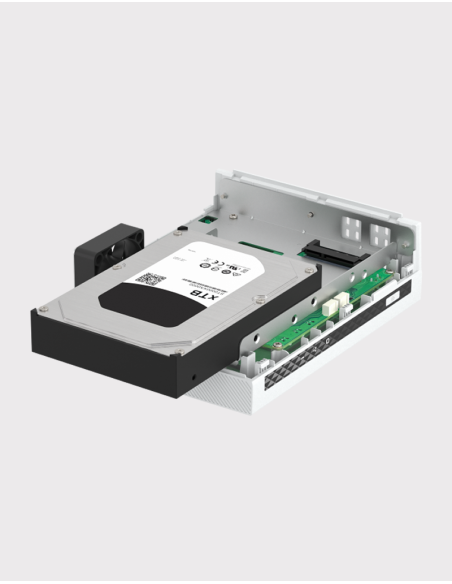

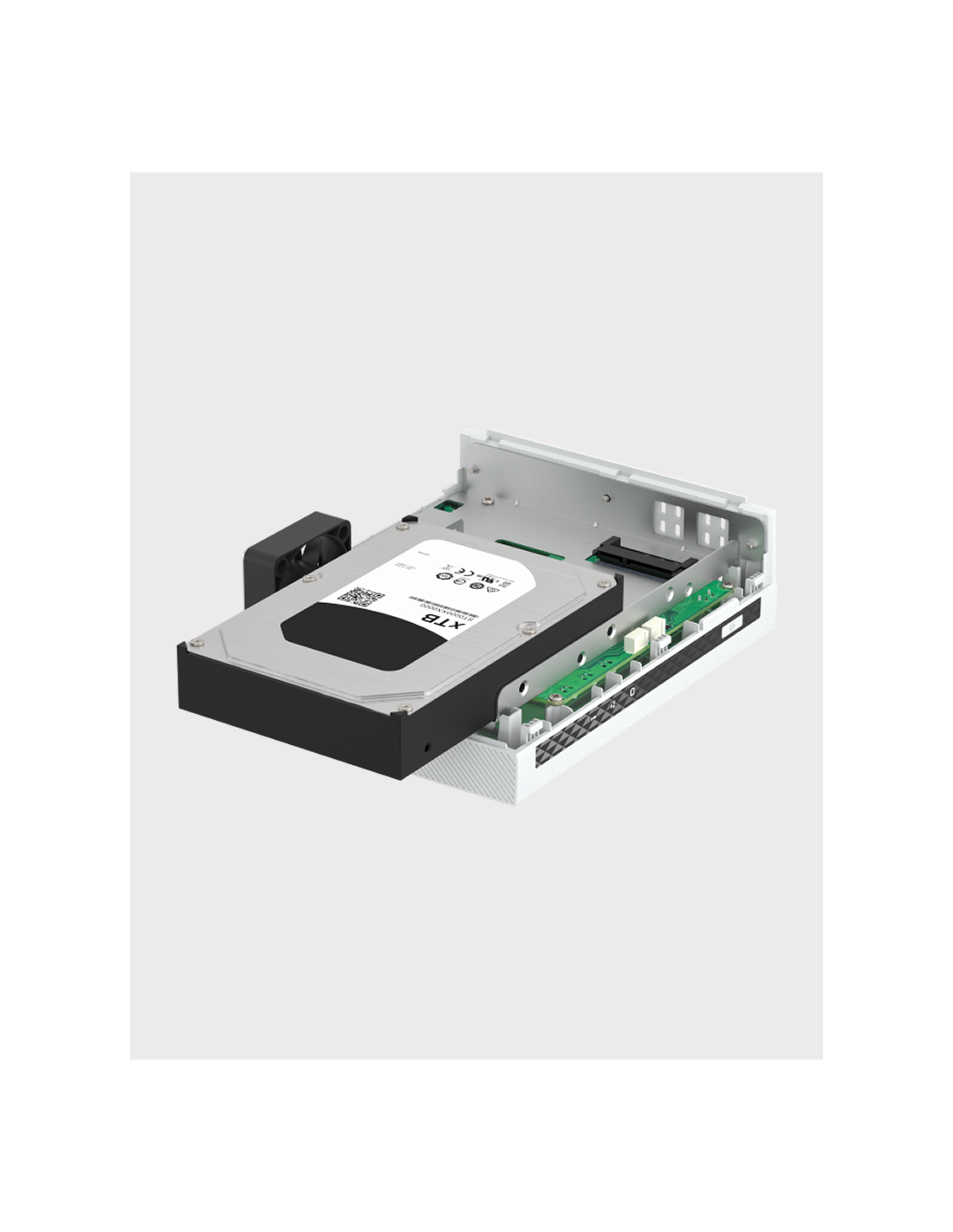

Drive bay : 1 × 3.5″ SATA 6 Gb/s (2.5″ SSD/HDD compatible)

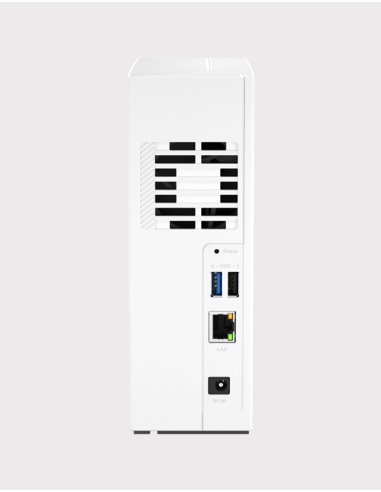

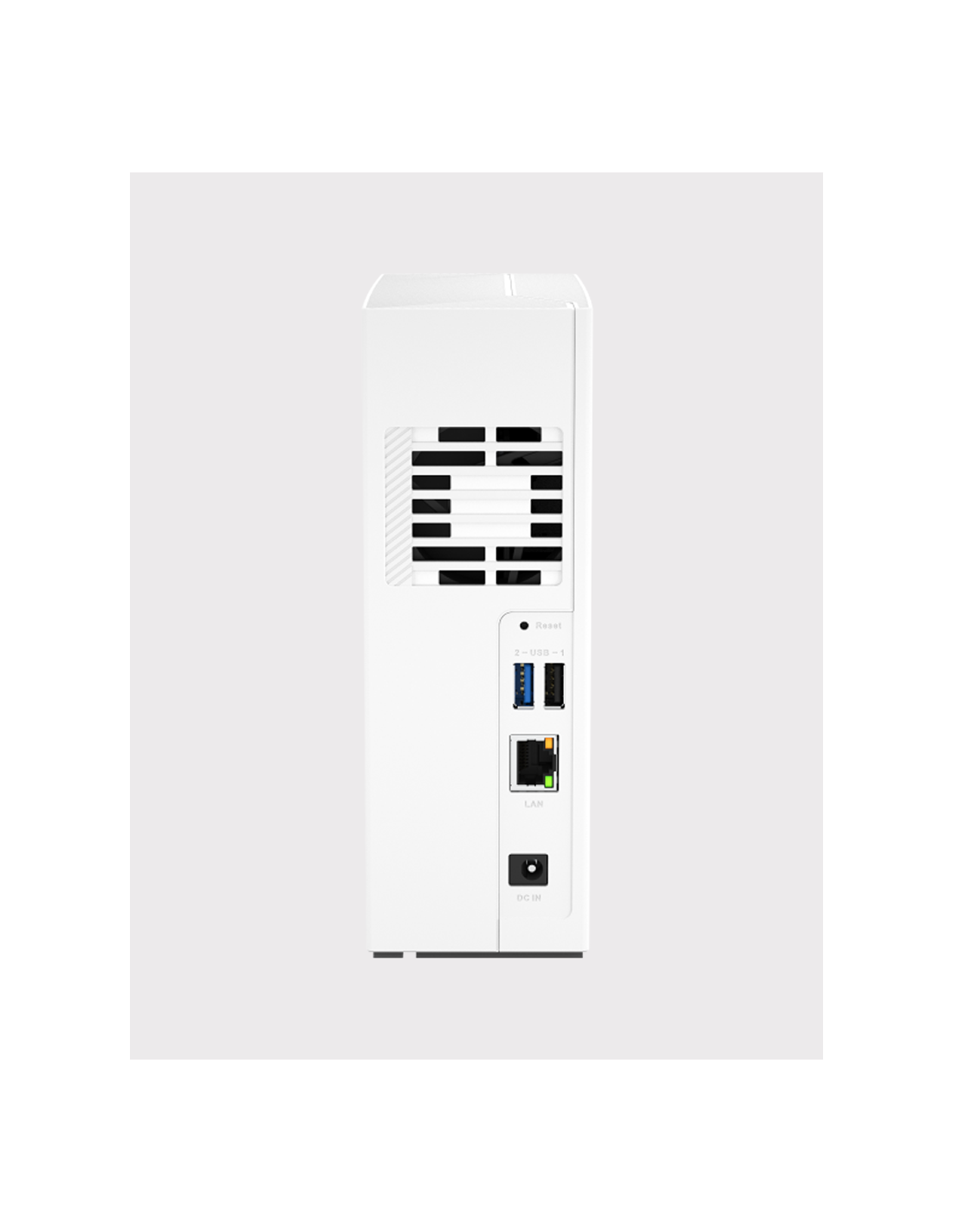

Network : 1 × 1 GbE RJ45 (WOL and Jumbo Frames)
USB ports : 1 × USB 3.2 Gen 1 + 1 × USB 2.0
File system : EXT4 / Btrfs (optional)
Operating system : QTS 5 with App Center, Hybrid Backup Sync, Qumagie AI, DLNA, myQNAPcloud
Cooling : 1 × 50 mm fan
Dimensions / weight : 186 × 66.1 × 157.6 mm / ≈ 0.6 kg
Power consumption : ≈ 7.3 W active, ≈ 2.7 W idle
Operating temperature : 0 – 40 °C

🔐 Security & reliability
Hardware AES-256 bit encryption
Snapshots and instant restore
Hybrid Backup Sync / cloud replication
Security Counselor and two-step verification

💼 Recommended use cases
Home backup and synchronization
DLNA / Chromecast / AirPlay multimedia server
Private cloud (myQNAPcloud)
Automatic PC / mobile backups

📦 Box contents
1 × QNAP TS-133 NAS (diskless)
1 × 36 W power adapter + cord
1 × RJ45 Ethernet cable
Quick installation guide

📊 Technical specifications
Component | Detail
Processor | ARM Cortex-A55 – quad-core @ 1.8 GHz
RAM | 2 GB DDR4 (non-upgradable)
Drive bay | 1 × 3.5″ SATA (2.5″ compatible)
Network | 1 × 1 GbE RJ45
USB ports | 1 × USB 3.2 Gen 1 + 1 × USB 2.0
Cooling | 1 × 50 mm fan
Power | 36 W external
Dimensions / weight | 186 × 66.1 × 157.6 mm / ≈ 0.6 kg

✅ Warranty & support
NAS : 2 years standard (QNAP)
