Firewall pfSense Q3x I3 4005U 2 Gigabit ports 2GB SSD 16GB

Appliance / Firewall Q3x 4 ports Gigabit

pfSense or OPNsense or IPFire appliance

Windows/Linux Mini PC

Appliance IoT / 3CX

4-port gigabit appliance

Celeron 2955U to I7 5500U

L’Appliance Q3x est un boitier Firewall with 4 Gigabit ports, Intel x86 architecture and compatible with all Firewall OSes on the market. You can start the box on a USB key and install …

Compatible OS Firewall:

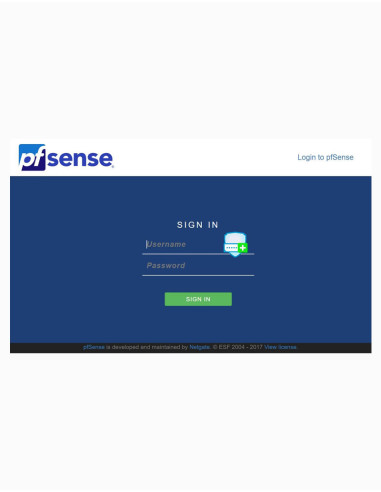

• pfSense,
• OPNsense,
• Untangle,
• IPFire,
• Sophos,
• Linux iptables,
• …

Compatible OS Microsoft / Linux:

• Windows 10,
• FreeBSD,
• Ubuntu,
• Debian,
• CentOS
• Red Hat,
• …

Compatible OS Router / IoT / Others:

• VyOS,
• 3CX,
• OpenWrt,
• Windows 10 IoT,
• RIOT,
• Contiki NG,
• FreeRTOS
• …

Celeron® 2955U to I7 5500U

2 or 4 core / 2 or 4 Thread

From 1.4 Ghz to 2.4 Ghz burst 3.0Ghz

DDR3L SO-DIMM

2GB / 4GB / 8GB

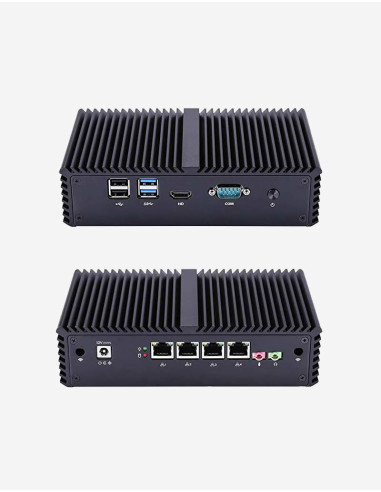

4 port

GIGABIT RJ45

1 Mini-PCI Express slot

1 Disk / SSD 2.5″

1 SIM + mPCIe slot

Flexible PCIe expansion

HDMI output

Auto-boot Jumper

The Q3x box includes several mPCIe slots to support the installation of a WIFI card or a 4G LTE card and to allow the backup of the main internet link.

HDMI connector to connect a screen.

Carte Intel® HD Graphics / HD 4200 / HD 4400 / HD5500

A jumper on the motherboard allows the box to start automatically. This allows during a power outage to automatically start the Appliance when the power supply is restored. Important for security systems, monitoring, etc.

VESA-compatible

Blank packaging

Power supply

To allow the boxes to be used easily behind a screen, a VESA system is delivered with the screws.

The packaging box is free of any inscription. No identification possible.

The box can be delivered with a power cord for each country:

• EU
• UK
• AU
• US
• CN

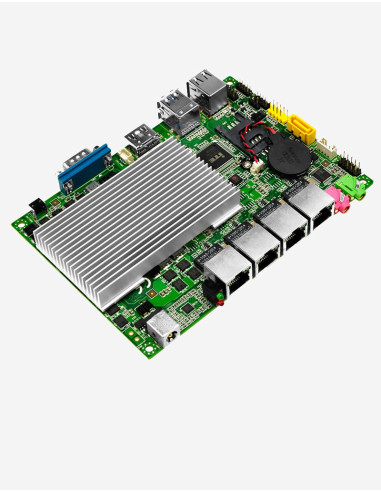

Quality internal card equipped :

• 1 x DDR3L-SODIMM 1600Mhz memory slot
• Memory capacity 2GB / 4GB / 8GB Max
• 1 Connector + SATA Power Supply
• 1 x mPCIe slot for SSDs from 16GB to 2 TB,
• 1 x mPCIe slot for WIFI card (Half/Full size)
• or 1 x mPCIe slot for 4G card (Half/Full Size)
• 1x SIM Slot
• 4 x Intel I211-AT Gigabit LAN
• 1 x HD Video (HDMI)
• 1 x RS232 serial port (DB9 Male)
• 1x GPIO connector
• 2 x USB2.0, 2 x USB3.0
• HDD LED, Power LED
• 1 x DC 12V Connector

Environmental characteristics:

• 12V 3A power supply
• DC Jack 5.5mm, 2.5 mm
• Aluminum Alloy Case
• Dimension 187 x 111 x 50 mm
• Packaging 261 x 218 x 75 mm
• Weight 0.95 Kg
• VESA mount
• Kensington Lock bracket
• Cooling Type: Fanless
• Operating temperature: 0°C – 50° Celsius
