Firewall OPNsense F120 4 ports 2GB SSD 500GB

Appliance / Firewall F120

pfSense or OPNsense appliance

Windows/Linux Mini PC

IoT appliance

3CX appliance

4-port gigabit appliance

The F120 Appliance is a Firewall box with Intel x86 architecture and compatible with all Firewall OSes on the market. You can start the box on a USB key and install …

Compatible OS Firewall:

• pfSense,

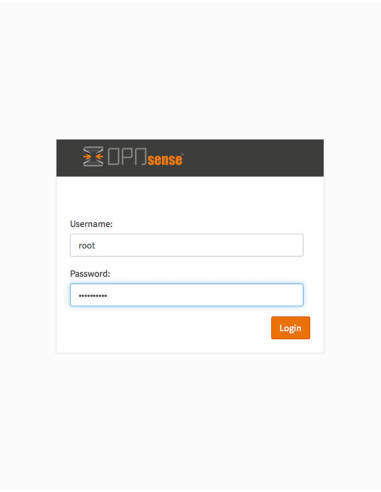

• OPNsense,
• Untangle,
• IPFire,
• Sophos,
• Linux iptables,
• …

Compatible OS Microsoft / Linux:

• Windows 10,
• FreeBSD,
• Ubuntu,
• Debian,
• CentOS
• Red Hat,
• …

Compatible OS Router / IoT / Others:

• VyOS,
• 3CX,
• OpenWrt,
• Windows 10 IoT,
• RIOT,
• Contiki NG,
• FreeRTOS
• …

Atom® E3827

2 core / 1.75 Ghz

DDR3L SO-DIMM

2GB / 4GB / 8GB

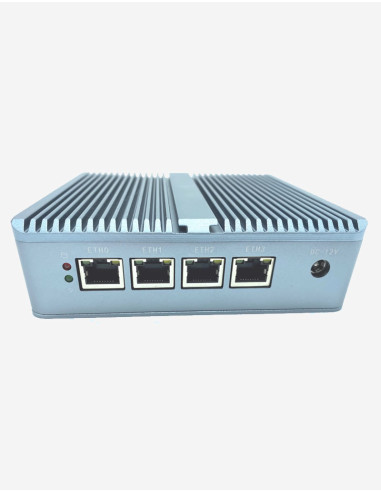

4 port

GIGABIT RJ45

1 Mini-PCI Express slot

1 Disk / SSD 2.5″

1 SIM + mPCIe slot

Flexible PCIe expansion

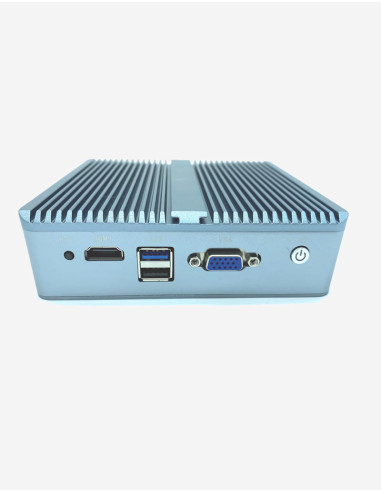

HDMI output

Auto-boot Jumper

The F120 box includes several mPCIe slots to support the installation of a WIFI card or a 4G LTE card and allow backup of the main internet link.

HDMI connector to connect a screen.

Carte Intel® HD Graphics for Intel Atom® Processor Z3700 Series

A jumper on the motherboard allows the box to start automatically. This allows during a power outage to automatically start the Appliance when the power supply is restored. Important for security systems, monitoring, etc.

VESA-compatible

Blank packaging

Power supply

To allow the boxes to be used easily behind a screen, a VESA system is delivered with the screws.

The packaging box is free of any inscription. No identification possible.

The box can be delivered with a power cord for each country:

• EU
• UK
• CH
• AU
• US
• CN

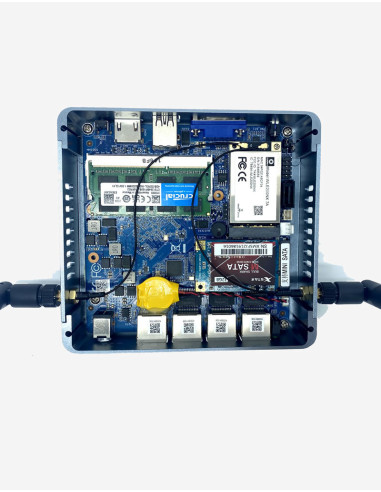

Quality internal card equipped :

• 1 x DDR3L-SODIMM 1333Mhz 1.35V Non-ECC memory slot
• Memory capacity 2GB / 4GB / 8GB Max
• 1 Connector + SATA Power Supply
• 1 x mPCIe slot for SSDs from 16GB to 2 TB,
• 1 x mPCIe slot for WIFI card (Full size)
• 1 x mPCIe slot for 4G card (Half Size)
• 1x SIM Slot
• 6 x Intel I211-AT Gigabit LAN
• 1 x HD Video (HDMI +VGA)
• 1 x USB2.0, 1 x USB3.0
• HDD LED, Power LED
• 1 x DC 12V Connector

Environmental characteristics:

• Aluminum Alloy Case
• Size 134 x 126 x 36mm
• Weight 0.6 Kg
• Cooling Type: Fanless
• Operating temperature: 0°C – 50° Celsius
