Firewall EG2x under pfSense CE 2 Gigabit ports 2GB SSD 250GB

pfSense® software is a free and open source distribution of FreeBSD, specifically designed for use as a firewall and router, managed entirely through a web interface. Apart from being a flexible and powerful routing and firewalling platform, it includes a long list of related features and a package system allowing for additional scalability without adding clutter and potential security holes to the distribution.

Firewall EG2x under PFsense® CE – 2 Gigabit ports

A powerful, complete and efficient Open Source Firewall !

A complete “fanless” firewall box for VSEs/SMEs

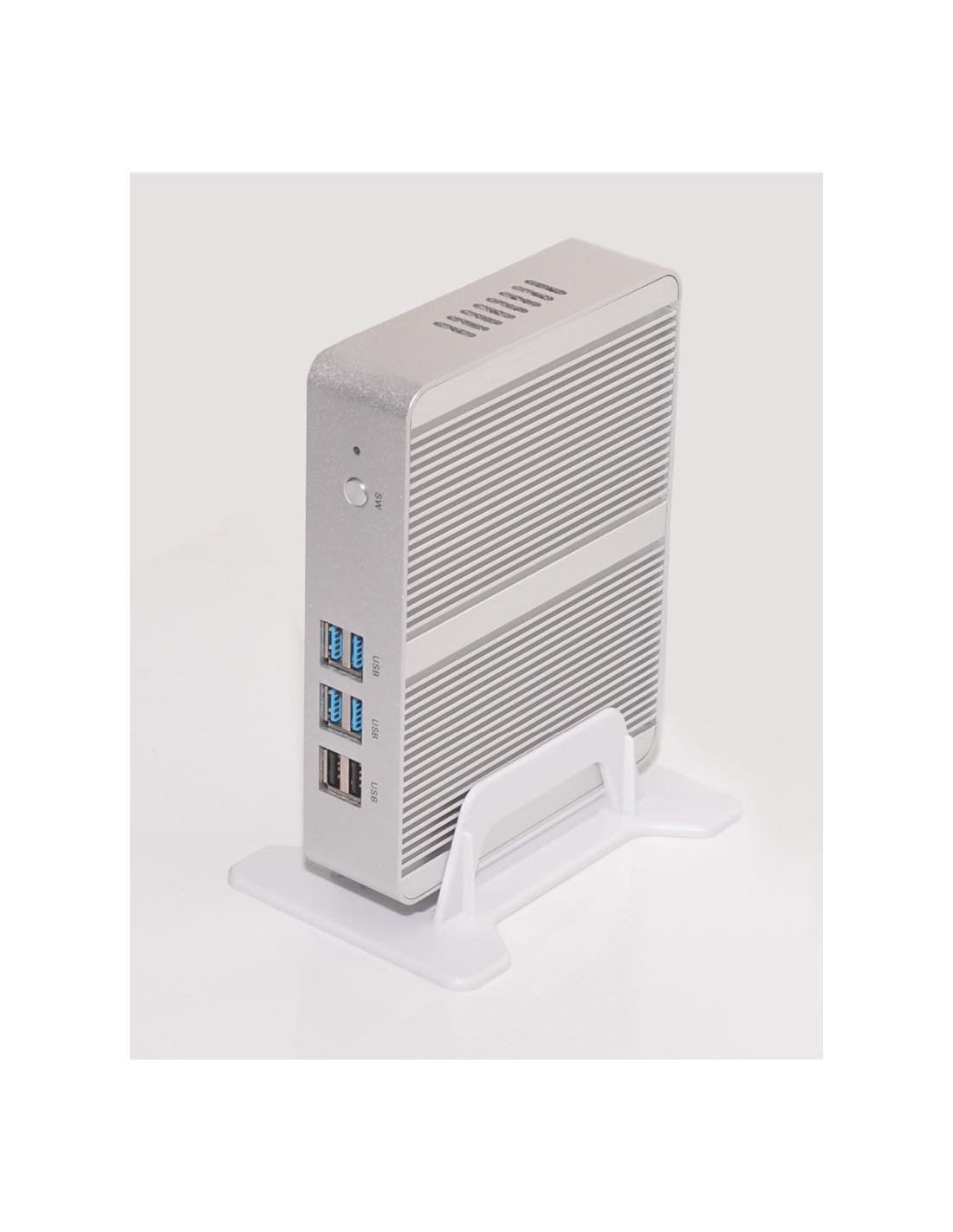

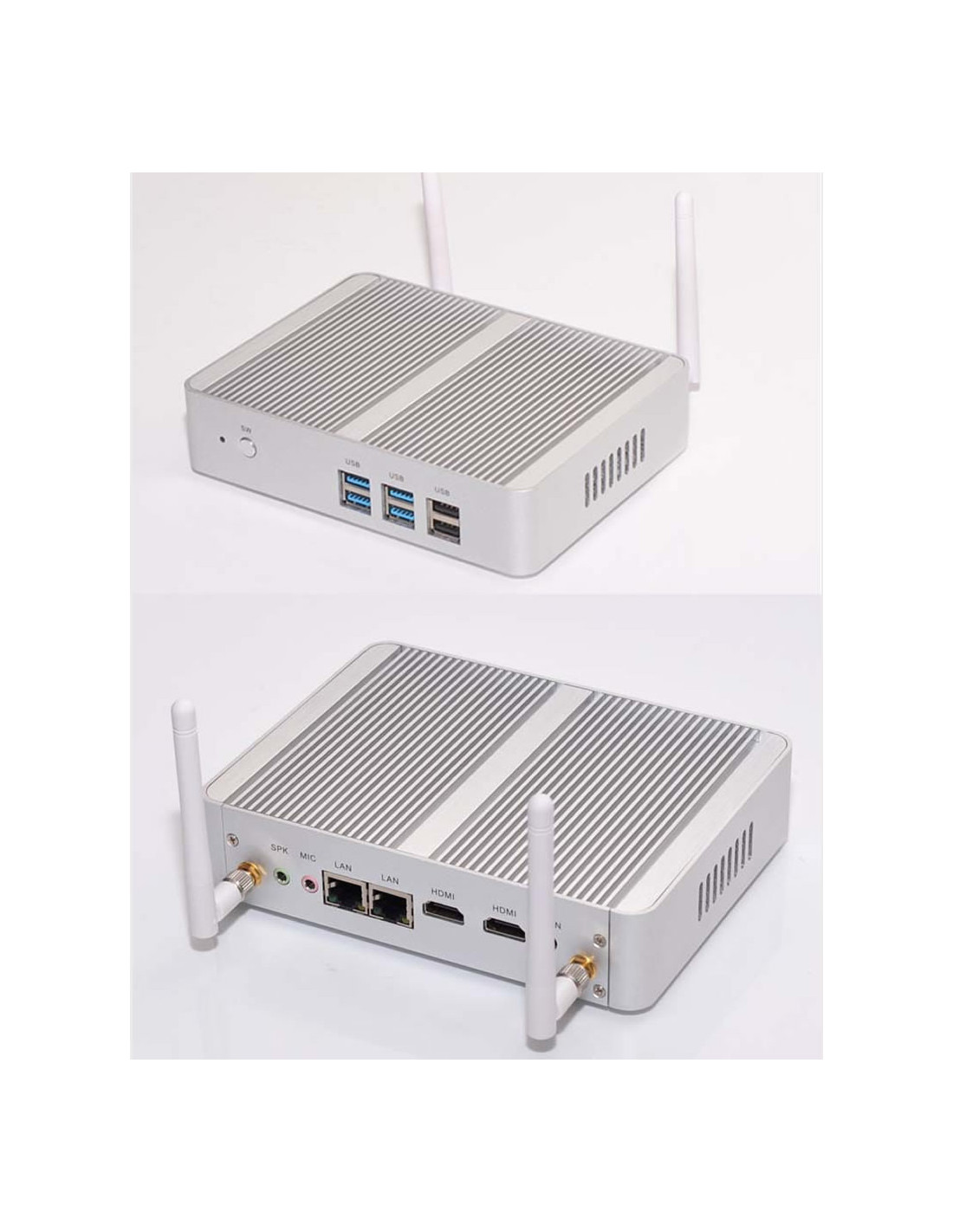

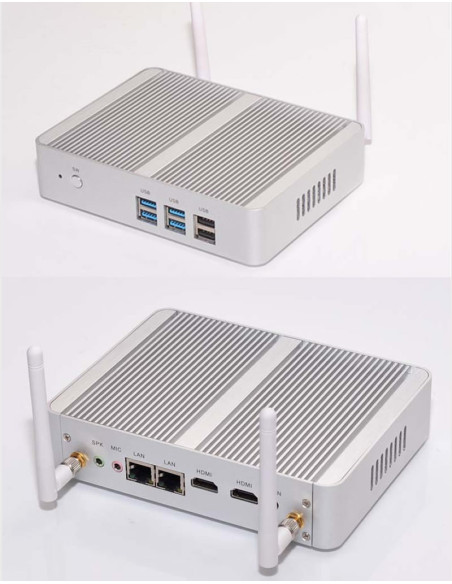

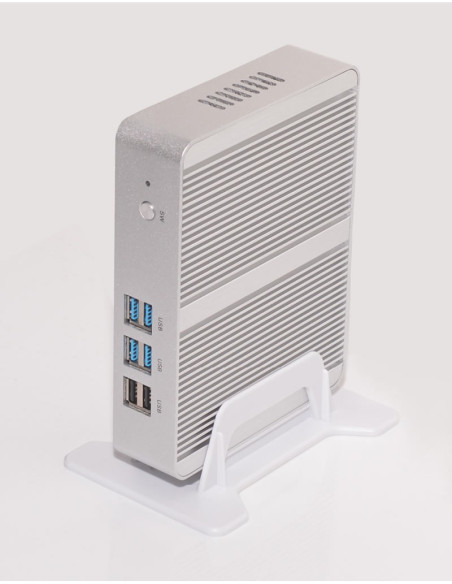

The Firewall E-WALL EG2x box is equipped with the pfSense® software in version 2.6.x. This very compact firewall is equipped with a WiFi b/g/n card. This makes it possible to create a protected WIFI zone making it possible to extend the capacities of the Firewall.

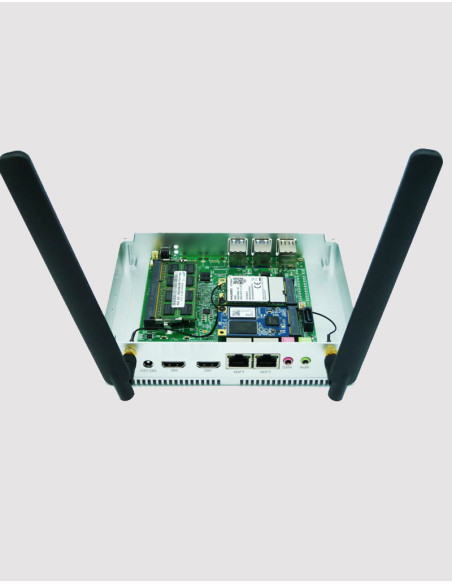

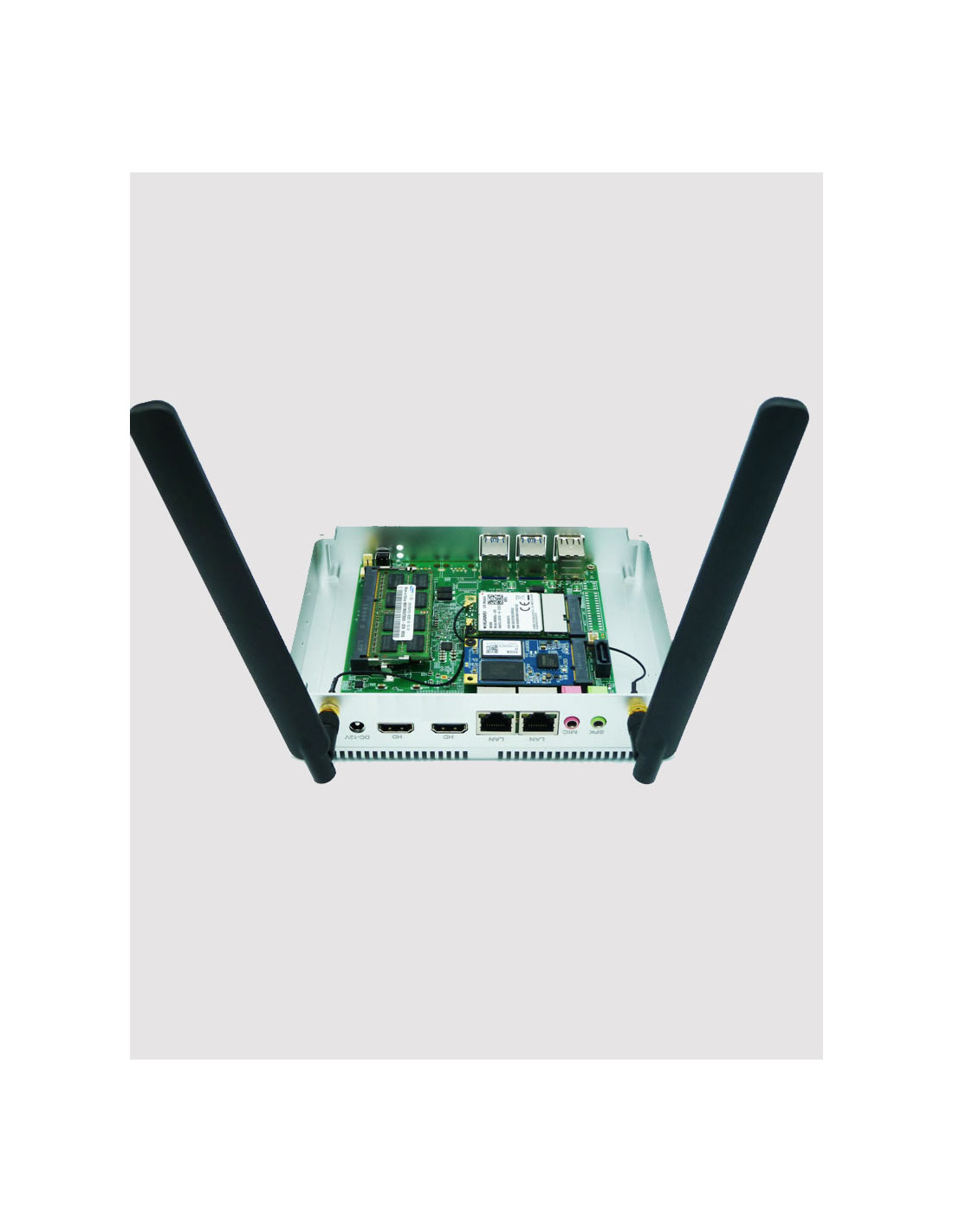

The box has 2 Gigabit Ethernet ports, a powerful Celeron N3150 processor, supports AES-NI, and can be equipped with 2, 4 or 8 GB of RAM to accommodate all the additional memory-consuming pfSense® functions such as pfBlockerNG. The capacities of the Firewall E-WALL EG2x box allow the installation of pfSense®, Untangle®, OPNsense®, IPCOP, Windows 10, Linux, …

Quad-core 1.6 GHz, burst 2.08 Ghz

2 x 1GbE LAN ports

2, 4 or 8 GB RAM DDR3L – 1600 Mhz

1 mPCIe slot

Storage Disk mSATA SSD

Strong points of the Router / Firewall EG2x box

• Intel Celeron N3150 1.6GHz Max 2.08GHz Quad Core 4 thread processor

• 2 GB, 4 GB or 8 GB SO-DIMM DDR3L-1600 DRAM

• 2 Gigabit Ethernet (Realtek RTL8111DL)

• 1 miniPCIe ports including 1 mSATA 3.0 SSD

• Intel HD Graphics (320MHz~640MHz), AES-NI support,

• Boot to mSATA / External USB / SATA

• SATA connector and power connector (cables included)

• 1 LED on the front + reset button,

• 2 USB2.0 Ports and 4 USB3.0 Ports and 1 audio port

• 2*HDMI, 1*MIC, 1*SPK, 2*Wi-Fi antennas, 2*Kensington Lock holes,

• Case without fan, the case serves as a radiator,

• Power supply 12V – 6W

• Case size 173 x 127 x 39, weight 1.5Kg

• Windows 7/8/10 and Linux support for Router, Firewall, IPBX, Probe, IoT, …

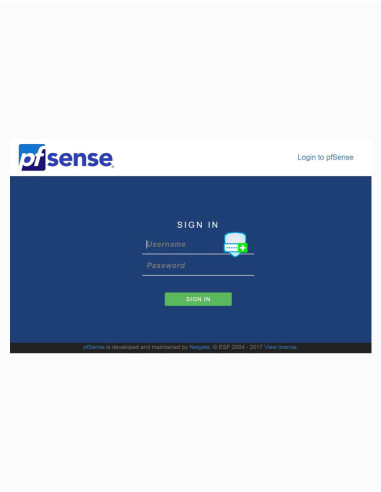

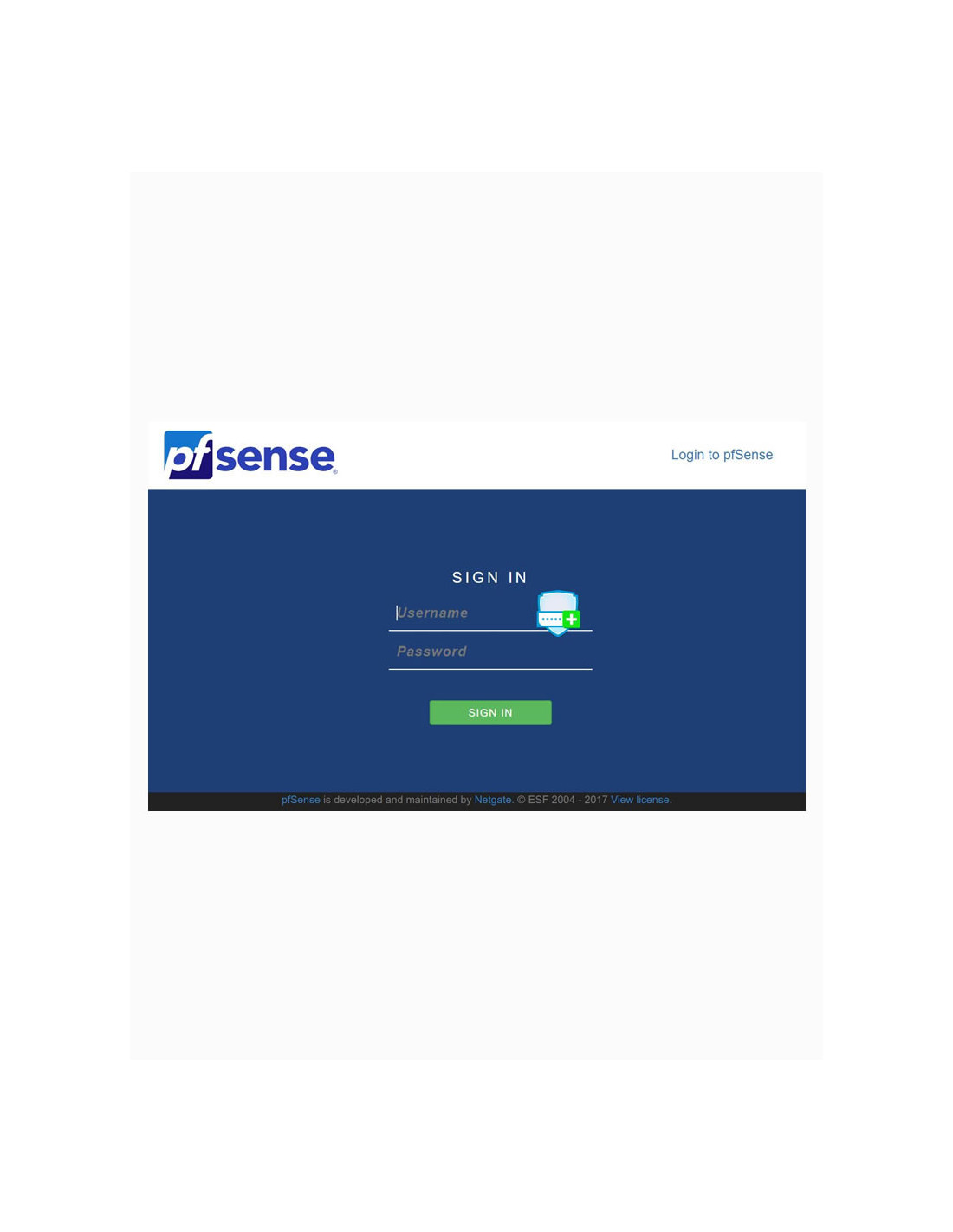

A user-friendly administration interface

Router and Firewall

• Stateful Packet Inspection (SPI)
• GeoIP blocking
• Anti-Spoofing
• Time based rules
• Connection limits
• Dynamic DNS
• Reverse proxy
• Captive portal guest network
• Concurrent IPv4 and IPv6 support
• NAT mapping (inbound/outbound)
• VLAN support (802.1q)
• Configurable static routing
• IPv6 network prefix translation
• IPv6 router advertisements
• Multiple IP addresses per interface
• DHCP server
• DNS forwarding
• Wake-on-LAN
• PPPoE Server

VPN

• IPsec and OpenVPN
• Site-to-site and remote access VPN support
• SSL encryption
• VPN client for multiple operating systems
• L2TP/IPsec for mobile devices
• Multi-WAN for failover
• IPv6 support
• Split tunneling
• Multiple tunnels
• VPN tunnel failover
• NAT support
• Automatic or custom routing
• Local user authentication or RADIUS/LDAP

IPS – Intrusion Prevention System

• Snort-based packet analyzer
• Layer 7 application detection
• Multiple rules sources and categories
• Emerging threats database
• IP blacklist database
• Pre-set rule profiles
• Per-interface configuration
• Suppressing false positive alerts
• Deep Packet Inspection (DPI)
• Optional open-source packages for application blocking

Authentification utilisateur

• Local user and group database
• User and group-based privileges
• Optional automatic account expiration
• External RADIUS authentication
• Automatic lockout after repeated attempts

Qualité de service

• Optional multi-node High Availability Clustering
• Multi-WAN load balancing
• Automatic connection failover
• Bandwidth throttling
• Traffic shaping wizard
• Reserve or restrict bandwidth based on traffic priority
• Fair sharing bandwidth
• User data transfer quotas

Sécurité System

• Web interface security protection
• CSRF protection
• HTTP Referer enforcement
• DNS Rebinding protection
• HTTP Strict Transport Security
• Frame protection
• Optional key-based SSH access

Proxy et gestion de contenu

• HTTP and HTTPS proxy
• Non Transparent or Transparent caching proxy
• Domain/URL filtering
• Anti-virus filtering
• SafeSearch for search engines
• HTTPS URL and content screening
• Website access reporting
• Domain Name blacklisting (DNSBL)
• Usage reporting for daily, monthly, etc.

Configuration

• Web-based configuration
• Setup wizard for initial configuration
• Remote web-based administration
• Customizable dashboard
• Easy configuration backup/restore
• Configuration export/import
• Encrypted automatic backup to Netgate server
• Variable level administrative rights
• Multi-language support
• Simple updates
• Forward-compatible configuration
• Serial console for shell access and recovery options

Reporting & Monitoring

• Dashboard with configurable widgets
• Local logging
• Remote logging
• Local monitoring graphs
• Real-time interface traffic graphs
• SNMP monitoring
• Notifications via web interface, SMTP, or Growl
• Hardware monitoring
• Networking diagnostic tools

Our Firewall pre-equipped and pre-installed under pfSense® 2.6.x, ready to use!

Our entire range of E-WALL EG2x firewalls under pfSense® is equipped with SSD hard disks with 2, 4 or 8 GB of RAM. The disks are installed by our technical teams, the firewall is tested on the network before shipment with the latest version of pfSense®, to allow faster installation in the company.

The different options available :

• 16 to 512 GB solid state drive
• WiFi card b/g/n
• 4G LTE card
• OPNsense® Cluster
• Internet link VDSL, SDSL, FO
• Centralization of logs
• Assistance 8/18h – 5/7d
• Firewall outsourcing
• Remote installation
• On-site installation

pfSense® is a registered trademark and service mark of Electric Sheep Fencing LLC.
E-WALL® is a registered trademark belonging to B2M Innovation S.A.S.
