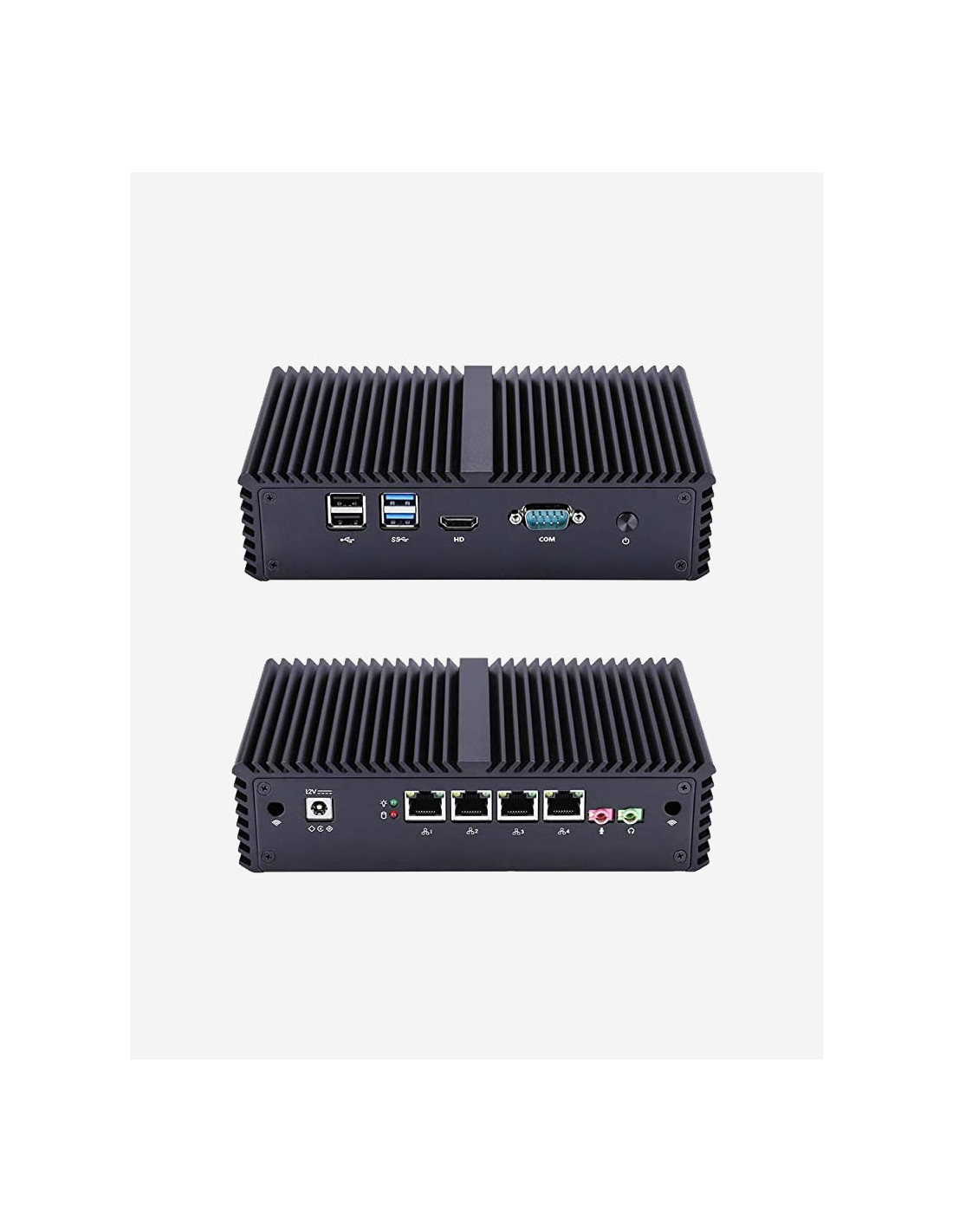

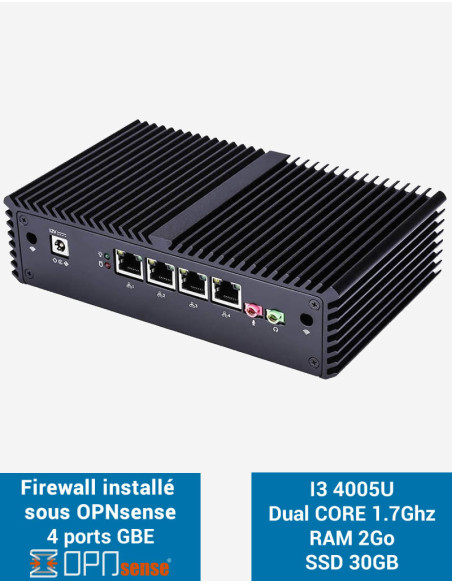

Appliance Firewall Q3x 4 ports, installed with OPNsense®

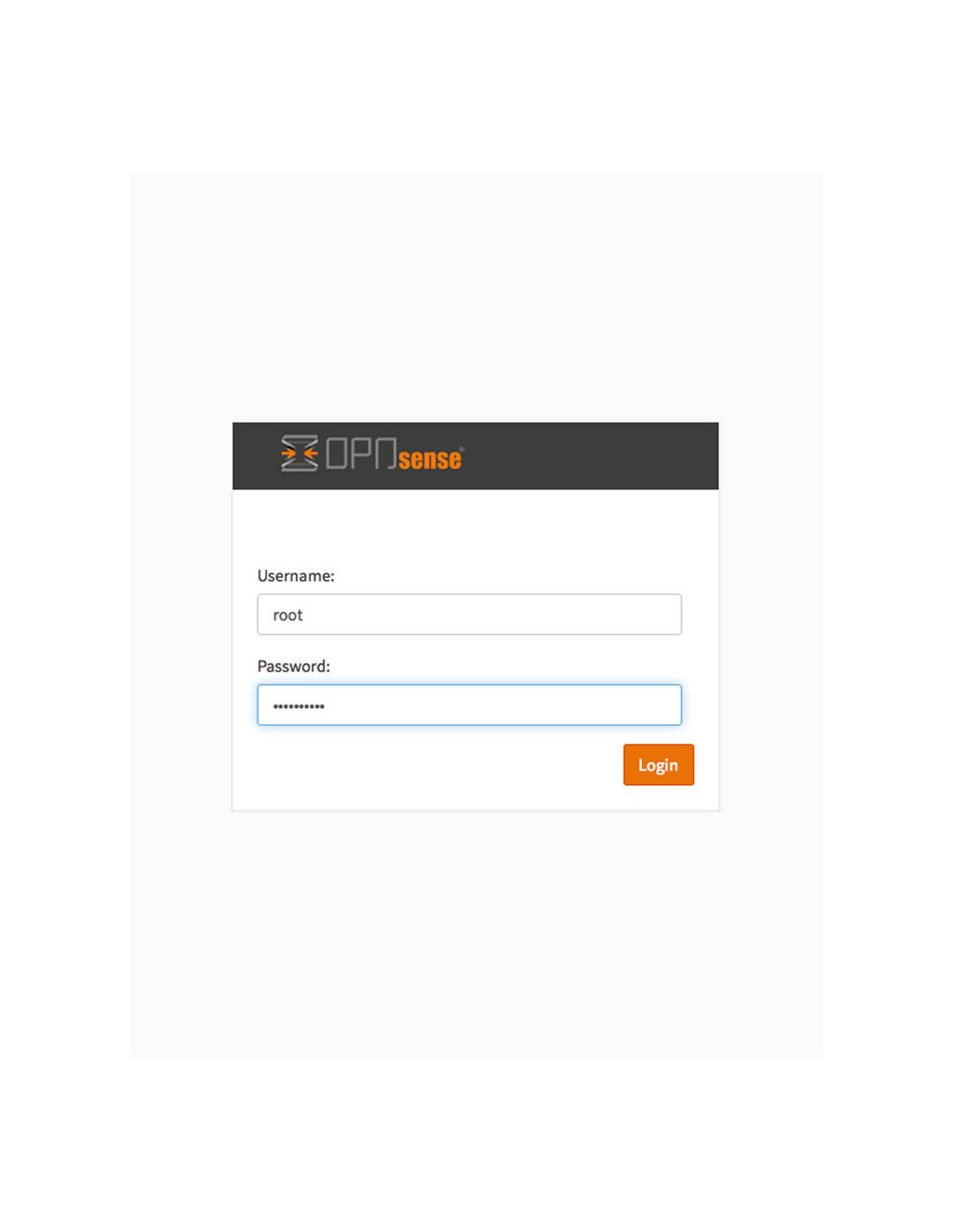

Installation benefit of OPNsense® 23.x included, Firewall ready to use
Intel i3 4005U Dual Core 1.7 Ghz Processor - 2GB RAM - 30GB SSD Storage for OS
SATA SSD disk support and WIFI card support - Standard 4G SIM slot
4 customizable Gigabit ports (WAN / LAN / DMZ / OPT) - AES-NI support
Fanless low consumption case (15W), no noise
Small footprint - EU format power supply
L’Appliance Q3x est un boitier Firewall with 4 Gigabit ports, Intel x86 architecture and compatible with all Firewall OSes on the market. You can start the box on a USB key and install …
Compatible OS Firewall:
Compatible OS Microsoft / Linux:
Compatible OS Router / IoT / Others:
Celeron® 2955U to I7 5500U
2 or 4 core / 2 or 4 Thread
From 1.4 Ghz to 2.4 Ghz burst 3.0Ghz
DDR3L SO-DIMM
2GB / 4GB / 8GB
4 port
GIGABIT RJ45
1 Mini-PCI Express slot
1 Disk / SSD 2.5″
1 SIM + mPCIe slot
The Q3x box includes several mPCIe slots to support the installation of a WIFI card or a 4G LTE card and to allow the backup of the main internet link.
HDMI connector to connect a screen.
Carte Intel® HD Graphics / HD 4200 / HD 4400 / HD5500
A jumper on the motherboard allows the box to start automatically. This allows during a power outage to automatically start the Appliance when the power supply is restored. Important for security systems, monitoring, etc.
To allow the boxes to be used easily behind a screen, a VESA system is delivered with the screws.
The packaging box is free of any inscription. No identification possible.
The box can be delivered with a power cord for each country:
Quality internal card equipped :
Environmental characteristics:
