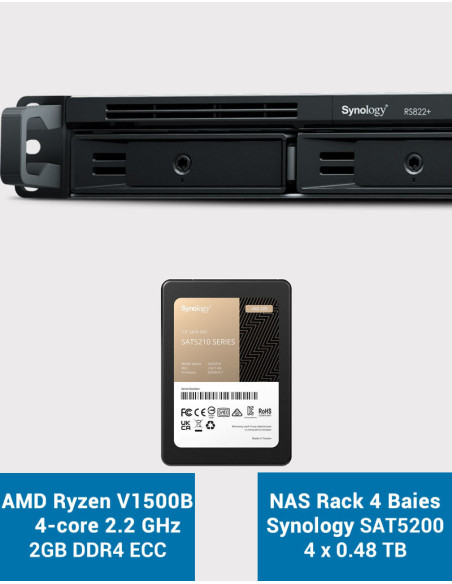

Synology RS822+ 2GB NAS Server Rack 1U SSD SAT5200 1.92TB (4x480GB)
    Synology

    Synology RS822+ 2GB NAS Server Rack 1U SSD SAT5200 1.92TB (4x480GB)

    €1,649.58

    Including €1.58 for ecotax

    Delivered within 24/48h

    SYNOLOGY RackStation RS822+ 2GB 1.92TB Capacity
    Synology SSD SAT5200 disks pre-installed and tested in the workshop. Ready to use!
    NAS Rack 1U 4-Bay - DDR4 ECC 2GB memory expandable to 32GB (2x16GB)
    4 GbE Ports - PCIe 1xGen3 x8 expansion slot - 1 eSATA Port - 2 USB 3.2 Gen1 ports
    SATA 6Gb/s 2.5" or 3.5" Disk - SSD Support - Internal Maximum Capacity 64TB
    Product composition:
    RS822+ 2GB NAS Rack 1U 4 slots 3,5" and/or 2,5" (3-year manufacturer's warranty)
    Synology SSD SAT5200 480GB drives (5-year manufacturer's warranty)

    Quantity
      In stock

    Synology RackStation RS822+

    RackStation RS822+​/​RS822RP+

    Reliable data management for remote and branch offices

    An all-in-one edge storage solution

    The compact 1U 4-bay Synology RackStation RS822+/RS822RP+ with its storage and connectivity expandability coupled with the powerful Synology DiskStation Manager (DSM) operating system is an ideal edge storage solution for branch offices and small and medium-sized businesses.

    CPU

    AMD Ryzen V1500B

    4-core 2.2 GHz

    Performance

    More than 2103/1074 MB/s

    sequential read/write

    Scalability

    Synology Hybrid RAID, Basic, JBOD, RAID 0, 1, 5, 6 and 10

    Network

    4 x 1GbE LAN ports

    Option 10/25 GBE

    ECC Memory

    ECC DDR4 Memory

    2 GB expandable to 32 GB

    Expansion discs

    Expandable up to 8 drives

    with 1 Synology RX418 expansion unit

    Flexible and Versatile Storage for Effective Data Management

    Synology RackStation RS822+/RS822RP+ is a 4-bay rackmount NAS enclosed in a compact 1U chassis. Running the powerful Synology DiskStation Manager (DSM) operating system, it is ideal for data backup, sharing, and synchronization. It is therefore ideal for data backup, sharing and synchronization. Running the powerful Synology DiskStation Manager (DSM) operating system, it is ideal for data backup, sharing, and synchronization. Its small size, stable performance, and storage scalability makes it suitable for branch offices and small and medium-sized businesses with everincreasing data management needs.

    Highlights

    • High Performance
      Over 2,103/1,074 MB/s sequential read/write throughput supports stable data transfers
    • Easy Expansion
      Scale up to 8 drives with one Synology RX418 Expansion Unit
    • Flexible connectivity
      Four 1GbE ports support network failover and load balancing, with optional 10/25GbE expansions available
    • SSD caching support
      Improved random IOPS performance with optional SSD cache
    • Virtualization Ready
      Configure and run common virtual machines on your Synology NAS
    • Protect and Restore Data in a Snap
      Back up critical data and reduce your Recovery Time Objective (RTO) with Snapshot Replication.
    • Protect your physical assets with 24/7 monitoring
      Surveillance Station is feature-rich with easy-to-use management tools.

    Built for reliability

    RS822+/RS822RP+ comes with four Gigabit RJ-45 ports which can be bonded with Link Aggregation to enable automatic network failover and load balancing.

    Two RS822+/RS822RP+ units can be paired using Synology High Availability to form a reliable active/passive server cluster, maximizing service uptime.

    Furthermore, the RS822RP+ features a redundant power supply for an extra edge in service continuity.

    Synology Rackspace

    Room for expansion

    Easily adjust the RS822+/RS822RP+ to match your usage environment, whether it needs performance, faster networking, or higher storage capacity.

    Synology Extension RX418

    Storage expansion

    Expand to 8 drive bays with one RX418 expansion unit.

    Synology Cache SSD

    SSD cache

    Boost read/write IOPS over HDD-only arrays by 16 times or more with NVMe or SATA SSD Cache.

    Synology Extension 10/25 GBe

    10/25GbE ready

    Improve I/O with faster SFP+/SFP28 or RJ-45 networking.

    File Server

    Edge storage for distributed teams

    Provide secure and convenient multi-platform file access, sharing, and synchronization across different locations.

    Private file cloud

    Enable effective collaboration with Synology Drive

    Synology Drive provides remote data access, synchronization, on-demand file restoration, and backup via handy desktop and mobile applications.

    Multi-platform support

    Access personal and shared data from mobile app, desktop client, web browser, or another Synology system: Any changes you make are automatically synced to other devices as soon as they are connected.

    Collaborate in real time

    Integrate with Synology Office to enable concurrent editing on documents, spreadsheets, and slides, with support for conversion to and from Microsoft Word, Excel, PowerPoint, and OpenDocument files.

    Synology Private Cloud
    Synology Multi-site Synchronization

    Efficient multi-site synchronization

    Connect teams with Hybrid Share

    Utilize Hybrid Share to store large sets of data in the cloud, leveraging the powerful bandwidth of our data centers to stream requested files to local NAS deployed at the branch offices.

    Data on demand

    With Hybrid Share-enabled folders, remote teams retain full access to the most up-to-date files while benefiting from reduced local storage footprint and bandwidth usage.

    Cache data used locally

    Frequently accessed files are kept on the local NAS, allowing users to access them with LAN network speed. Files and folders can also be manually pinned to prevent them from being overwritten when the cache is full.

    Synology Backup

    Multi-endpoint data protection

    Design an effective backup strategy to maximize system availability with a host of native and license-free solutions.

    Consolidated backup server

    Endpoint, VM, and NAS/SAN protection

    Securely back up Windows and Linux endpoints, Synology servers, and VMware® and Hyper-V® virtual machines with Active Backup for Business.

    Microsoft 365 and Google Workspace

    Centralize backups of Microsoft 365 and Google Workspace data to protect it from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and savings in terms of storage and bandwidth consumption.

    Multi-Layered Backup
    Multi-Layered Backup

    Data protection and recovery

    Hyper Backup

    Back up files, LUNs, installed applications, and system configurations to destinations including Synology C2 Storage,2 public cloud platforms, USB devices, file servers, local folders, or other Synology systems.

    Set and forget backup tasks with regular schedules, enhance security with fine-grained user permissions and encryption, keep backup sizes small with built-in deduplication, and restore data flexibly with multi-versioning.

    Snapshot Replication

    Snapshot Replication enables configurable point-in-time snapshots of shared folders and VM storage with an RPO as low as 5 minutes and recovery within seconds.

    Smart Surveillance Synology

    Smart surveillance for small deployments

    Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.

    Simple-to-deploy local surveillance

    Wide compatibility

    Connect up to 40 IP cameras from a selection of over 8,300 validated models thanks to Synology Surveillance Station’s wide camera compatibility.

    Multi-platform convenience

    Monitor live streams or watch recordings from web browser, desktop client, or the DS cam mobile app.

    Secure and private

    Footage is stored locally for easier compliance with data protection regulations and further protected from unauthorized access with industry-standard AES-256 encryption.

    Synology Smart Surveillance
    Synology Smart Surveillance

    Flexible monitoring of multiple locations

    Assisted mass deployment

    Automatically locate cameras within a set IP range, and configure units in batch by importing spreadsheets or by replicating settings to new cameras.

    Centralized management and monitoring

    Stay on top of your deployment by previewing triggered events directly on multi-floor or even multi-location maps, with online map integration for Google Maps and OpenStreetMap.

    Video analytics

    Take advantage of intelligent monitoring features such as motion detection, no idle zone, foreign object detection, and anomaly detection to cater the most common surveillance scenarios.

    Sharing and synch SYNOLOGY

    Keeping Teams Connected

    With Hybrid Share-enabled folders, remote teams retain full access to the most up-to-date files while benefiting from reduced local storage footprint and bandwidth usage.

    File Sharing and Synchronization for Hybrid Teams

    A compact size, easy installation, and powerful remote management options make the RS822+/RS822RP+ suitable for deployment as an edge server to provide convenient and effective file access, sharing, and synchronization across multiple sites
    • Wide network protocol support ensures seamless file sharing across Windows, Mac, and Linux platforms, while compatibility with Windows AD and LDAP enables easy integration into any existing network environment
    • Hybrid Share combines reliable on-premises storage and efficient syncing of shared folders in the cloud to enable seamless cross-site synchronization and local file access at LAN speed
    • Synology Drive is a private cloud file management solution that enables remote data access, synchronization, on-demand file restoration, and backup via handy desktop and mobile applications
    • Cloud Sync keeps your Dropbox, Google Drive, Microsoft OneDrive, Baidu, and Box storage in sync with your Synology server
    • Seamless file sharing capability is combined with a high level of security, including HTTPS support, a built-in firewall, and multiple IP and account intrusion auto-blocking mechanisms

    The different elements of RS822+

    • 1 Power Indicator
    • Power Button
    • Alert Indicator
    • Drive status indicator
    • Mute Button
    • Status Indicator
    • 7 Disc trays
    • 8 Power Port
    RS822+ backpanel
    RS822+ backpanel
    • 9 Fans
    • 10 Console Port
    • 11 PCI Express Expansion Slot
    • 12 1GbE RJ-45 Ports
    • 13 Reset Button
    • 14 USB 3.2 Gen 1 Ports
    • 15 eSATA Port

    The different elements of the RS822RP+

    • 1 Power Indicator
    • Power Button
    • Alert Indicator
    • Drive status indicator
    • Mute Button
    • Status Indicator
    • 7 Disc trays
    • 8 Power Port
    RS822RP+ backpanel
    RS822RP+ backpanel
    • 9 Fans
    • 10 Console Port
    • 11 PCI Express Expansion Slot
    • 12 1GbE RJ-45 Ports
    • 13 Reset Button
    • 14 USB 3.2 Gen 1 Ports
    • 15 eSATA Port
    • 16 Redundant Power LEDs

    Product Details

    RS822+SAT5210SSD1920Go

    Data sheet

    Brand
    Synology
    Model
    Synology RackStation RS822+
    CPU type
    AMD Ryzen V1500B
    Number of CPU sockets
    1
    Number of Cores / Threads
    4C / 4T
    CPU frequency
    2.2 GHz
    Memory capacity
    2GB
    Memory type
    DDR4 ECC SODIMM
    Number of memory slots
    2 slot
    Maximum memory capacity
    32 GB (16 GB x 2)
    Hardware Encryption Engine (AES-NI)
    Non
    Number of disk bays
    4
    Maximum number of disk bays with extension
    4 + 4 (RX418 x 1)
    M.2 drive slot
    No
    Compatible disc type
    2.5" SATA SSD
    3.5" SATA HDD
    Hotswap disk
    Oui
    Installed disk capacity
    1920GB
    Disk model installed
    Synology SAT5210
    Disk interface
    Serial ATA 6Gb/s (SATA Revision 3)
    Supported RAID type
    JBOD
    RAID 0
    RAID 1
    SHR
    Supported file system
    BTRFS
    EXT3
    EXT4
    FAT
    HFS+
    NTFS
    Number of expansion ports
    1 eSATA port
    Scalable
    Yes
    PCIe Expansion
    1 x Gen3 x8 slot (x4 link)
    Number of USB Ports
    2 x USB 3.2 Gen 1*
    Number of network ports
    4 x 1GbE (RJ45)
    Size (Height x Width x Depth)
    44 mm x 480 mm x 492.6 mm
    Weight
    6.4 kg
    Sound level
    27.4 dB(A)
    Mains input voltage
    100V to 240V AC
    Power frequency
    50/60Hz, single phase
    Color
    Black
