Appliance Firewall Q5x 6 ports, installed under pfSense® CE
Pre-installed under pfSense® CE 2.6.x (Community Edition) included, Firewall ready to use.
Intel Celeron 3965U Dual core processor / 2GB RAM / 6 Intel GigE / 16GB SSD
1 miniPCIe + 1 mSATA - Support SATA / SSD disk and support WIFI card
6 customizable Gigabit ports (WAN / LAN / DMZ / OPT1 / OPT2 / OPT3)
AES-NI support for accelerating VPN encryption
Low consumption fanless box (20W), no noise - Small footprint
EU / UK / US format power supply - 1 year workshop warranty

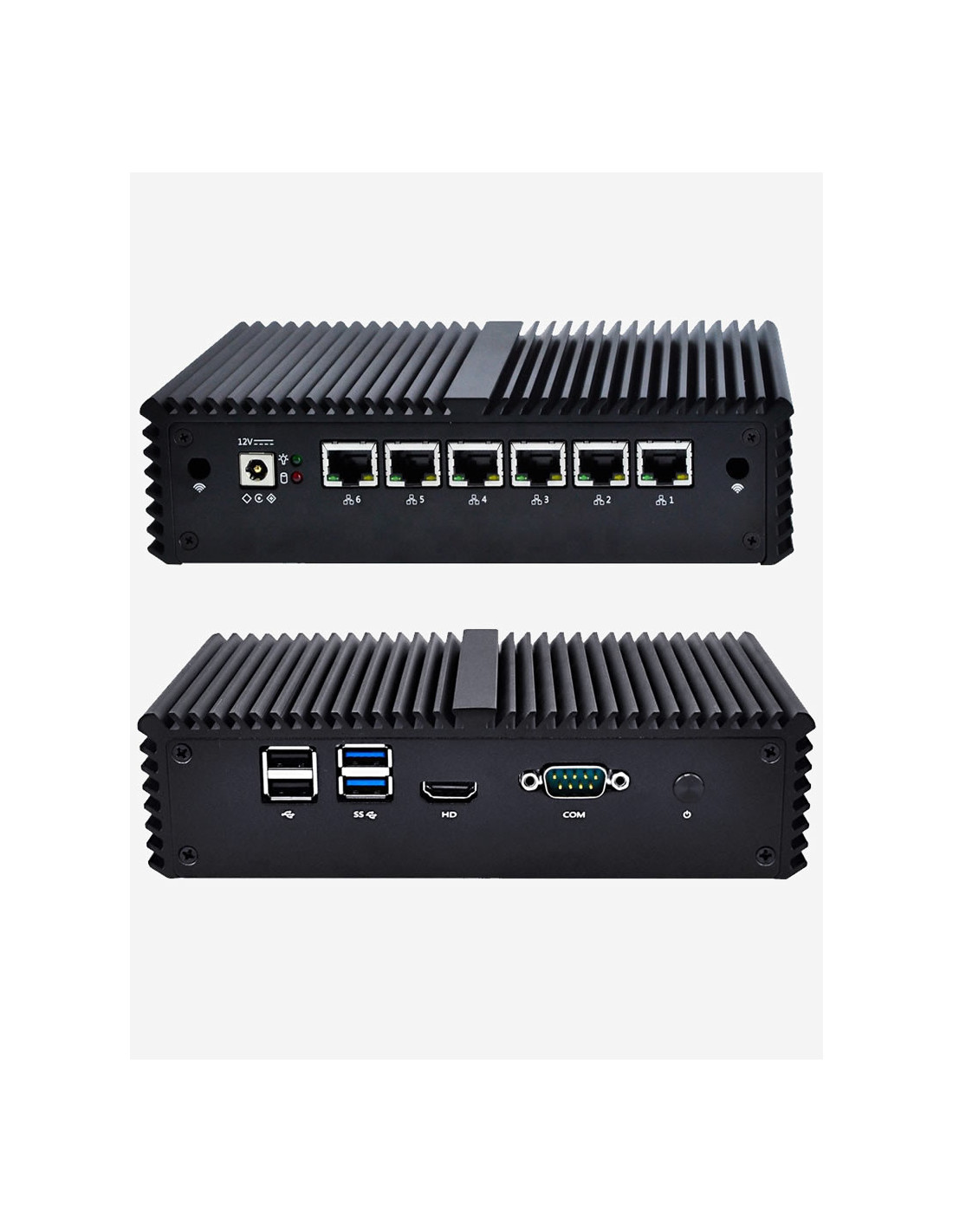

The Q5x Appliance is a Firewall box with 6 Gigabit ports, an Intel x86 architecture and compatible with all Firewall OSes on the market. You can start the box on a USB key and install …
Compatible OS Firewall :
Compatible OS Microsoft / Linux:
Compatible OS Router / IoT / Others:
Celeron® 3855U to I7 7500U
2 or 4 core / 2 or 4 Thread
From 1.6 Ghz to 2.7 Ghz burst 3.5Ghz
DDR4 SO-DIMM
2GB / 4GB / 8GB /16GB
6 ports
GIGABIT RJ45
1 Mini-PCI Express slot
1 Disk / SSD 2.5″
1 SIM + mPCIe slot
1 2230 M2 slot
The Q5x box includes several mPCIe slots to support the installation of a WIFI card or a 4G LTE card and allow the backup of the main internet link.
HDMI connector to connect a screen.
Intel® HD Graphics HD510 / HD 520 / HD 610 / HD 620
A jumper on the motherboard allows the box to start automatically. This allows during a power outage to automatically start the Appliance when the power supply is restored. Important for security systems, monitoring, etc.
To allow the boxes to be used easily behind a screen, a VESA system is delivered with the screws.
The packaging box is free of any inscription. No identification possible.
The box can be delivered with a power cord for each country:
Quality internal card equipped :
Environmental characteristics :
