Firewall OPNsense Q1x J1900 4 Gigabit ports 8GB SSD 30GB
    Qotom

    Firewall OPNsense Q1x J1900 4 Gigabit ports 8GB SSD 30GB

    Reference: Q1J194830O
    €357.00
    Delivered within 24/48h

    Appliance Firewall OPNsense® Q1x J1900 4 Gigabit ports
    Celeron J1900 Quad Core Processor / 8GB / 4 GbE / SSD 30GB
    Installation benefit of OPNsense® 23.x included, Firewall ready to use.
    SATA SSD disk support and WIFI card support - 1 standard SIM slot

    4 customizable Gigabit ports (WAN / BACKUP / LAN / DMZ)
    Fanless low consumption case (15W), no noise
    Small footprint - EU format power supply - 1 Year Warranty Return To Workshop

    Quantity
      In stock

    pfSense or OPNsense Firewall Q1x 4 LAN

    Appliance / Firewall Q1x

    pfSense or OPNsense appliance

    Windows/Linux Mini PC

    IoT appliance

    3CX appliance

    4-port gigabit appliance



    The Q1x Appliance is aFirewall box with an Intel x86 architectureand compatible with all Firewall OSes on the market. You can start the box on a USB key and install …

    Compatible OS Firewall:

    • pfSense,
    • OPNsense,
    • Untangle,
    • IPFire,
    • Sophos,
    • Linux iptables,

    Compatible OS Microsoft / Linux:

    • Windows 10,
    • FreeBSD,
    • Ubuntu,
    • Debian,
    • CentOS
    • Red Hat,

    Compatible OS Router / IoT / Others:

    • VyOS,
    • 3CX,
    • OpenWrt,
    • Windows 10 IoT,
    • RIOT,
    • Contiki NG,
    • FreeRTOS

    Celeron® J1900

    4 core / 2 Ghz burst 2.7

    DDR3L SO-DIMM

    2GB / 4GB / 8GB

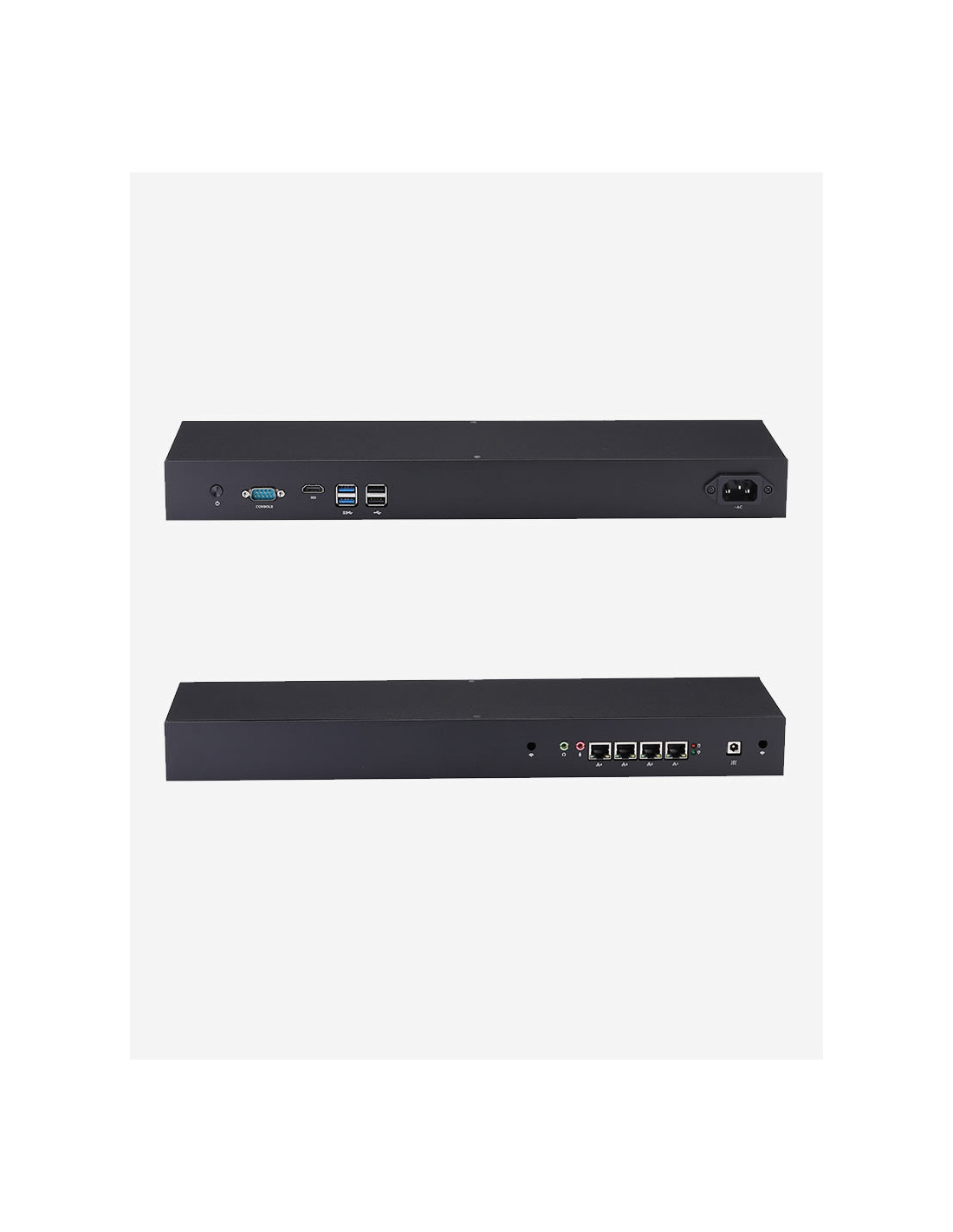

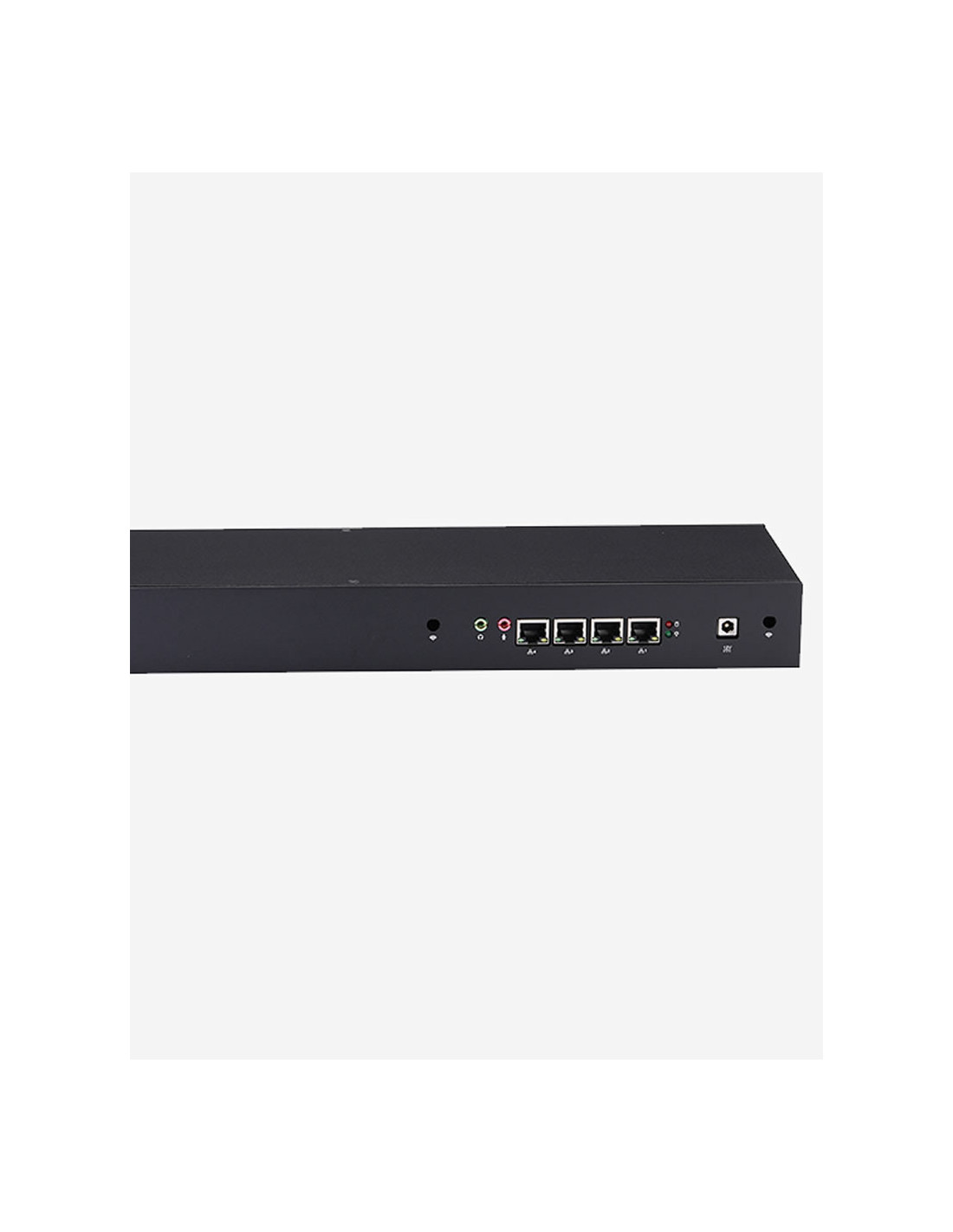

    4 port

    GIGABIT RJ45

    Consolidate

    1 Mini-PCI Express slot

    1 Disk / SSD 2.5″

    1 SIM + mPCIe slot

    1 2230 M2 slot

    Flexible PCIe expansion

    HDMI output

    Auto-boot Jumper

    The Q1x box includes several mPCIe slots to support the installation of a WIFI card or a 4G LTE card and allow the backup of the main internet link.

    HDMI connector to connect a screen.

    Carte Intel® HD Graphics

    A jumper on the motherboard allows the box to start automatically. This allows during a power outage to automatically start the Appliance when the power supply is restored. Important for security systems, monitoring, etc.

    VESA-compatible

    Blank packaging

    Power supply

    To allow the boxes to be used easily behind a screen, a VESA system is delivered with the screws.

    The packaging box is free of any inscription. No identification possible.

    The box can be delivered with a power cord for each country:

    • EU
    • UK
    • AU
    • US
    • CN

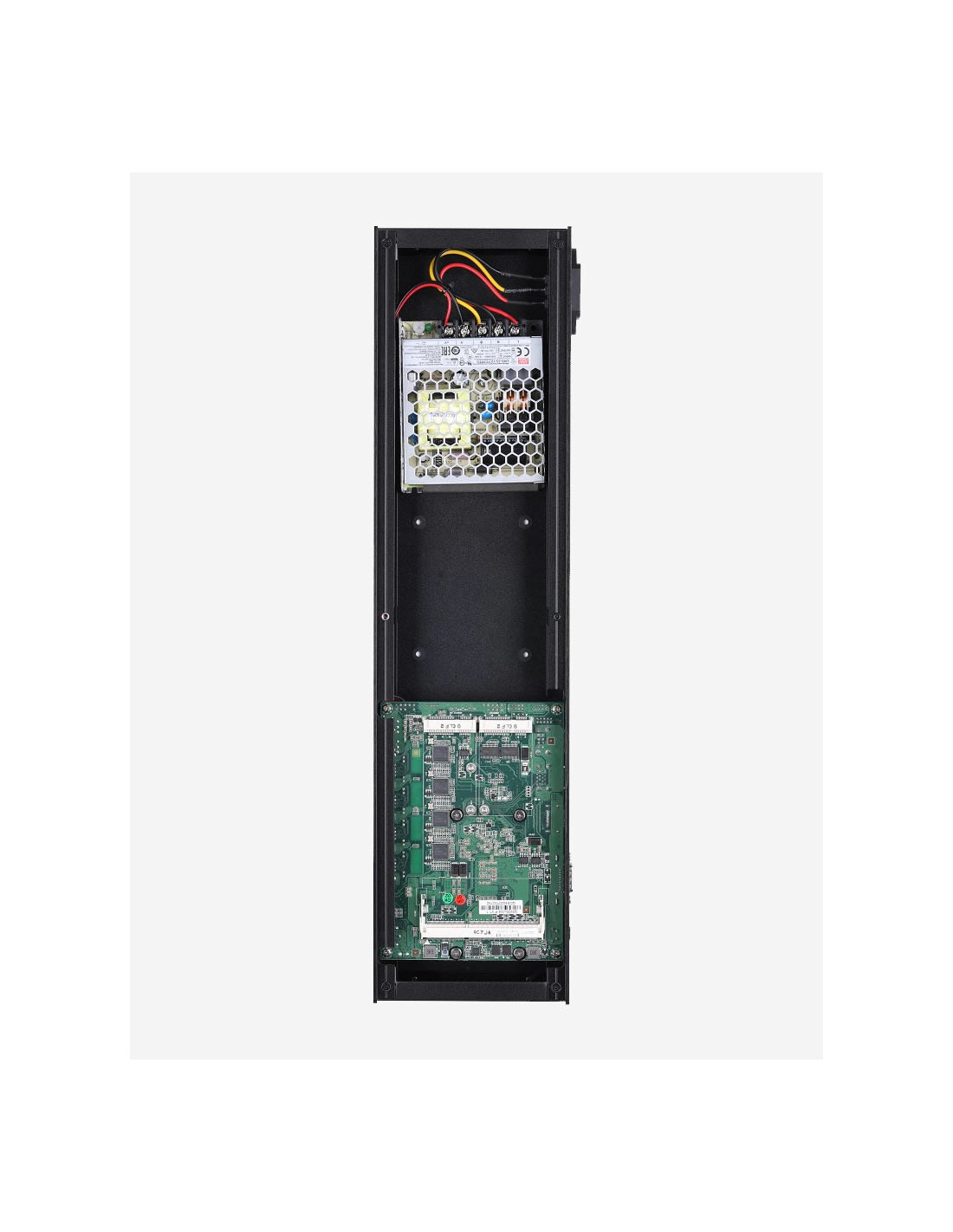

    Q1x 4 LAN internal card

    Quality internal card equipped :

    • 1 x DDR3L-SODIMM 1600Mhz 1.35V Non-ECC memory slot
    • Memory capacity 2GB / 4GB / 8GB Max
    • 1 Connector + SATA Power Supply
    • 1 x mPCIe slot for SSDs from 16GB to 2 TB,
    • 1 x mPCIe slot for WIFI card (Full size)
    • 1 x mPCIe slot for 4G card (Half Size)
    • 1x SIM Slot
    • 4 x Intel I211-AT Gigabit LAN
    • 1 x HD Video (HDMI)
    • 3 x USB2.0, 1 x USB3.0
    • HDD LED, Power LED
    • 1 x DC 12V Connector

    Environmental characteristics:

    • Aluminum Alloy Case
    • Size 135 x 128 x 38mm
    • Weight 0.7 Kg
    • Cooling Type: Fanless
    • Operating temperature: 0°C – 50° Celsius
    Environmental characteristics

    Product Details

    Data sheet

    Model
    Q1x
    Operating system
    OPNsense®
    CPU type
    Intel® Celeron® J1900
    Number of Cores / Threads
    4C / 4T
    CPU frequency
    2.0 GHz - Burst 2.42 Ghz
    Memory capacity
    8GB
    Memory type
    DDR3L SODIMM
    Number of memory slots
    1 slot
    Maximum memory capacity
    8GB
    Hardware Encryption Engine (AES-NI)
    Oui
    Number of disk bays
    1
    M.2 drive slot
    No
    Compatible disc type
    miniPCIe mSATA
    Hotswap disk
    No
    Installed disk capacity
    30GB
    PCIe Expansion
    1 x mSATA + 1 x miniPCI express (one with SIM socket)
    Number of USB Ports
    1 x USB 3.0
    3 x USB 2.0
    Number of network ports
    4 x 1GbE (RJ45)
    Ethernet Chipset
    Intel i211AT
    WIFI / LTE card
    None
    SIM slot
    Standard SIM
    Output video
    1 x VGA
    Chipset video
    Intel HD Graphics
    Console Port
    No
    Size (Height x Width x Depth)
    75 mm x 218 mm x 261 mm
    Weight
    0.95Kg
    Mains input voltage
    100V to 240V AC
    Power frequency
    50/60Hz, single phase
    Manufacturer's warranty
    1-Year hardware warranty
    Audio
    No
    Color
    Black
    Brand
    Qotom

    Specific References

    EAN13
    3701446227828
    MPN
    Q1J194830O

    Quick Compare

    Product
    Firewall OPNsense® Q1x J1900 4 Gigabit ports 8GB SSD 30GB Firewall OPNsense Q1x J1900 4 Gigabit ports 8GB SSD 30GB Firewall pfSense® Q1x J1900 4 Gigabit ports 2GB SSD 30GB Firewall pfSense Q1x J1900 4 Gigabit ports 2GB SSD 30GB Firewall pfSense® Q1x J1900 4 Gigabit ports 2GB SSD 60GB Firewall pfSense Q1x J1900 4 Gigabit ports 2GB SSD 60GB Firewall pfSense® Q1x J1900 4 Gigabit ports 4GB SSD 60GB Firewall pfSense Q1x J1900 4 Gigabit ports 4GB SSD 60GB
    Availability
    Price
    €357.00
    €351.00
    €359.00
    €361.00
    Description

    Appliance Firewall OPNsense® Q1x J1900 4 Gigabit ports
    Celeron J1900 Quad Core Processor / 8GB / 4 GbE / SSD 30GB
    Installation benefit of OPNsense® 23.x included, Firewall ready to use.
    SATA SSD disk support and WIFI card support - 1 standard SIM slot

    4 customizable Gigabit ports (WAN / BACKUP / LAN / DMZ)
    Fanless low consumption case (15W), no noise
    Small footprint - EU format power supply - 1 Year Warranty Return To Workshop

    Appliance Firewall pfSense® Q1x J1900 4 Gigabit ports
    Celeron J1900 Quad Core Processor / 2GB / 4 GbE / SSD 30GB
    Installation benefit of pfSense® CE 2.6.x (Community Edition) included, Firewall ready to use.
    SATA SSD disk support and WIFI card support - 1 standard SIM slot
    4 customizable Gigabit ports (WAN / BACKUP / LAN / DMZ)
    Fanless low consumption case (15W), no noise
    Small footprint - EU format power supply - 1 Year Warranty Return To Workshop

    Appliance Firewall pfSense® Q1x J1900 4 Gigabit ports
    Celeron J1900 Quad Core Processor / 2GB / 4 GbE / SSD 60GB
    Installation benefit of pfSense® CE 2.6.x (Community Edition) included, Firewall ready to use.
    SATA SSD disk support and WIFI card support - 1 standard SIM slot
    4 customizable Gigabit ports (WAN / BACKUP / LAN / DMZ)
    Fanless low consumption case (15W), no noise
    Small footprint - EU format power supply - 1 Year Warranty Return To Workshop

    Appliance Firewall pfSense® Q1x J1900 4 Gigabit ports
    Celeron J1900 Quad Core Processor / 4GB / 4 GbE / SSD 60GB
    Installation benefit of pfSense® CE 2.6.x (Community Edition) included, Firewall ready to use.
    SATA SSD disk support and WIFI card support - 1 standard SIM slot
    4 customizable Gigabit ports (WAN / BACKUP / LAN / DMZ)
    Fanless low consumption case (15W), no noise
    Small footprint - EU format power supply - 1 Year Warranty Return To Workshop

    Model
    Q1x Q1x Q1x Q1x
    Operating system
    OPNsense® pfSense® CE pfSense® CE pfSense® CE
    CPU type
    Intel® Celeron® J1900 Intel® Celeron® J1900 Intel® Celeron® J1900 Intel® Celeron® J1900
    Number of Cores / Threads
    4C / 4T 4C / 4T 4C / 4T 4C / 4T
    CPU frequency
    2.0 GHz - Burst 2.42 Ghz 2.0 GHz - Burst 2.42 Ghz 2.0 GHz - Burst 2.42 Ghz 2.0 GHz - Burst 2.42 Ghz
    Memory capacity
    8GB 2GB 2GB 4GB
    Memory type
    DDR3L SODIMM DDR3L SODIMM DDR3L SODIMM DDR3L SODIMM
    Number of memory slots
    1 slot 1 slot 1 slot 1 slot
    Maximum memory capacity
    8GB 8GB 8GB 8GB
    Hardware Encryption Engine (AES-NI)
    Oui Oui Oui Oui
    Number of disk bays
    1 1 1 1
    M.2 drive slot
    No No No No
    Compatible disc type
    miniPCIe mSATA miniPCIe mSATA miniPCIe mSATA miniPCIe mSATA
    Hotswap disk
    No No No No
    Installed disk capacity
    30GB 30GB 60GB 60GB
    PCIe Expansion
    1 x mSATA + 1 x miniPCI express (one with SIM socket) 1 x mSATA + 1 x miniPCI express (one with SIM socket) 1 x mSATA + 1 x miniPCI express (one with SIM socket) 1 x mSATA + 1 x miniPCI express (one with SIM socket)
    Number of USB Ports
    3 x USB 2.0
    1 x USB 3.0
    3 x USB 2.0
    1 x USB 3.0
    3 x USB 2.0
    1 x USB 3.0
    3 x USB 2.0
    1 x USB 3.0
    Number of network ports
    4 x 1GbE (RJ45) 4 x 1GbE (RJ45) 4 x 1GbE (RJ45) 4 x 1GbE (RJ45)
    Ethernet Chipset
    Intel i211AT Intel i211AT Intel i211AT Intel i211AT
    WIFI / LTE card
    None None None None
    SIM slot
    Standard SIM Standard SIM Standard SIM Standard SIM
    Output video
    1 x VGA 1 x VGA 1 x VGA 1 x VGA
    Chipset video
    Intel HD Graphics Intel HD Graphics Intel HD Graphics Intel HD Graphics
    Console Port
    No No No No
    Size (Height x Width x Depth)
    75 mm x 218 mm x 261 mm 75 mm x 218 mm x 261 mm 75 mm x 218 mm x 261 mm 75 mm x 218 mm x 261 mm
    Weight
    0.95Kg 0.95Kg 0.95Kg 0.95Kg
    Mains input voltage
    100V to 240V AC 100V to 240V AC 100V to 240V AC 100V to 240V AC
    Power frequency
    50/60Hz, single phase 50/60Hz, single phase 50/60Hz, single phase 50/60Hz, single phase
    Manufacturer's warranty
    1-Year hardware warranty 1-Year hardware warranty 1-Year hardware warranty 1-Year hardware warranty
    Audio
    No No No No
    Color
    Black Black Black Black
    Brand
    Qotom Qotom Qotom Qotom
