Firewall pfSense Q1x J1900 4 Gigabit ports 2GB SSD 500GB
Qotom

Firewall pfSense Q1x J1900 4 Gigabit ports 2GB SSD 500GB

Reference: Q1J1942500P
€385.00
€308.00 Save 20%
Delivered within 24/48h

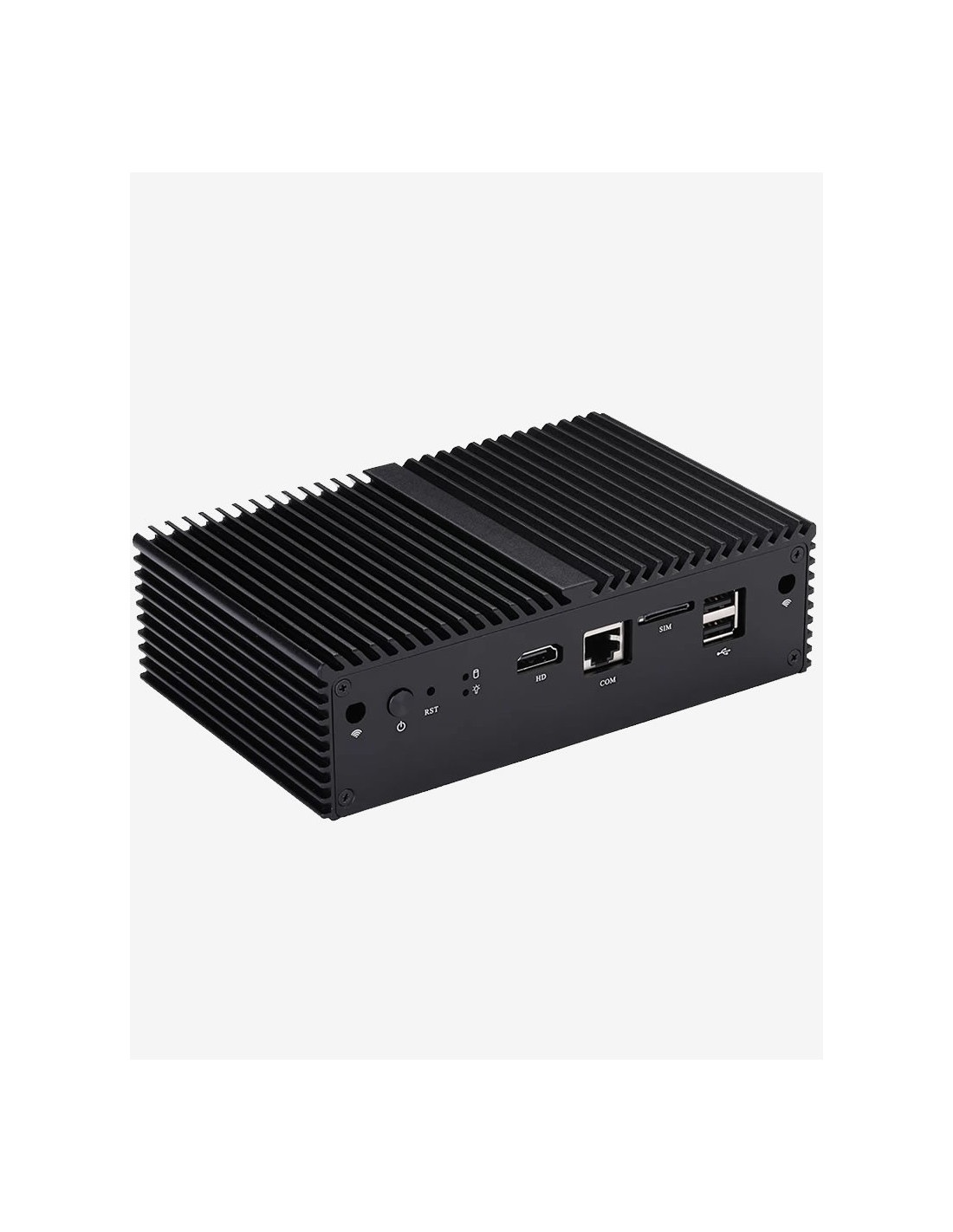

Appliance Firewall pfSense® Q1x J1900 4 Gigabit ports
Celeron J1900 Quad Core Processor / 2GB / 4 GbE / SSD 500GB
Installation benefit of pfSense® CE 2.6.x (Community Edition) included, Firewall ready to use.
SATA SSD disk support and WIFI card support - 1 standard SIM slot
4 customizable Gigabit ports (WAN / BACKUP / LAN / DMZ)
Fanless low consumption case (15W), no noise
Small footprint - EU format power supply - 1 Year Warranty Return To Workshop

Quantity
  In stock

pfSense or OPNsense Firewall Q1x 4 LAN

Appliance / Firewall Q1x

pfSense or OPNsense appliance

Windows/Linux Mini PC

IoT appliance

3CX appliance

4-port gigabit appliance



The Q1x Appliance is aFirewall box with an Intel x86 architectureand compatible with all Firewall OSes on the market. You can start the box on a USB key and install …

Compatible OS Firewall:

  • pfSense,
  • OPNsense,
  • Untangle,
  • IPFire,
  • Sophos,
  • Linux iptables,

Compatible OS Microsoft / Linux:

  • Windows 10,
  • FreeBSD,
  • Ubuntu,
  • Debian,
  • CentOS
  • Red Hat,

Compatible OS Router / IoT / Others:

  • VyOS,
  • 3CX,
  • OpenWrt,
  • Windows 10 IoT,
  • RIOT,
  • Contiki NG,
  • FreeRTOS

Celeron® J1900

4 core / 2 Ghz burst 2.7

DDR3L SO-DIMM

2GB / 4GB / 8GB

4 port

GIGABIT RJ45

Consolidate

1 Mini-PCI Express slot

1 Disk / SSD 2.5″

1 SIM + mPCIe slot

1 2230 M2 slot

Flexible PCIe expansion

HDMI output

Auto-boot Jumper

The Q1x box includes several mPCIe slots to support the installation of a WIFI card or a 4G LTE card and allow the backup of the main internet link.

HDMI connector to connect a screen.

Carte Intel® HD Graphics

A jumper on the motherboard allows the box to start automatically. This allows during a power outage to automatically start the Appliance when the power supply is restored. Important for security systems, monitoring, etc.

VESA-compatible

Blank packaging

Power supply

To allow the boxes to be used easily behind a screen, a VESA system is delivered with the screws.

The packaging box is free of any inscription. No identification possible.

The box can be delivered with a power cord for each country:

  • EU
  • UK
  • AU
  • US
  • CN
Q1x 4 LAN internal card

Quality internal card equipped :

  • 1 x DDR3L-SODIMM 1600Mhz 1.35V Non-ECC memory slot
  • Memory capacity 2GB / 4GB / 8GB Max
  • 1 Connector + SATA Power Supply
  • 1 x mPCIe slot for SSDs from 16GB to 2 TB,
  • 1 x mPCIe slot for WIFI card (Full size)
  • 1 x mPCIe slot for 4G card (Half Size)
  • 1x SIM Slot
  • 4 x Intel I211-AT Gigabit LAN
  • 1 x HD Video (HDMI)
  • 3 x USB2.0, 1 x USB3.0
  • HDD LED, Power LED
  • 1 x DC 12V Connector

Environmental characteristics:

  • Aluminum Alloy Case
  • Size 135 x 128 x 38mm
  • Weight 0.7 Kg
  • Cooling Type: Fanless
  • Operating temperature: 0°C – 50° Celsius
Environmental characteristics

Product Details

Data sheet

Model
Q1x
Operating system
pfSense® CE
CPU type
Intel® Celeron® J1900
Number of Cores / Threads
4C / 4T
CPU frequency
2.0 GHz - Burst 2.42 Ghz
Memory capacity
2GB
Memory type
DDR3L SODIMM
Number of memory slots
1 slot
Maximum memory capacity
8GB
Hardware Encryption Engine (AES-NI)
Oui
Number of disk bays
1
M.2 drive slot
No
Compatible disc type
miniPCIe mSATA
Hotswap disk
No
Installed disk capacity
512GB
PCIe Expansion
1 x mSATA + 1 x miniPCI express (one with SIM socket)
Number of USB Ports
1 x USB 3.0
3 x USB 2.0
Number of network ports
4 x 1GbE (RJ45)
Ethernet Chipset
Intel i211AT
WIFI / LTE card
None
SIM slot
Standard SIM
Output video
1 x VGA
Chipset video
Intel HD Graphics
Console Port
No
Size (Height x Width x Depth)
75 mm x 218 mm x 261 mm
Weight
0.95Kg
Mains input voltage
100V to 240V AC
Power frequency
50/60Hz, single phase
Manufacturer's warranty
1-Year hardware warranty
Audio
No
Color
Black
Brand
Qotom

Specific References

EAN13
3701446227774
MPN
Q1J1942500P

Quick Compare

Product
Firewall pfSense® Q1x J1900 4 Gigabit ports 2GB SSD 500GB Firewall pfSense Q1x J1900 4 Gigabit ports 2GB SSD 500GB Firewall pfSense® Q1x J1900 4 Gigabit ports 4GB SSD 500GB Firewall pfSense Q1x J1900 4 Gigabit ports 4GB SSD 500GB Firewall pfSense® Q1x J1900 4 Gigabit ports 4GB SSD 250GB Firewall pfSense Q1x J1900 4 Gigabit ports 4GB SSD 250GB Firewall pfSense® Q1x J1900 4 Gigabit ports 8GB SSD 250GB Firewall pfSense Q1x J1900 4 Gigabit ports 8GB SSD 250GB
Availability
Price
€385.00 -20% €308.00
€387.00 -20% €309.60
€377.00 -20% €301.60
€381.00 -20% €304.80
Description

Appliance Firewall pfSense® Q1x J1900 4 Gigabit ports
Celeron J1900 Quad Core Processor / 2GB / 4 GbE / SSD 500GB
Installation benefit of pfSense® CE 2.6.x (Community Edition) included, Firewall ready to use.
SATA SSD disk support and WIFI card support - 1 standard SIM slot
4 customizable Gigabit ports (WAN / BACKUP / LAN / DMZ)
Fanless low consumption case (15W), no noise
Small footprint - EU format power supply - 1 Year Warranty Return To Workshop

Appliance Firewall pfSense® Q1x J1900 4 Gigabit ports
Celeron J1900 Quad Core Processor / 4GB / 4 GbE / SSD 500GB
Installation benefit of pfSense® CE 2.6.x (Community Edition) included, Firewall ready to use.
SATA SSD disk support and WIFI card support - 1 standard SIM slot
4 customizable Gigabit ports (WAN / BACKUP / LAN / DMZ)
Fanless low consumption case (15W), no noise
Small footprint - EU format power supply - 1 Year Warranty Return To Workshop

Appliance Firewall pfSense® Q1x J1900 4 Gigabit ports
Celeron J1900 Quad Core Processor / 4GB / 4 GbE / SSD 250GB
Installation benefit of pfSense® CE 2.6.x (Community Edition) included, Firewall ready to use.
SATA SSD disk support and WIFI card support - 1 standard SIM slot
4 customizable Gigabit ports (WAN / BACKUP / LAN / DMZ)
Fanless low consumption case (15W), no noise
Small footprint - EU format power supply - 1 Year Warranty Return To Workshop

Appliance Firewall pfSense® Q1x J1900 4 Gigabit ports
Celeron J1900 Quad Core Processor / 8GB / 4 GbE / SSD 250GB
Installation benefit of pfSense® CE 2.6.x (Community Edition) included, Firewall ready to use.
SATA SSD disk support and WIFI card support - 1 standard SIM slot
4 customizable Gigabit ports (WAN / BACKUP / LAN / DMZ)
Fanless low consumption case (15W), no noise
Small footprint - EU format power supply - 1 Year Warranty Return To Workshop

Model
Q1x Q1x Q1x Q1x
Operating system
pfSense® CE pfSense® CE pfSense® CE pfSense® CE
CPU type
Intel® Celeron® J1900 Intel® Celeron® J1900 Intel® Celeron® J1900 Intel® Celeron® J1900
Number of Cores / Threads
4C / 4T 4C / 4T 4C / 4T 4C / 4T
CPU frequency
2.0 GHz - Burst 2.42 Ghz 2.0 GHz - Burst 2.42 Ghz 2.0 GHz - Burst 2.42 Ghz 2.0 GHz - Burst 2.42 Ghz
Memory capacity
2GB 4GB 4GB 8GB
Memory type
DDR3L SODIMM DDR3L SODIMM DDR3L SODIMM DDR3L SODIMM
Number of memory slots
1 slot 1 slot 1 slot 1 slot
Maximum memory capacity
8GB 8GB 8GB 8GB
Hardware Encryption Engine (AES-NI)
Oui Oui Oui Oui
Number of disk bays
1 1 1 1
M.2 drive slot
No No No No
Compatible disc type
miniPCIe mSATA miniPCIe mSATA miniPCIe mSATA miniPCIe mSATA
Hotswap disk
No No No No
Installed disk capacity
512GB 512GB 256GB 256GB
PCIe Expansion
1 x mSATA + 1 x miniPCI express (one with SIM socket) 1 x mSATA + 1 x miniPCI express (one with SIM socket) 1 x mSATA + 1 x miniPCI express (one with SIM socket) 1 x mSATA + 1 x miniPCI express (one with SIM socket)
Number of USB Ports
3 x USB 2.0
1 x USB 3.0
3 x USB 2.0
1 x USB 3.0
3 x USB 2.0
1 x USB 3.0
3 x USB 2.0
1 x USB 3.0
Number of network ports
4 x 1GbE (RJ45) 4 x 1GbE (RJ45) 4 x 1GbE (RJ45) 4 x 1GbE (RJ45)
Ethernet Chipset
Intel i211AT Intel i211AT Intel i211AT Intel i211AT
WIFI / LTE card
None None None None
SIM slot
Standard SIM Standard SIM Standard SIM Standard SIM
Output video
1 x VGA 1 x VGA 1 x VGA 1 x VGA
Chipset video
Intel HD Graphics Intel HD Graphics Intel HD Graphics Intel HD Graphics
Console Port
No No No No
Size (Height x Width x Depth)
75 mm x 218 mm x 261 mm 75 mm x 218 mm x 261 mm 75 mm x 218 mm x 261 mm 75 mm x 218 mm x 261 mm
Weight
0.95Kg 0.95Kg 0.95Kg 0.95Kg
Mains input voltage
100V to 240V AC 100V to 240V AC 100V to 240V AC 100V to 240V AC
Power frequency
50/60Hz, single phase 50/60Hz, single phase 50/60Hz, single phase 50/60Hz, single phase
Manufacturer's warranty
1-Year hardware warranty 1-Year hardware warranty 1-Year hardware warranty 1-Year hardware warranty
Audio
No No No No
Color
Black Black Black Black
Brand
Qotom Qotom Qotom Qotom
