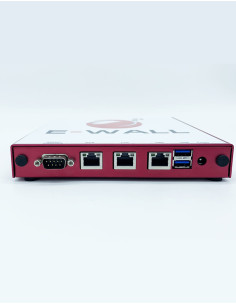

Firewall Appliance AP234 under pfSense CE 3 ports WIFI 4GB SSD 60GB
    E-WALL

    Firewall Appliance AP234 under pfSense CE 3 ports WIFI 4GB SSD 60GB

    Reference: AP23460WP
    €389.00
    Delivered within 24/48h

    Appliance Firewall AP234 3 ports WIFI, installed under pfSense® CE
    Pre-installed under pfSense® CE 2.6.x (Community Edition) included, Firewall ready to use.
    GX-412TC quad core processor / 4GB RAM
     / 3 Intel GigE / SSD 60GB
    2 miniPCI express / 1 mSATA - SATA / SSD disk support and WIFI card support
    3 customizable Gigabit ports (WAN / LAN / DMZ / WIFI) - WIFI Card Compex WLE200NX a/b/g/n
    AES-NI support for accelerating VPN encryption
    Low consumption fanless box (10W), no noise - Small footprint
    EU / UK format power supply - 1-Year workshop warranty

    Quantity
      In stock

    Product Details

    Data sheet

    Model
    AP2x
    Operating system
    pfSense® CE
    CPU type
    AMD GX-412TC
    Number of Cores / Threads
    4C / 4T
    CPU frequency
    1 GHz - Burst 1.4 Ghz
    Memory capacity
    4GB
    Memory type
    DDR3
    Number of memory slots
    0 Slot
    Maximum memory capacity
    4GB
    Hardware Encryption Engine (AES-NI)
    Oui
    Number of disk bays
    1
    M.2 drive slot
    No
    Compatible disc type
    miniPCIe mSATA
    Hotswap disk
    No
    Installed disk capacity
    60GB
    PCIe Expansion
    2 x miniPCI express (one with SIM socket)
    Number of USB Ports
    2 x USB 3.0
    Number of network ports
    3 x 1GbE (RJ45)
    Ethernet Chipset
    Intel i210AT
    WIFI standard
    802.11a/b/g/n
    WIFI / LTE card
    None
    SIM slot
    Standard SIM
    Output video
    None
    Chipset video
    None
    Console Port
    DB9
    Size (Height x Width x Depth)
    30mm x 157mm x 168mm
    Weight
    0.700 kg
    Mains input voltage
    100V to 240V AC
    Power frequency
    50/60Hz, single phase
    Manufacturer's warranty
    1-Year hardware warranty
    Brand
    E-WALL

    Specific References

    EAN13
    3760291202244

    Quick Compare

    Product
    Firewall Appliance AP234 under pfSense® CE 3 ports WIFI 4GB SSD 60GB Firewall Appliance AP234 under pfSense CE 3 ports WIFI 4GB SSD 60GB Firewall Appliance AP234 under OPNsense® 3 ports WIFI 4GB SSD 60GB Firewall Appliance AP234 under OPNsense 3 ports WIFI 4GB SSD 60GB
    Availability
    Price
    €389.00
    €389.00
    Description

    Appliance Firewall AP234 3 ports WIFI, installed under pfSense® CE
    Pre-installed under pfSense® CE 2.6.x (Community Edition) included, Firewall ready to use.
    GX-412TC quad core processor / 4GB RAM
     / 3 Intel GigE / SSD 60GB
    2 miniPCI express / 1 mSATA - SATA / SSD disk support and WIFI card support
    3 customizable Gigabit ports (WAN / LAN / DMZ / WIFI) - WIFI Card Compex WLE200NX a/b/g/n
    AES-NI support for accelerating VPN encryption
    Low consumption fanless box (10W), no noise - Small footprint
    EU / UK format power supply - 1-Year workshop warranty

    Appliance Firewall AP234 3 ports WIFI, installed under OPNsense®
    Pre-installed under OPNsense® 23.x included, Firewall ready to use.
    GX-412TC quad core processor / 4GB RAM
     / 3 Intel GigE / SSD 60GB
    2 miniPCI express / 1 mSATA - SATA / SSD disk support and WIFI card support
    3 customizable Gigabit ports (WAN / LAN / DMZ / WIFI) - WIFI Card Compex WLE200NX a/b/g/n
    AES-NI support for accelerating VPN encryption
    Low consumption fanless box (10W), no noise - Small footprint
    EU / UK format power supply - 1-Year workshop warranty

    Model
    AP2x AP2x
    Operating system
    pfSense® CE OPNsense®
    CPU type
    AMD GX-412TC AMD GX-412TC
    Number of Cores / Threads
    4C / 4T 4C / 4T
    CPU frequency
    1 GHz - Burst 1.4 Ghz 1 GHz - Burst 1.4 Ghz
    Memory capacity
    4GB 4GB
    Memory type
    DDR3 DDR3
    Number of memory slots
    0 Slot 0 Slot
    Maximum memory capacity
    4GB 4GB
    Hardware Encryption Engine (AES-NI)
    Oui Oui
    Number of disk bays
    1 1
    M.2 drive slot
    No No
    Compatible disc type
    miniPCIe mSATA miniPCIe mSATA
    Hotswap disk
    No No
    Installed disk capacity
    60GB 60GB
    PCIe Expansion
    2 x miniPCI express (one with SIM socket) 2 x miniPCI express (one with SIM socket)
    Number of USB Ports
    2 x USB 3.0 2 x USB 3.0
    Number of network ports
    3 x 1GbE (RJ45) 3 x 1GbE (RJ45)
    Ethernet Chipset
    Intel i210AT Intel i210AT
    WIFI standard
    802.11a/b/g/n 802.11a/b/g/n
    WIFI / LTE card
    None None
    SIM slot
    Standard SIM Standard SIM
    Output video
    None None
    Chipset video
    None None
    Console Port
    DB9 DB9
    Size (Height x Width x Depth)
    30mm x 157mm x 168mm 30mm x 157mm x 168mm
    Weight
    0.700 kg 0.700 kg
    Mains input voltage
    100V to 240V AC 100V to 240V AC
    Power frequency
    50/60Hz, single phase 50/60Hz, single phase
    Manufacturer's warranty
    1-Year hardware warranty 1-Year hardware warranty
    Brand
    E-WALL E-WALL
