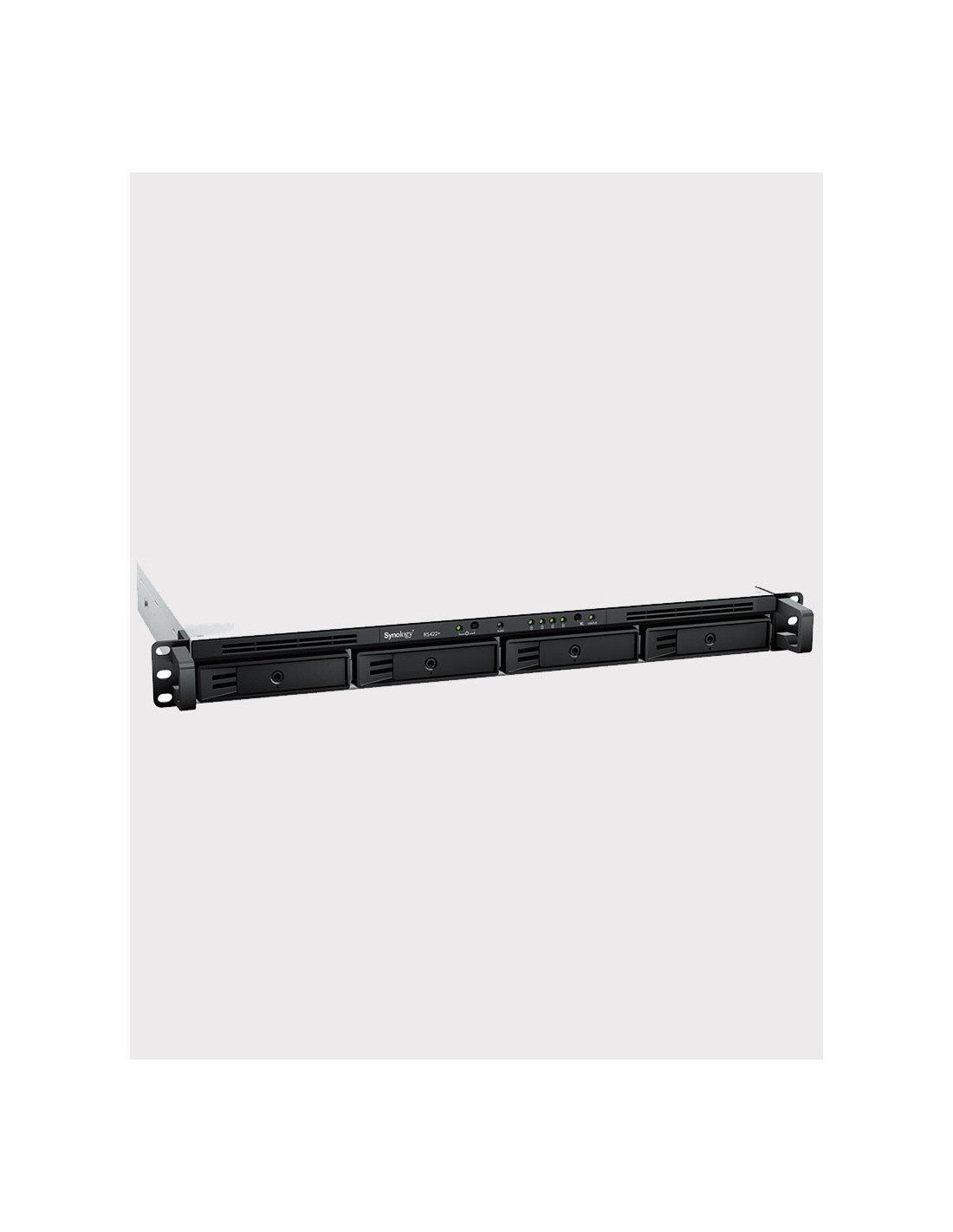

Synology RS422+ NAS Server Rack 1U 4-Bay IRONWOLF 24TB (4x6TB)
    Synology

    Synology RS422+ NAS Server Rack 1U 4-Bay IRONWOLF 24TB (4x6TB)

    Reference: RS422+SGIW24TB
    €1,286.00
    Delivered within 24/48h

    SYNOLOGY RackStation RS422+ 24TB Hard Disk Capacity
    Seagate IRONWOLF disks pre-installed and tested in the workshop. Ready to use!
    NAS 4-Bay 1U Rack
     - Internal Maximum Capacity 72 TB - 2GB DDR4 ECC memory
    2 GbE Ports - PCIe expansion slot 1xGen3 x2 - 1xport USB 3.2 Gen 1
    SATA 6Gb/s 2.5" or 3.5" Disk - SSD Support
    Product composition:
    RS422+ 4-slot 3.5" and/or 2.5" rackmount 1U NAS - 2GB of memory (3-Year Manufacturer Warranty)
    4 Seagate IRONWOLF 6TB drives (3-Year Manufacturer Warranty)

    Quantity
      In stock

    Synology RackStation RS422+

    RackStation RS422+

    Compact and versatile storage for home and office

    Streamline your data management experience

    With its compact 1U form factor and powerful Synology DiskStation Manager (DSM) operating system, the 4-bay Synology RackStation RS422+ is an affordable all-in-one solution for small businesses and home office looking to meet their daily data management, sharing, synchronization, and backup needs.

    CPU

    AMD Ryzen R1600

    2-core 2.6 (base) / 3.1 (turbo) GHz

    ECC Memory

    ECC DDR4 Memory

    2GB

    Network

    2 x 1GbE LAN ports

    Option 10GBE

    Performance

    More than 601/516 MB/s

    sequential read/write

    Scalability

    Synology Hybrid RAID, Basic, JBOD, RAID 0, 1, 5, 6 and 10

    Form Factor

    Depth of just 327.5 mm with handles

    Small footprint

    Compact and Versatile Storage for Streamlined Data Management

    Synology RackStation RS422+ is a 4-bay rackmount NAS enclosed in a compact 1U chassis. Powered by the powerful Synology DiskStation Manager (DSM) operating system, it offers an affordable all-in-one solution for data sharing, synchronization, and backup to small businesses and home lab owners looking to meet their daily data management needs

    Highlights

    • Dependable Performance
      Over 601/516 MB/s sequential read/write throughput supports stable data transfers
    • Compact Deployment
      Space-saving design with a depth of just 327.5 mm when server handles are installed
    • Redundant Connectivity
      Dual 1GbE ports support network failover and load balancing
    • Easy Network Upgrade
      Plug-and-play network upgrade modules make it easy to add 10GbE RJ-45 ports
    • Virtualization Ready
      Configure and run common virtual machines on your Synology NAS
    • Protect and Restore Data in a Snap
      Back up critical data and reduce your Recovery Time Objective (RTO) with Snapshot Replication.
    • Protect your physical assets with 24/7 monitoring
      Surveillance Station is feature-rich with easy-to-use management tools.

    Cross-platform file sharing

    Synology RS422+ supports a comprehensive set of network protocols for smooth file sharing experience across Windows, Mac®, and Linux® platforms. Windows AD and LDAP integration allows the RS422+ to fit quickly and easily into any existing environment, without the need to create identical user accounts. Cloud Sync keeps data stored in Dropbox, Google™ Drive, Microsoft OneDrive, Baidu and Box in sync with your personal DiskStation at home. Cloud Station Suite allows you to sync files between multiple devices : Windows PC, Mac, Linux, iOS and Android™ tablets or phones, allowing you to keep everything up to date effortlessly. The RS422+ combines smooth file sharing capability with enhanced security, even over the Internet and HTTPS, a built-in firewall, and multiple account and multiple IP intrusion auto-blocking mechanisms.

    Space-saving design for flexible deployment

    Thanks to its compact 1U chassis, the RS422+ fits perfectly in a 2-post or wall mount rack. Deploy it in space-limited environments or anywhere else without investing in costly railkits or other server equipment.

    Synology Rackspace
    Synology 10GBe

    Flexible networking options

    Leverage built-in connectivity to integrate the RS422+ into any IT environment, or expand its capabilities by adding plug-and-play modules.

    Built-in connectivity

    Dual Gigabit ports with support for network failover and load balancing deliver fast and dependable performance out of the box.

    Easy upgrade to 10GbE

    Add an E10G22-T1-Mini Network Upgrade Module through the easily accessible slot to instantly enable faster networking.

    Synology Extended Warranty

    Designed for Reliability, Backed by Synology

    RS422+ is designed to reliably store your data and is backed by a three-year hardware warranty from Synology. An optional two-year extended warranty is available in select regions, for up to five years of coverage. Learn more

    The different elements of RS422+

    • 1 Power Indicator
    • Power Button
    • Alert Indicator
    • Drive status indicator
    • Mute Button
    • Status Indicator
    • Drive Tray Locks
    • Drive tray
    RS422+ backpanel
    RS422+ backpanel
    • 9 Fans
    • 10 Power port
    • 11 1GbE RJ-45 Ports
    • 12 Console Port
    • 13 USB 3.2 Gen 1 Port
    • 14 Reset button
    • 15 Network Upgrade Slot
    Western Digital Logo
    Seagate Logo
    Seagate Logo

    Our NAS servers equipped with ready-to-use professional disks!

    Our entire range of NAS servers is equipped with professional hard drives. The disks are installed by our technical teams, the NAS is tested on the network before shipment, to allow faster installation in the company.

    The different discs available:

    • Seagate IRONWOLF
    • Seagate SKYHAWK
    • Toshiba N300
    • Synology SSD SAT5200 / HDD HAT5300

    Product Details

    Data sheet

    Model
    Synology RackStation RS422+
    CPU type
    AMD Ryzen R1600
    Number of CPU sockets
    1
    Number of Cores / Threads
    2C / 2T
    CPU frequency
    2.6 GHz - Burst 3.1 Ghz
    Memory capacity
    2GB
    Memory type
    DDR4 ECC
    Number of memory slots
    0 Slot
    Maximum memory capacity
    2GB
    Hardware Encryption Engine (AES-NI)
    Non
    Number of disk bays
    4
    Maximum number of disk bays with extension
    4
    M.2 drive slot
    No
    Compatible disc type
    2.5" SATA SSD
    3.5" SATA HDD
    Hotswap disk
    Oui
    Installed disk capacity
    24TB
    Disk model installed
    Seagate IRONWOLF
    Disk interface
    Serial ATA 6Gb/s (SATA Revision 3)
    Supported RAID type
    JBOD
    RAID 0
    RAID 1
    SHR
    Supported file system
    BTRFS
    EXT3
    EXT4
    FAT
    HFS+
    NTFS
    Number of expansion ports
    None
    Scalable
    No
    PCIe Expansion
    1 x Gen3 x2
    Number of USB Ports
    1 x USB 3.2 Gen 1*
    Number of network ports
    2 x 1GbE (RJ45)
    Size (Height x Width x Depth)
    44 mm x 478 mm x 327.5 mm
    Weight
    4.38 kg
    Sound level
    28.5 dB(A)
    Mains input voltage
    100V to 240V AC
    Power frequency
    50/60Hz, single phase
    Color
    Black
    White
    Brand
    Synology

    Specific References

    EAN13
    3701446219663
