Firewall pfSense Q1x J1900 4 Gigabit ports 4GB SSD 16GB
In stock
€362.00
Delivered within 24/48h

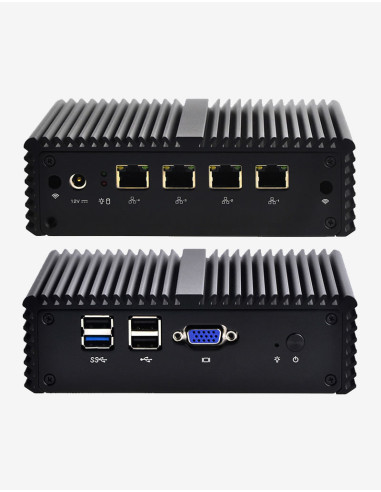

Appliance Firewall pfSense® Q1x J1900 4 Gigabit ports
Celeron J1900 Quad Core Processor / 4GB / 4 GbE / SSD 16GB

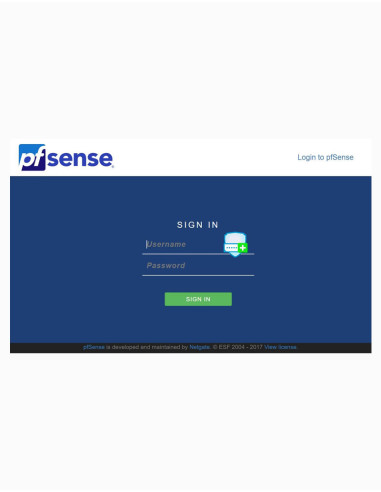

Installation benefit of pfSense® CE 2.6.x (Community Edition) included, Firewall ready to use.
SATA SSD disk support and WIFI card support - 1 standard SIM slot
4 customizable Gigabit ports (WAN / BACKUP / LAN / DMZ)
Fanless low consumption case (15W), no noise
Small footprint - EU format power supply - 1 Year Warranty Return To Workshop
Appliance / Firewall Q1x
pfSense or OPNsense appliance
Windows/Linux Mini PC
IoT appliance
3CX appliance
4-port gigabit appliance
The Q1x Appliance is aFirewall box with an Intel x86 architectureand compatible with all Firewall OSes on the market. You can start the box on a USB key and install …
Compatible OS Firewall:
- pfSense,
- OPNsense,
- Untangle,
- IPFire,
- Sophos,
- Linux iptables,
- …
Compatible OS Microsoft / Linux:
- Windows 10,
- FreeBSD,
- Ubuntu,
- Debian,
- CentOS
- Red Hat,
- …
Compatible OS Router / IoT / Others:
- VyOS,
- 3CX,
- OpenWrt,
- Windows 10 IoT,
- RIOT,
- Contiki NG,
- FreeRTOS
- …
Celeron® J1900
4 core / 2 Ghz burst 2.7
DDR3L SO-DIMM
2GB / 4GB / 8GB
4 port
GIGABIT RJ45
1 Mini-PCI Express slot
1 Disk / SSD 2.5″
1 SIM + mPCIe slot
1 2230 M2 slot
Flexible PCIe expansion
HDMI output
Auto-boot Jumper

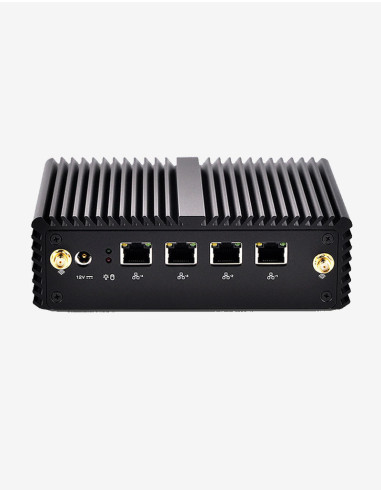

The Q1x box includes several mPCIe slots to support the installation of a WIFI card or a 4G LTE card and allow the backup of the main internet link.
HDMI connector to connect a screen.
Carte Intel® HD Graphics
A jumper on the motherboard allows the box to start automatically. This allows during a power outage to automatically start the Appliance when the power supply is restored. Important for security systems, monitoring, etc.
VESA-compatible
Blank packaging
Power supply
To allow the boxes to be used easily behind a screen, a VESA system is delivered with the screws.
The packaging box is free of any inscription. No identification possible.
The box can be delivered with a power cord for each country:
- EU
- UK
- AU
- US
- CN

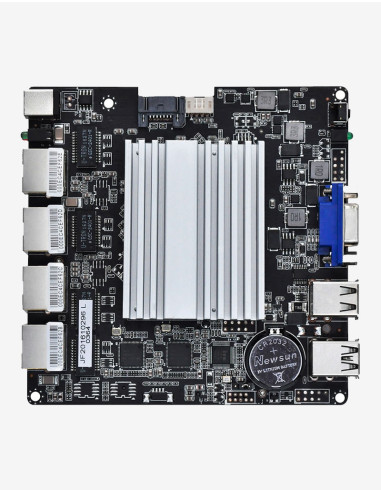

Quality internal card equipped :
- 1 x DDR3L-SODIMM 1600Mhz 1.35V Non-ECC memory slot
- Memory capacity 2GB / 4GB / 8GB Max
- 1 Connector + SATA Power Supply
- 1 x mPCIe slot for SSDs from 16GB to 2 TB,
- 1 x mPCIe slot for WIFI card (Full size)
- 1 x mPCIe slot for 4G card (Half Size)
- 1x SIM Slot
- 4 x Intel I211-AT Gigabit LAN
- 1 x HD Video (HDMI)
- 3 x USB2.0, 1 x USB3.0
- HDD LED, Power LED
- 1 x DC 12V Connector
Environmental characteristics:
- Aluminum Alloy Case
- Size 135 x 128 x 38mm
- Weight 0.7 Kg
- Cooling Type: Fanless
- Operating temperature: 0°C – 50° Celsius
- Model
- Q1x
- Operating system
- pfSense® CE
- CPU type
- Intel® Celeron® J1900
- Number of Cores / Threads
- 4C / 4T
- CPU frequency
- 2.0 GHz - Burst 2.42 Ghz
- Memory capacity
- 4GB
- Memory type
- DDR3L SODIMM
- Number of memory slots
- 1 slot
- Maximum memory capacity
- 8GB
- Hardware Encryption Engine (AES-NI)
- Oui
- Number of disk bays
- 1
- M.2 drive slot
- No
- Compatible disc type
- miniPCIe mSATA
- Hotswap disk
- No
- Installed disk capacity
- 16GB
- PCIe Expansion
- 1 x mSATA + 1 x miniPCI express (one with SIM socket)
- Number of USB Ports
- 1 x USB 3.0
3 x USB 2.0 - Number of network ports
- 4 x 1GbE (RJ45)
- Ethernet Chipset
- Intel i211AT
- WIFI / LTE card
- None
- SIM slot
- Standard SIM
- Output video
- 1 x VGA
- Chipset video
- Intel HD Graphics
- Console Port
- No
- Size (Height x Width x Depth)
- 75 mm x 218 mm x 261 mm
- Weight
- 0.95Kg
- Mains input voltage
- 100V to 240V AC
- Power frequency
- 50/60Hz, single phase
- Manufacturer's warranty
- 1-Year hardware warranty
- Audio
- No
- Color
- Black
- Brand
- Qotom
Q1J194416P
3701446228122
